Using the APP Recorder 6-35
To View the Trace File for the APP Recorder
In the APP Recorder window, from the Maintenance menu, point to Trace Files and click Show
Trace File.
The trace file for the APP Recorder appears.
To View the Trace File for the APP Driver
In the APP Recorder window, from the Maintenance menu, point to Trace Files and click Show
Driver Trace File.
The trace file for the APP Driver appears.
To View the All Trace (ATrace) File
In the APP Recorder window, from the Maintenance menu, point to Trace Files and click Show All Trace
File.
The trace file for the APP Driver appears.
6.11.2 Running a Diagnostic Test and Viewing Results
Each APP Recorder does an automatic diagnostic test every 5 minutes. In addition, you can initiate a
manual diagnostic test against the APP Recorder and view the results.
Note: You can also run a diagnostic test from within the APP Driver window and from the
master station.
To Run a Diagnostic Test and View Results
1. In the APP Recorder window, from the Maintenance menu, point to Diagnostic and click one of
the following:
Click Show Result to view the results of the last diagnostic test that was completed.
Click Redo Diagnostic to perform a new diagnostic test and view its results. Show Result.
The Recorder Diagnostic Results window appears.

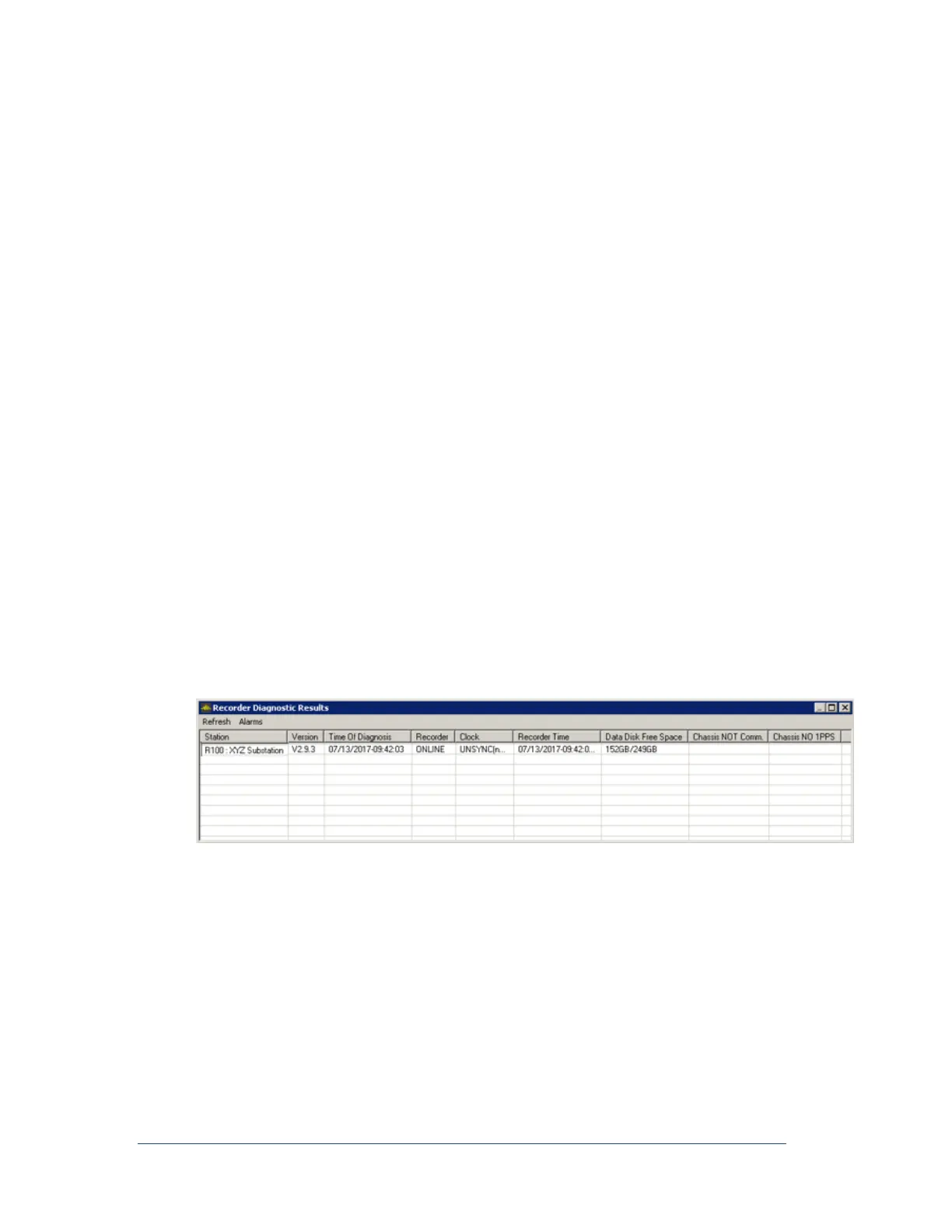

Figure 40: Recorder Diagnostic Results Window
2. To see the details of an entry, double-click its name in the list.
3. To see the latest diagnostic results, from the menu bar, click Refresh.
4. To see which alarms are currently ON, from the menu bar, click Alarms.
The Alarms dialog box displays the alarms.
5. To close the Recorder Diagnostic Results window, click the X in the upper right-hand corner.
