Using the APP Recorder 6-37
To Perform a Test Run
In the APP Recorder window, from the Maintenance menu, click Test Run.
The system immediately responds. The fault will appear on the screen. You can also, start a test run by
pressing F12 anytime except when offline like when the Oscope is being displayed.
6.11.5 Viewing the ON Alarms
You can view a list of the alarms that are currently turned on.
To View the ON Alarms
In the APP Recorder window, from the Maintenance menu, click Show Alarm ON List.
The Alarms Currently On window appears.

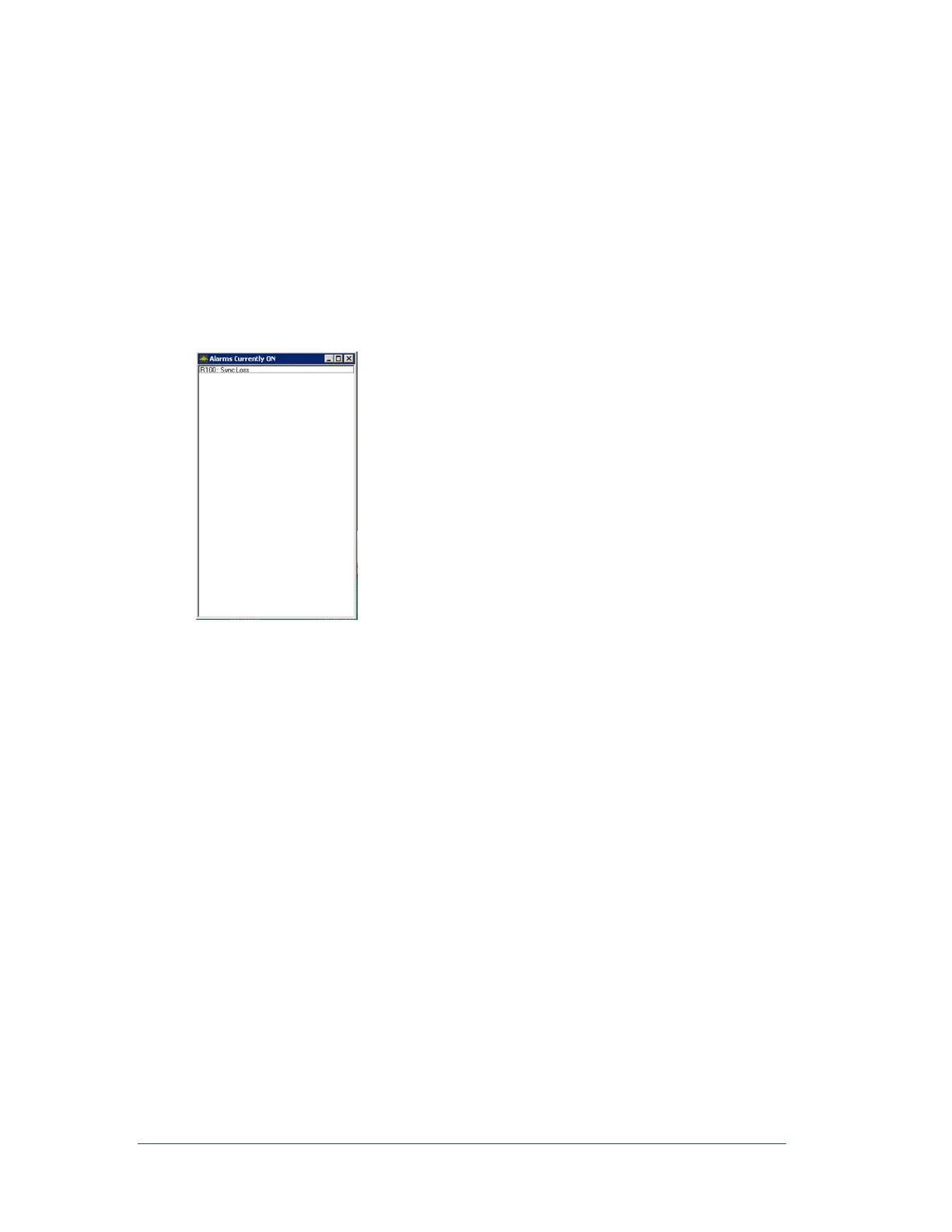

Figure 42: Alarms Currently ON Window
6.11.6 Resetting FID
As each fault record is created the Fault Identification number, or FID, is incremented by one. If the
extended recording feature is enabled in the Point Assignment Record (General Settings tab: Sampling
tab), a single trigger will create two new FID numbers, one FID for the transient record and one FID for the
extended records.
At any time, you can reset the Fault Identification number to 1. You may want to do this to clean up any
old records.
Note: An old record with the same FID as newly created record will not be overwritten due to
date and time difference.
Resetting the FID causes the APP Recorder Program to re-initialize
and the APP Recorder to go offline for a few moments.
To Reset the FID
1. In the APP Recorder window, from the Maintenance menu, click Reset FID.
2. Enter the password
3. Click ok
