17Startup
3. Start up
This chapter describes names and functions of the front panel, rear panel, and screen
display and provides the basic procedures for operating AT281x.
Front panel summary
Rear panel summary
Power On/Off
Connect to Device under Test

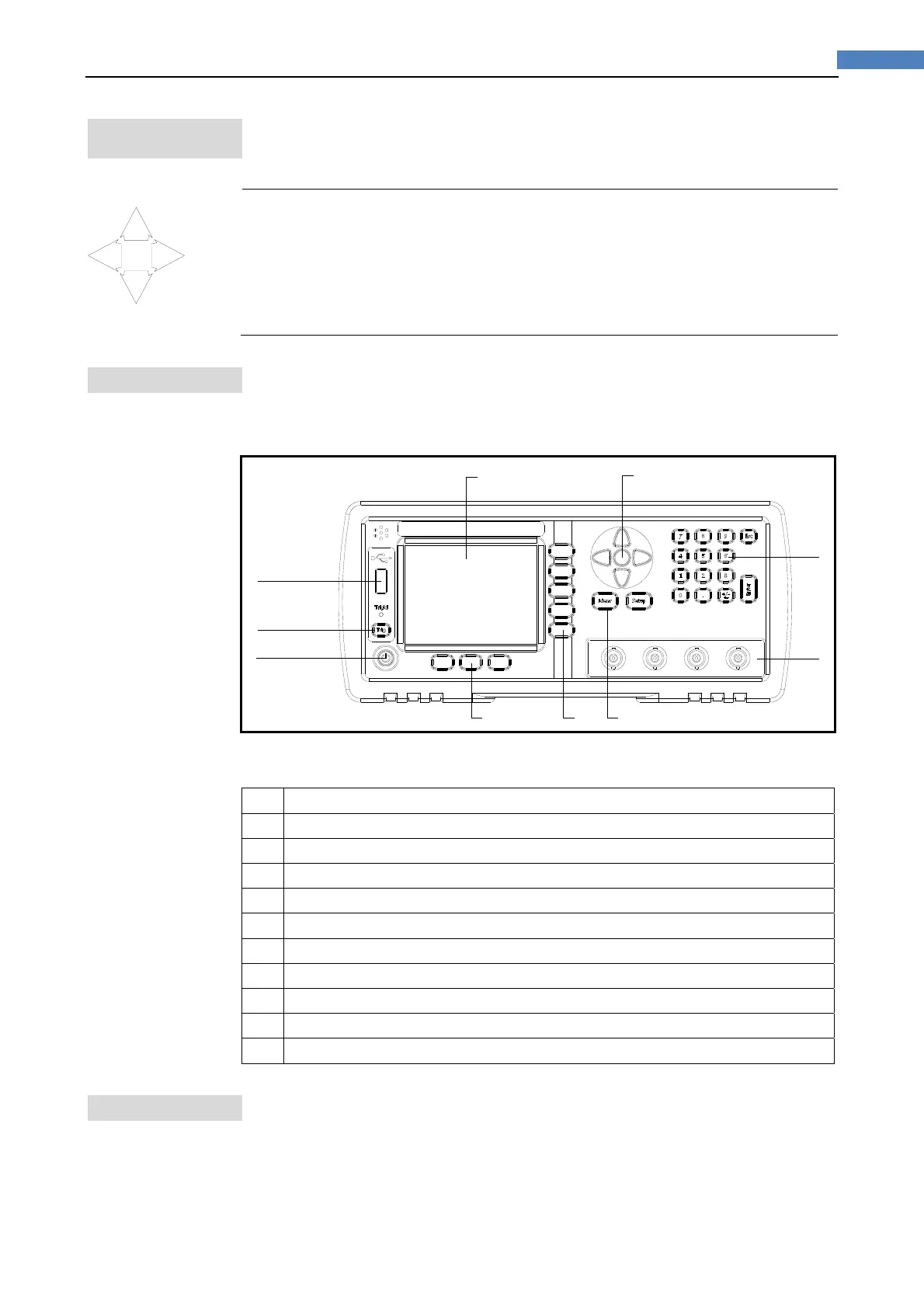

3.1 Frontpanel
Figure3‐1 Frontpanel
2
3
1
4
5
6
8
9
7
10
Table3‐1 Frontpaneldescription
No. Description
1 USB Disk Port (USB-Host)
2 Trigger Key
3 Power Switch
4 System Key (Include File, System and Key Lock)
5 Soft Key
6 Menu key
7 UNKNOWN Terminal
8 Entry Key
9 Cursor Key
10 LCD Display
3.2 RealPanel
Figure3‐2 RealPanel
