73Command Reference
IAC}
Please refer to Page 33 Sector 5.1.5 Monitor 1 and Monitor 2 [MON
1][MON 2].
Example
SEND> FUNC:MON1 Z<NL>
Query Syntax
FUNC:MON1?
FUNC:MON2?
Query Response
{off, Z, D, Q, THR, THD, R, X, G, B, Y, ABS, PER VAC, IAC}
Example
SEND> FUNC:MON1?<NL>
RET> off<NL>
11.8 FREQuencySubsystem
The FREQuency command sets the oscillator frequency. The FREQuency? Query
returns the current test frequency setting.

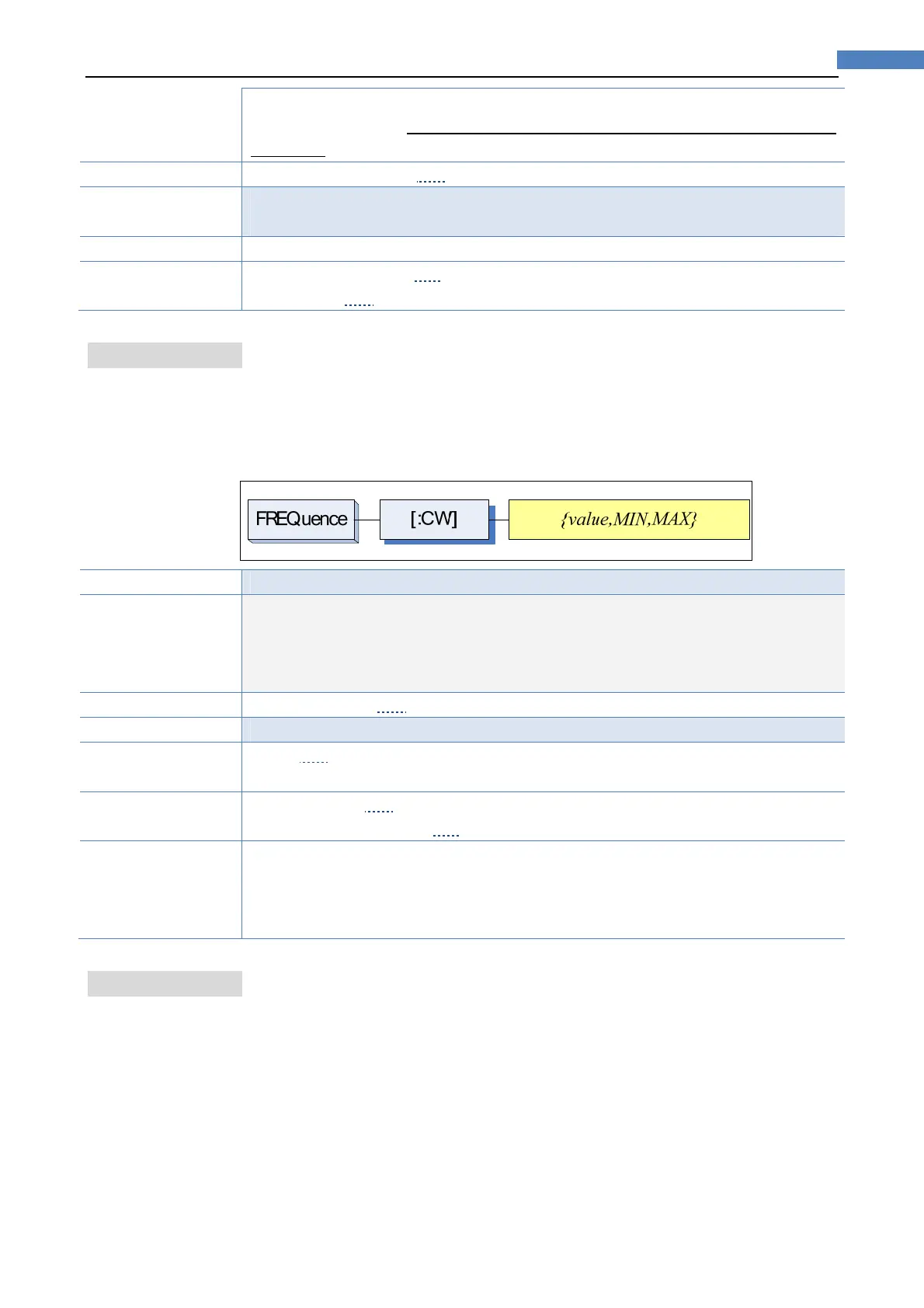

Figure11‐4 FREQSubsystemCommandTree
Command Syntax
FREQ[:CW] {<value>,MIN,MAX}
Parameter
Where,
<value> is the numeric data (NR1 integer, NR2 fix float or NR3 floating point).
MIN Sets to the minimum value
MAX Sets to the maximum value
Example
SEND> FREQ 1K<NL> //Set to 1kHz,the Hz cannot be added.
Query Syntax
FREQ[:CW]?
Query Response
<NR3><NL>
NR3 floating point
Example
SEND> FREQ?<NL>
RET> 1.000000E+03<NL>
Note
A suffix multiplier (k) can be used with this command. But the suffix unit Hz can’t be
used.
This command CANNOT be used in LIST SWEEP DISPLAY page and CORRECTION
page.
11.9 VOLTageSubsystem
The VOLTage subsystem sets the oscillators output voltage level and source output
Impedance.
Figure11‐5 VOLTageSubsystemCommandTree
