AT2818/2816A/2816B/2817A/2817/810A User's Guide
0.3V
1.0V
Table4‐15 TestvoltageLevelthatcanbesetwithINCR++/DECR‐
INCR++/DECR-- (V)
0.01 0.10 0.30 0.50 1.00 1.50 2.00
Table4‐16 TestvoltageLevelthatcanbesetwithINCR+/DECR‐
INCR+/INCR- (V)
0.01 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9
2.0
4.1.6 MeasurementSpeed[SPEED]
SLOW, MED 1, MED 2 and FAST can be selected for AT281x.
SLOW mode will result in more stable and accurate measurement result.
Procedure for setting measurement speed mode
Step 1. Press the [Meas] key
Step 2. Use the cursor key to select [SPEED] field
Step 3. Use the soft keys to set measurement speed
Soft key Function
SLOW
MED 1
MED 2
FAST
4.2 <BINNo.DISPLAY>Page
When press [Meas] key and [BIN No.] soft key, the <BIN No. DISPLAY> page appears.
The bin sorting results are displayed in larger characters while the measurement results
are shown in normal characters.

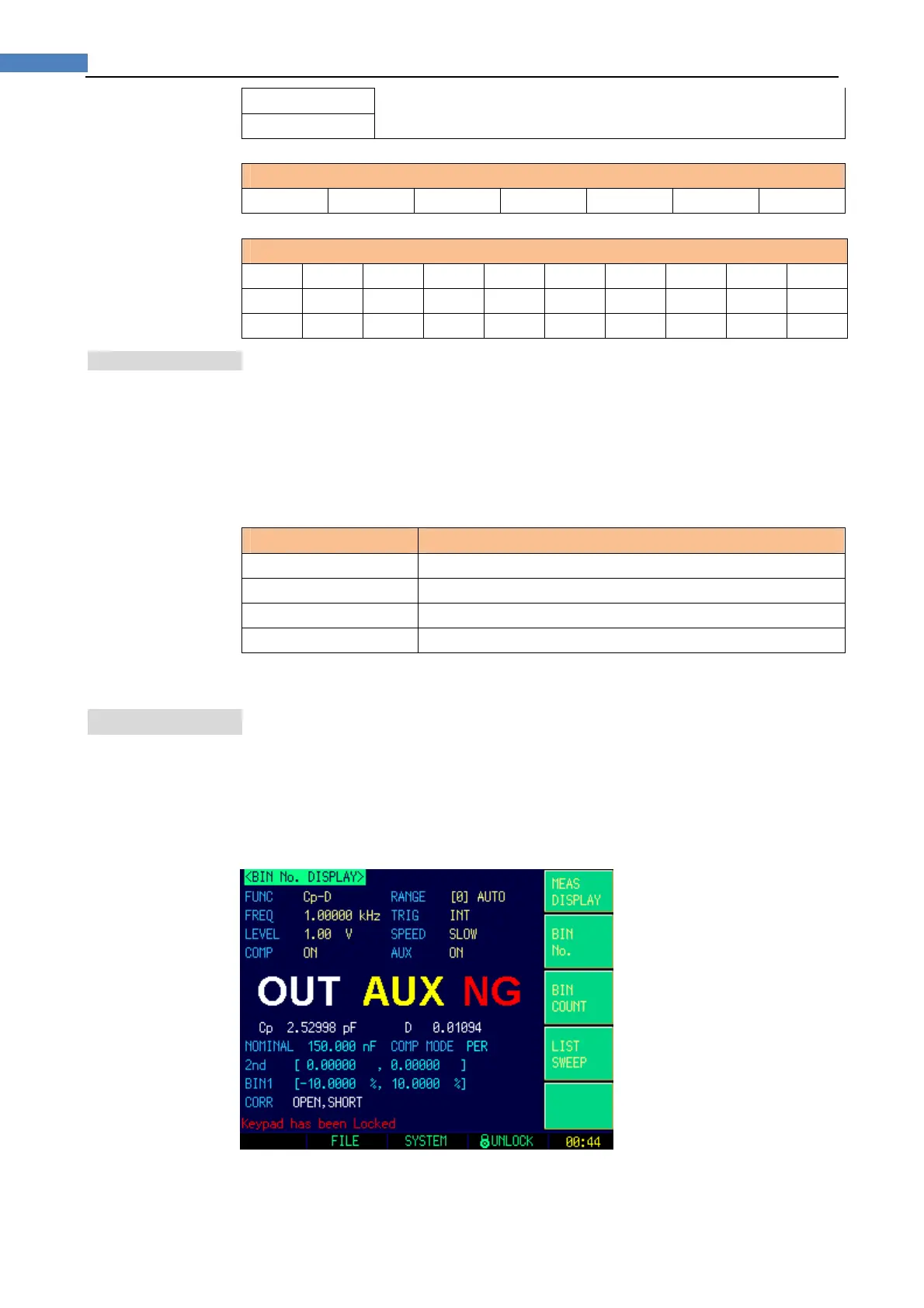

Figure4‐2 <BINNo.DISPLAY>page
This page provides the following information:
FUNC, RANGE, FREQ, LEVEL, TRIG, LEVEL, SPEED: These conditions can
