AT2818/2816A/2816B/2817A/2817/810A User's Guide

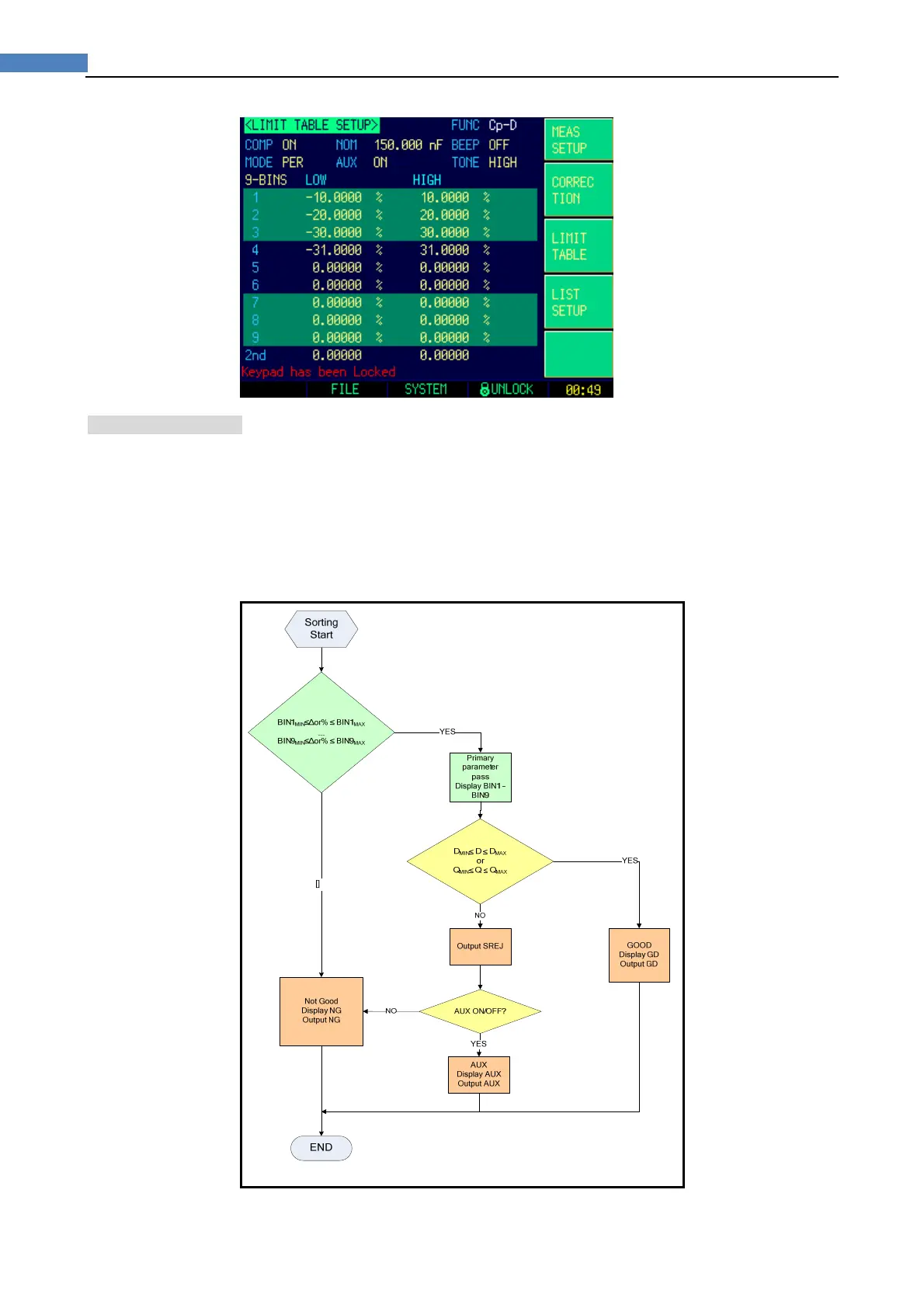

Figure5‐5 <LIMITTABLESETUP>Page
5.3.1 ComparatorFunctionON/OFF
AT281x’s built-in comparator can sort devices into a maximum of 10 bins (BIN1 to
BIN9 and OUT) using a maximum of nine pairs of primary parameter limits and one
pair of secondary parameter limits.
A device which primary parameter is within limits, but secondary parameter is not, can
be sorted into an auxiliary BIN (AUX).
Figure5‐6 ComparatorWorkflow
Procedure for setting the comparator function [COMP]
