84
AT2818/2816A/2816B/2817A/2817/810A User's Guide
Example
SEND> CORR:SPOT:LOAD 1<NL>
11.14.8.1 CORRection:SPOT:L OAD:STANdard
This command sets the reference values of the standard at the specified frequency
point(FREQ1,FREQ2 or FREQ3).
Command Syntax
CORRection:SPOT:LOAD:STANdard <n>,<REF.A>,<REF.B>
Parameter
Where, <n>,<REF.A>,<REF.B> is:
n NR1(1,2 or 3):Spot number
REF.A NR1,NR2 or NR3:Primary parameters reference value of the standard.
REF.B NR1,NR2 or NR3:Secondary parameters reference value of the standard.
A suffix multiplier can be used with this command.
Example
SEND> CORR:SPOT:LOAD:STAN 1,100.5,0.0004<NL>
Query Syntax
CORRection:SPOT:LOAD:STANdard? <n>
Parameter
Where, <n> is:
n NR1(1,2 or 3):Spot number
Query Response
<NR3:REF.A value>,<NR3:REF.B value>
Example
SEND> CORR:SPOT:LOAD:STAN? 1<NL>
RET> 1.005000E+00,4.000000E-04<NL>
11.15 TRIGgerSubsystem
The TRIGger subsystem command group is used to enable a measurement or a sweep
measurement, and to set the trigger mode.

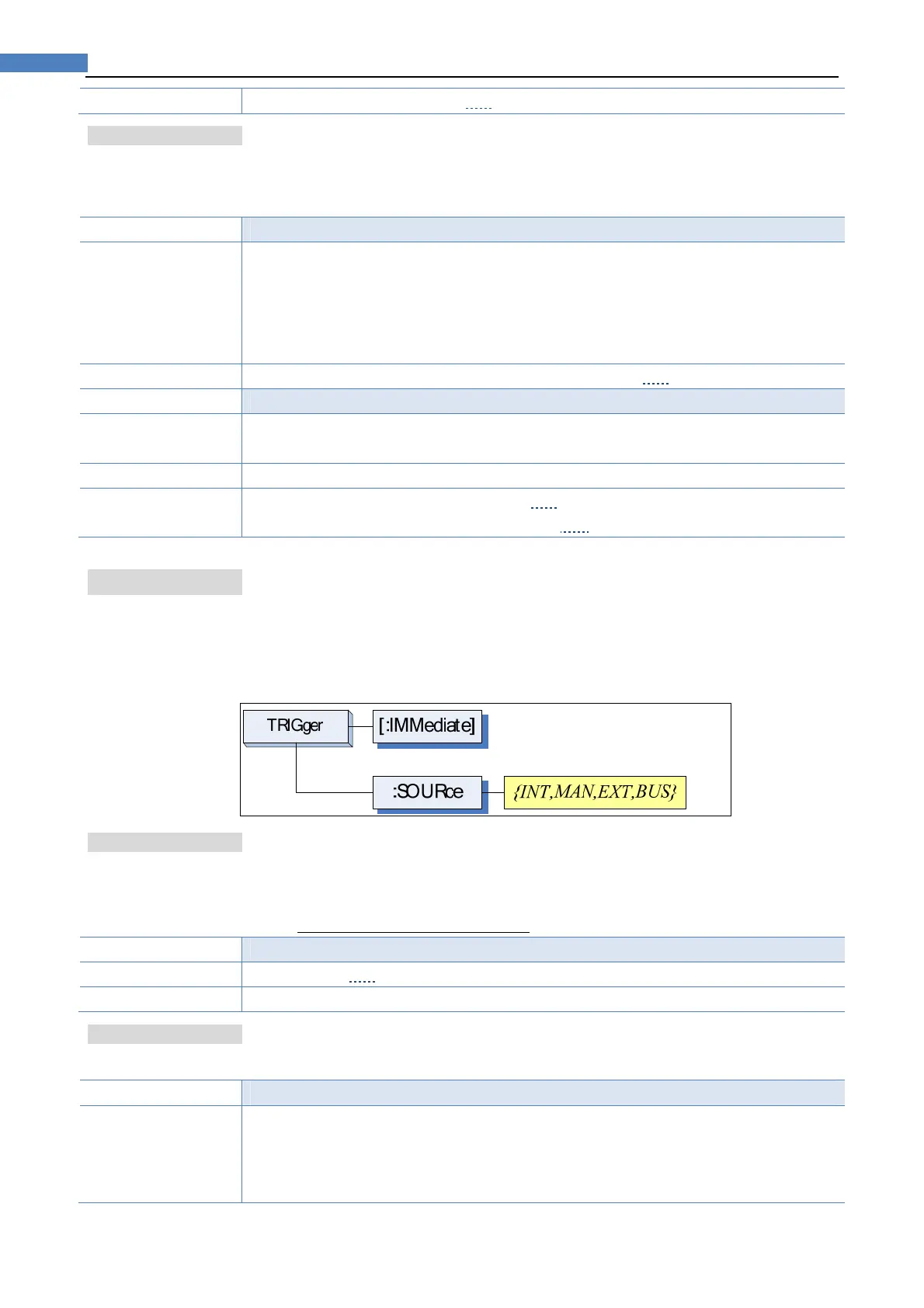

Figure11‐11 TRIGgerSubsystemCommandTree
11.15.1 TRIGger[:IMMediate]
The TRIGger:IMMediate command causes the trigger to execute a measurement or a
sweep measurement, regardless of the trigger state.
Refer to Page 14 Sector 2.2.5 Trigger Mode.
Command Syntax
TRIGger[:IMMediate]
Example
SEND> TRIG<NL>
Note
This command can be ONLY used in BUS trigger mode.
11.15.2 TRIGger:SOURce
The TRIGger:SOURce command sets the trigger mode.
Command Syntax
TRIGger:SOURce {INT,MAN,EXT,BUS}
Parameter
Where, {INT,MAN,EXT,BUS} is
INT Internal Trigger Mode
MAN Manual Trigger Mode
EXT External Trigger Mode
