27[Meas] Key
be set from <MEAS DISPLAY> page.
Comparator function ON/OFF [COMP]
Auxiliary bin ON/OFF [AUX]
4.2.1 ComparatorFunctionON/OFF
AT281x’s built-in comparator can sort devices into a maximum of 10 bins (BIN1 to
BIN9 and OUT) using a maximum of nine pairs of primary parameter limits and one
pair of secondary parameter limits.
A device which primary parameter is within limits, but secondary parameter is not, can
be sorted into an auxiliary BIN (AUX).

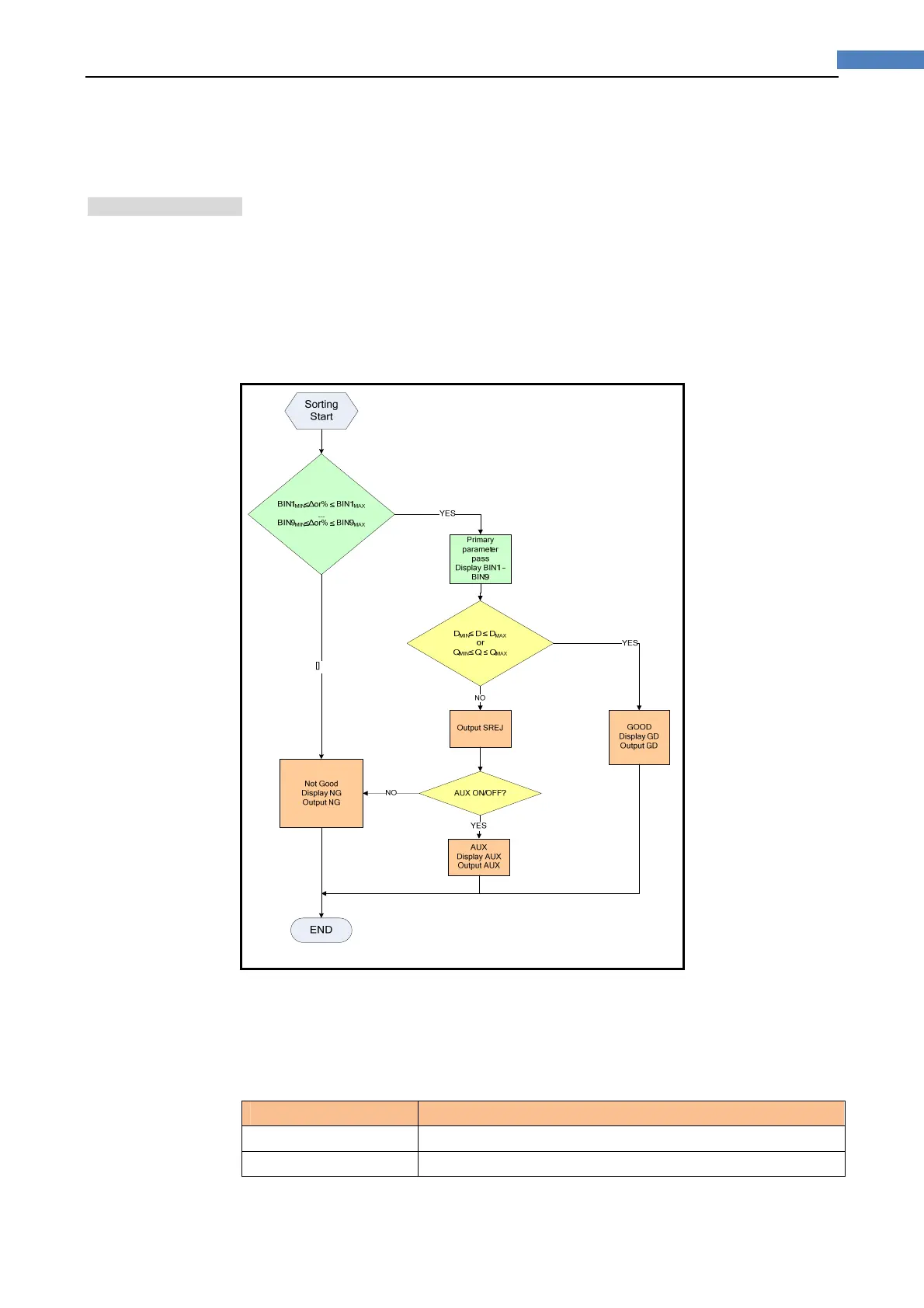

Figure4‐3 ComparatorWorkflow
Procedure for setting the comparator function [COMP]
Step 1. Press the [Meas] key
Step 2. Press the <MEAS DISPLAY> soft key
Step 3. Use the cursor key to select [COMP] field
Step 4. Use the soft keys to turn on/off the comparator
Soft key Function
ON
OFF
To Next Page
