4-2
Instruments and Programming
X6 - P/N 6525032M1
Buttons
The instrument panel has 4 buttons.
5 - Enter: to go to the required menu
6 - Esc - Home: to quit
7 - Left-hand - High: left arrow
8 - Right - down. right arrow
This buttons allow the operator to:
- navigate in the work menu
- enter the programming menu
- navigate in the programming menu
- change values in the programming menu
5 6 7 8

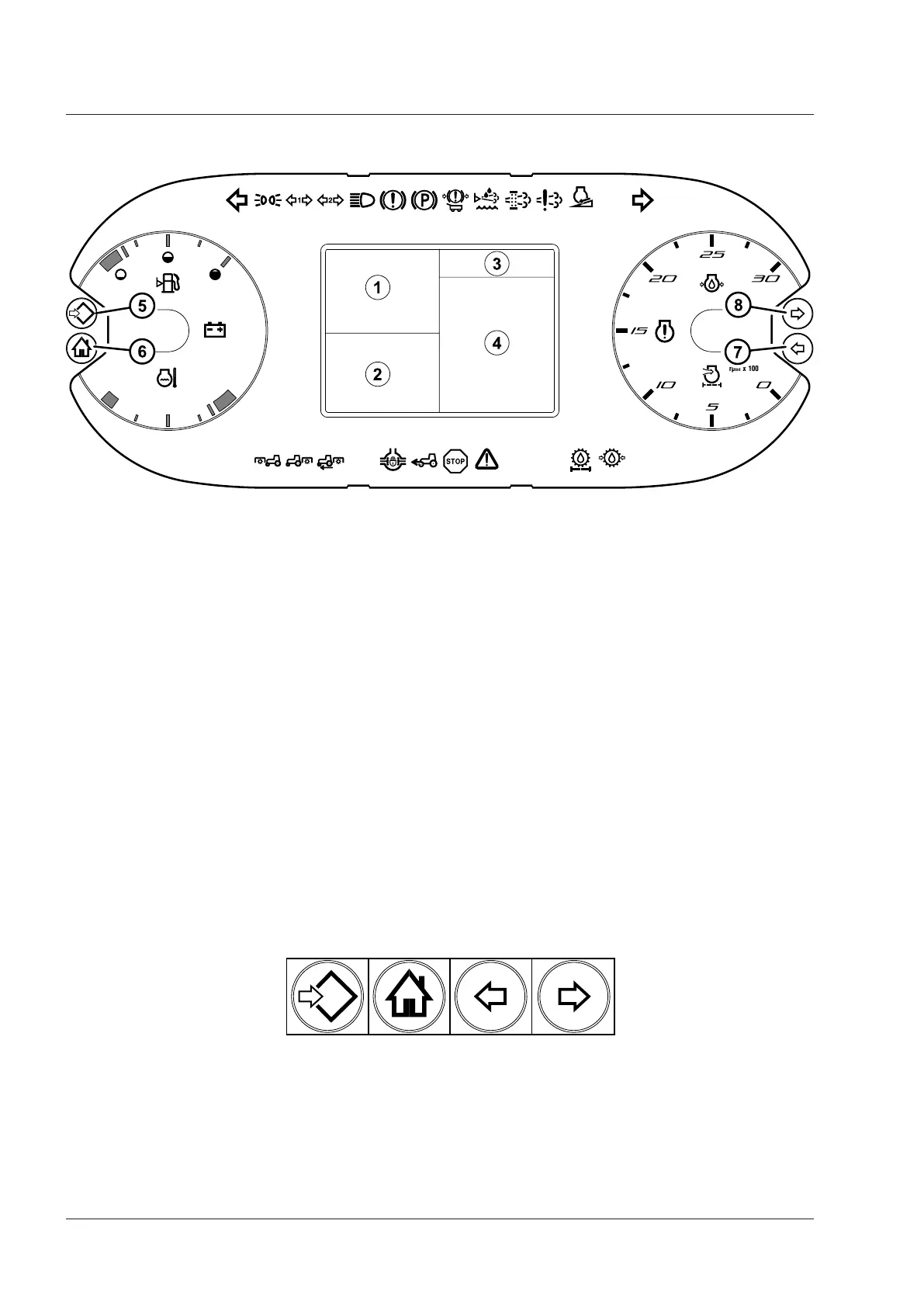

The main digital display DMD Dot Matrix Display is divided
into work areas:
1 - Transmission
2 - Power take-off
3 - Browsing menu
4 - Operator menu
Warning buzzer - Buzzer
The buzzer starts operating as a warning. The buzzer has
two sound level:
1 - Low level for low priority.
2 -
high intermittent level for high priority level.
NOTE: The loudness of the buzzer should change ac-
cording to engine rated speed. Otherwise, please con-
tact your Argo Tractors Dealer.
Instrument panel
