50 HOUR MAIN SERVICE
WARNING: If you need to open the bonnet, follow the procedure indicated under "How to open the bonnet".
WARNING: Always use the specific PPE for the operation concerned.
WARNING: Maintenance operations must be carried out when the engine is off. Make sure that the hand brake is
engaged and the key is not inserted in the dashboard.
WARNING: Beware of burns caused by hot tractor and engine parts. [4.1.n]
STEP 24A
Oil level in axle and front final drives (suspended axle)
NOTE:for oil specifications, refer to the Lubricants and Fuel chart in section 9 of this manual.
To check the planetary oil level, park the tractor on level
ground.
Turn the wheel hub until the plug (4) is in the 3 or 9 o'clock
position.
Remove the plug and check the oil level. The oil must be
level with the bottom of the plug hole, add the recom-
mended oil type to the correct level if required. Install the
plug and tighten.
To check the differential oil level, put the tractor on level
ground. Remove the fill/level plug (1).
The oil must be level with the bottom edge of the hole.
Add the recommended oil type to raise the oil to the cor-
rect level if required. Fit the plug and tighten to a torque
of about 60 Nm.
1
WARNING: Before carrying out any servic-
ing on tractors equipped with independent
front suspension, make sure the axle is fully
lowered to the bottom mechanical stop, the
engine is not running and the keyswitch is in
the OFF position. Failure to do this may result
in serious injury.

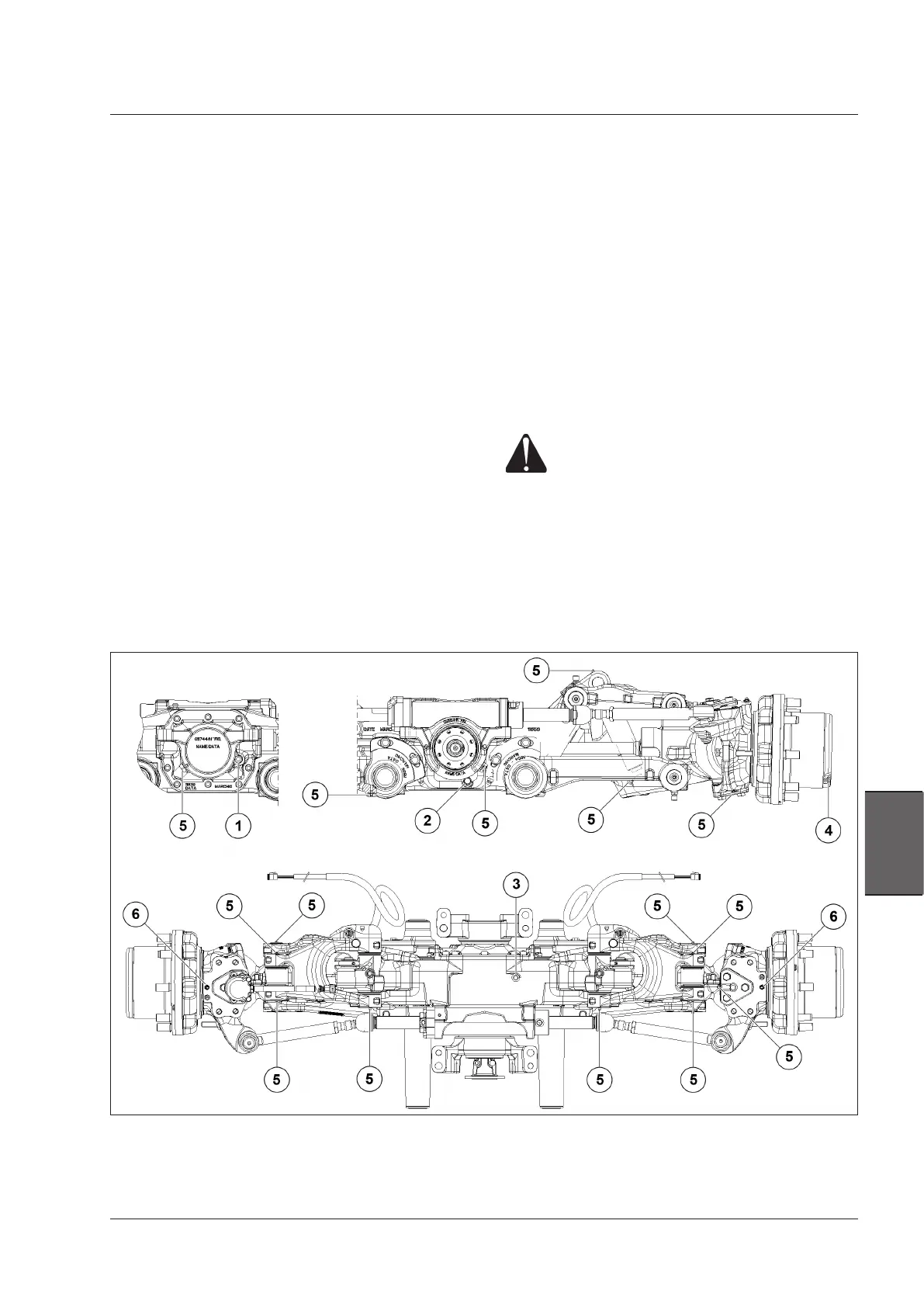

1. Differential oil fill plug and level
2. Differential oil drain plug
3. Oil breather
4. Epicyclical final drive fill, level and drain plug
5. Greasing point
6. Brake system bleeding
