Operation
5-37
5
P/N 6525032M1 - X6
Adjustment of max. steering angle
(setup with rigid axle)

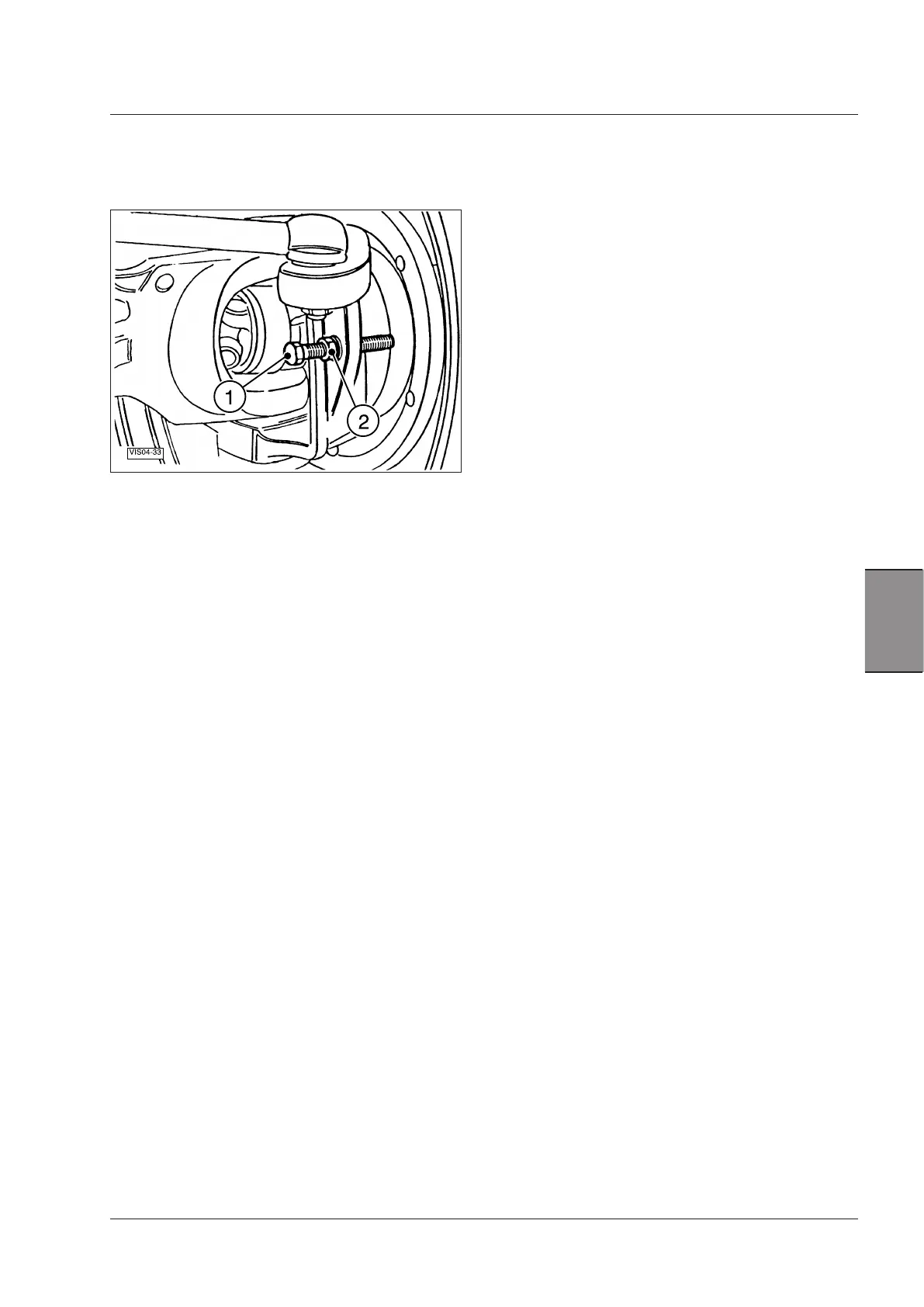

Adjustment of the steering angle
1. Adjuster screw
2. Screw nut
The maximum steering angle for the 4WD front axle can
be changed according to type of tyre and use of the trac-
tor. The angle can be changed adjusting the stop screw
(1) on the housing of the axle final drive.
This adjustment is very useful when operating with mini-
mum track widths to avoid any interferences between tyre
and bonnet.
Maximum steering angle: 55°.
