Maintenance

7-77

P/N 6525032M1 - X6

STEP 54A

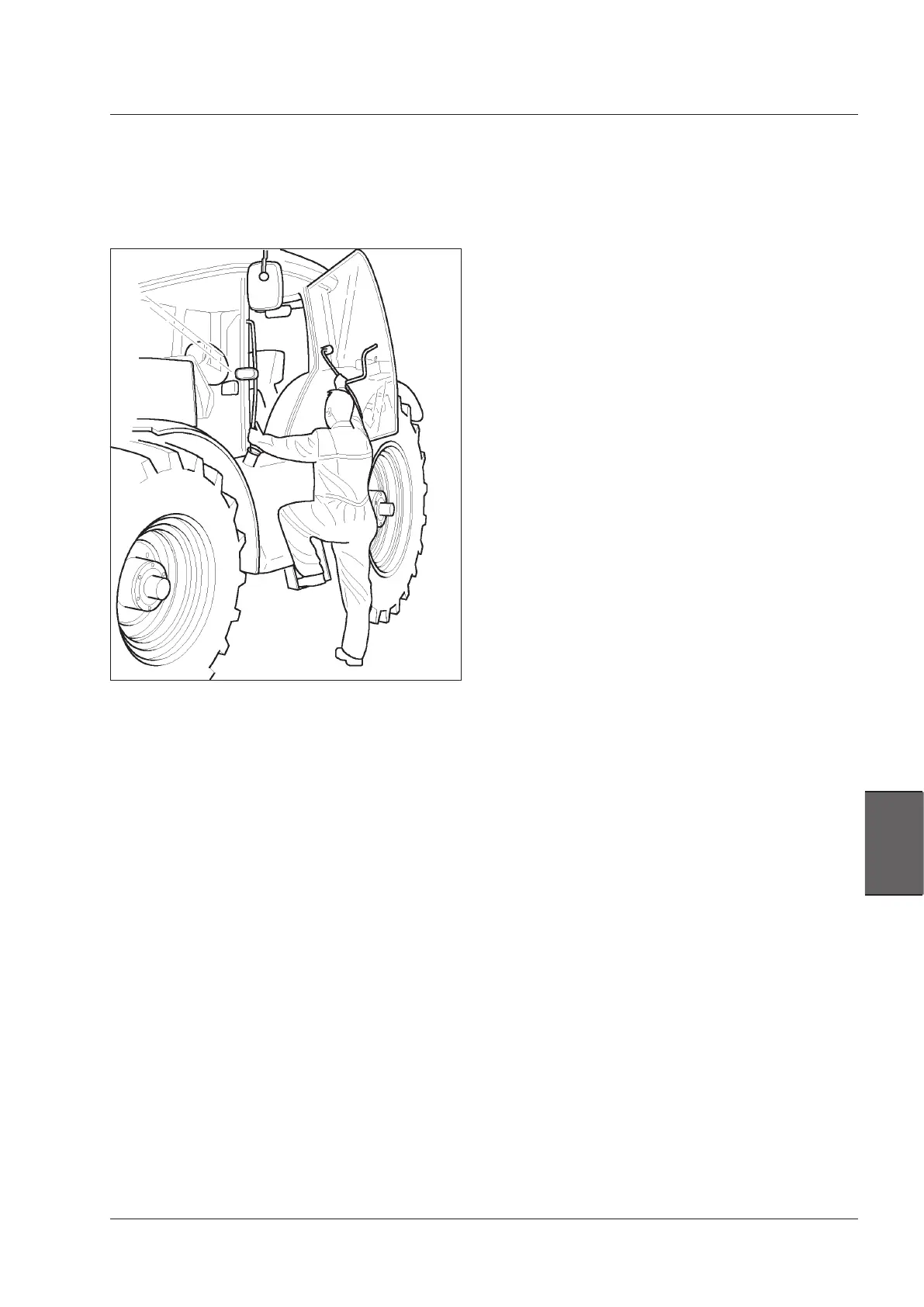

Lubrication of door locks and hinges

Grease door locks and hinges
