Electrical system
8-13
8
P/N 6525032M1 - X6

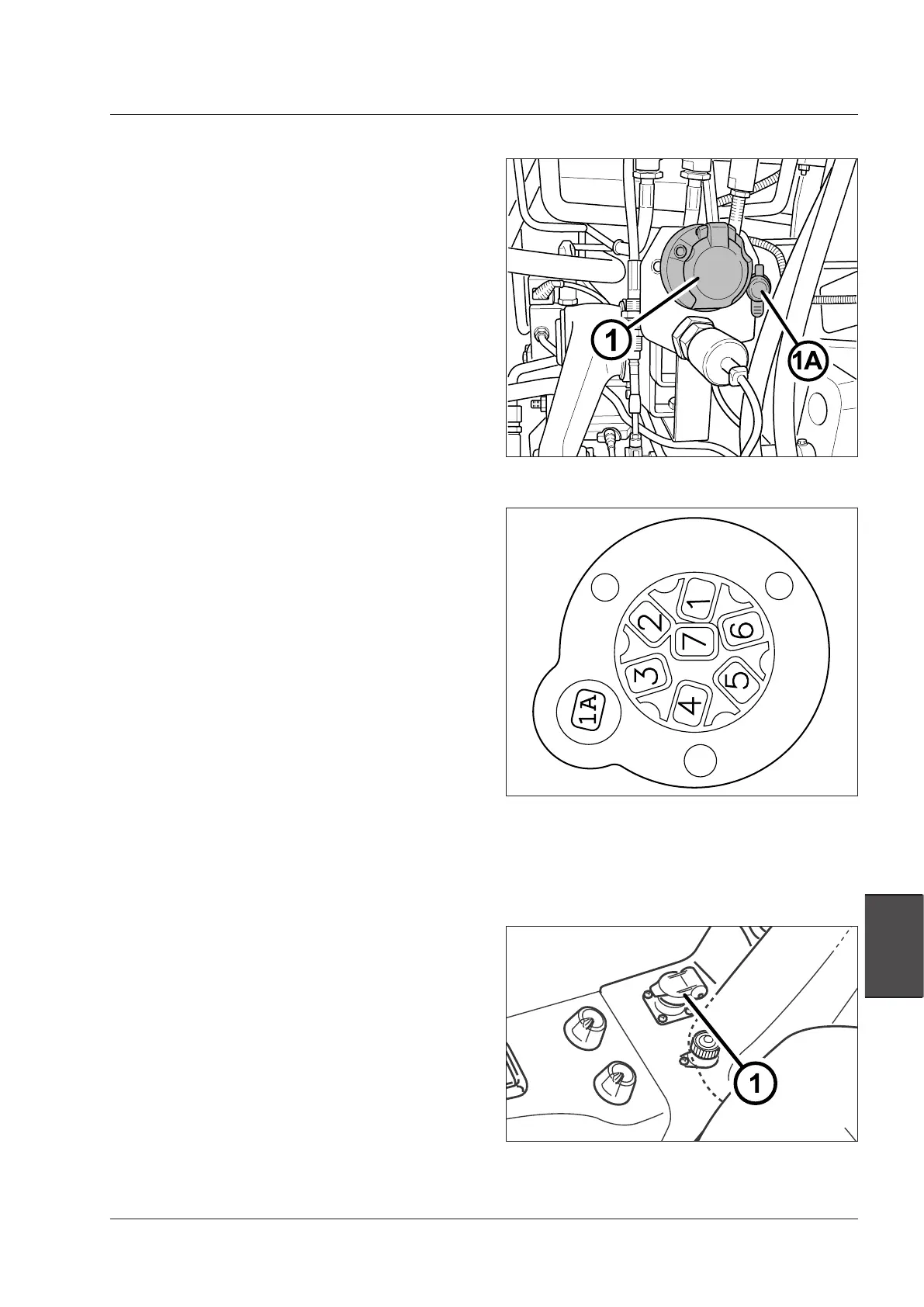

7-pin power socket for trailer
A 7-pole power socket is installed on the rear of the trac-
tor (1 - Fig.8-15). This socket is used to connect the light
circuits of the trailer.
The pin (1A-Fig.8-15 (if equipped) is on the side of the
7-pin socket. By this pin it is possible to power a revolving
beacon mounted on a trailer.
WARNING: Always use the specific PPE for the opera-
tion concerned. Beware of burns caused by hot tractor
and engine parts. [4.1.n]
Connections and correspondences for 7-pole
power socket according to ISO-SAE standards
(Fig.8-16).
1. Left turn indicator.
2. Not used (Fog lights - if equipped);
3. Ground;
4. Right turn indicator;
5. Rh rear side light;
6. Brake lights.
7. Lh rear side light.
1a. Trailer revolving beacon (pin not available on versions
for North America)
Connections in versions for North America:
1. Ground;
2. Rear field light;
3. Left turn indicator;
4. Battery positive;
5. Right turn indicator;
6. Parking lights;
7. 12 Volts key operated.
Fig. 8-15
Auxiliary power socket (3-pins 12
volts)
– The auxiliary power socket is mounted in the cab on
the right side.
Fig. 8-17
Fig. 8-16 View of 7-pin socket, cable insertion side
