Operation
X6 - P/N 6525032M1
USE OF THE GEARBOX
Functions with electrohydraulic re-
verse shuttle and 3 Powershift ranges
on load.
Reverse shuttle under load: allows the driving direction
to be reversed by simply moving FNR lever on the left
hand near the steering wheel. The electronic control unit
guarantees smooth and gradual reversing. For safety
reasons, the direction can only be reversed at speeds
of less than 10 Kph.
The Declutch system disengages the main hydraulic
clutch by means of the button on the actual gearshift
lever. This button allows the driver to shift the mechani-
cal gears without depressing the clutch pedal.
The clutch pedal is only used for very small movements
of the tractor, e.g. for hitching or unhitching an imple-
ment, and for greater safety when sudden stops are
made or obstacles are encountered.
Use of the electrohydraulic gearbox in the 3 Powershift
operating ranges: HML (High-Medium-Low).
The operator shifts from one range to another on load
without using the clutch pedal and while the tractor is
on the move, by simply depressing the button on the
gearshift lever: press (+) to increase speed, press (-)
to slow down.

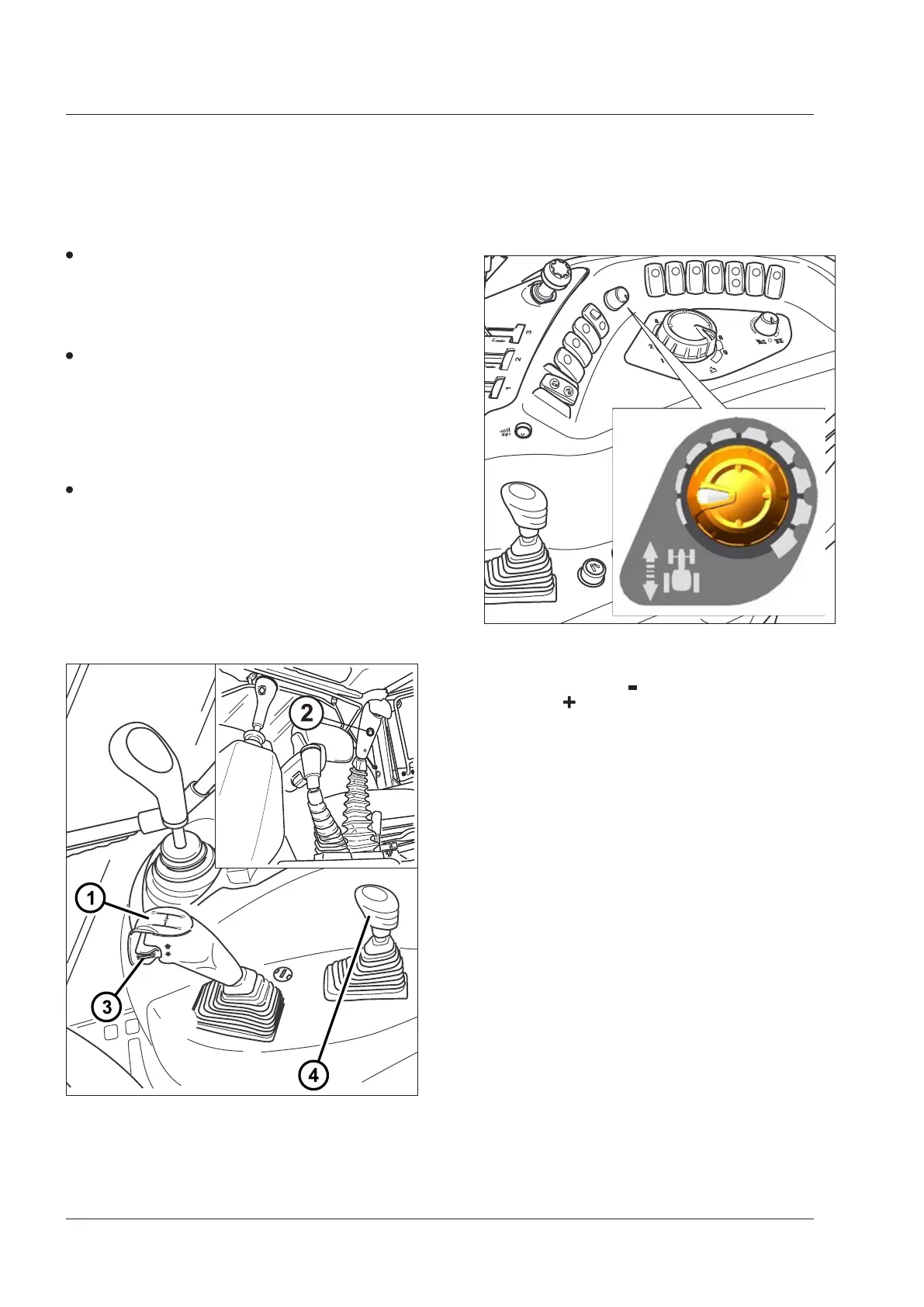

1. Gearshift lever.
2. Declutch disengaging button (orange)
3. Electro-hydraulic gearbox Powershift switch
4. Range selector lever: Creeper (on request), Low,
Normal, High.
Adjustment of electro-hydraulic re-
verse shuttle effectiveness
The electro-hydraulic reverse shuttle effectiveness can
be adjusted by means of potentiometer (1). Turn anti-
clockwise (toward symbol ) to reduce it, and clockwise
(toward symbol ) to increase it.
NOTE: If the potentiometer is moved but the relative
menu is not displayed on the instrument, the menu will
be displayed as a pop-up. See also “Electro-hydraulic ef-
fectiveness” in Section 4 of this manual.
