Operation
5-45
5
P/N 6525032M1 - X6
Left/right offset position
WARNING: Always use the specific PPE for the opera-
tion concerned.
3
3
Remove the split pins (3) depending on the required side
(right or left) to which the bar should be moved and move
the bar accordingly. Install the retaining pin.
When using the offset positions raise the lower links to
full height. With the lower links in this position the hitch
will not interfere with the side movement of the swing-
ing drawbar.
The drawbar must not be offset in the fully forward posi-
tion.
The drawbar must be locked in the centre position when
doing any of the following operations:
A. Towing implements at transport speed (15 Kph (10
mph) or more) in the field.
B. Towing an implement or trailer on the highway at all
speeds.
C. Operating a drawbar pulled, PTO driven implement.
D. Moving the tractor in reverse with an implement at-
tached.
Fore/aft position
WARNING: Always use the specific PPE for the opera-
tion concerned.

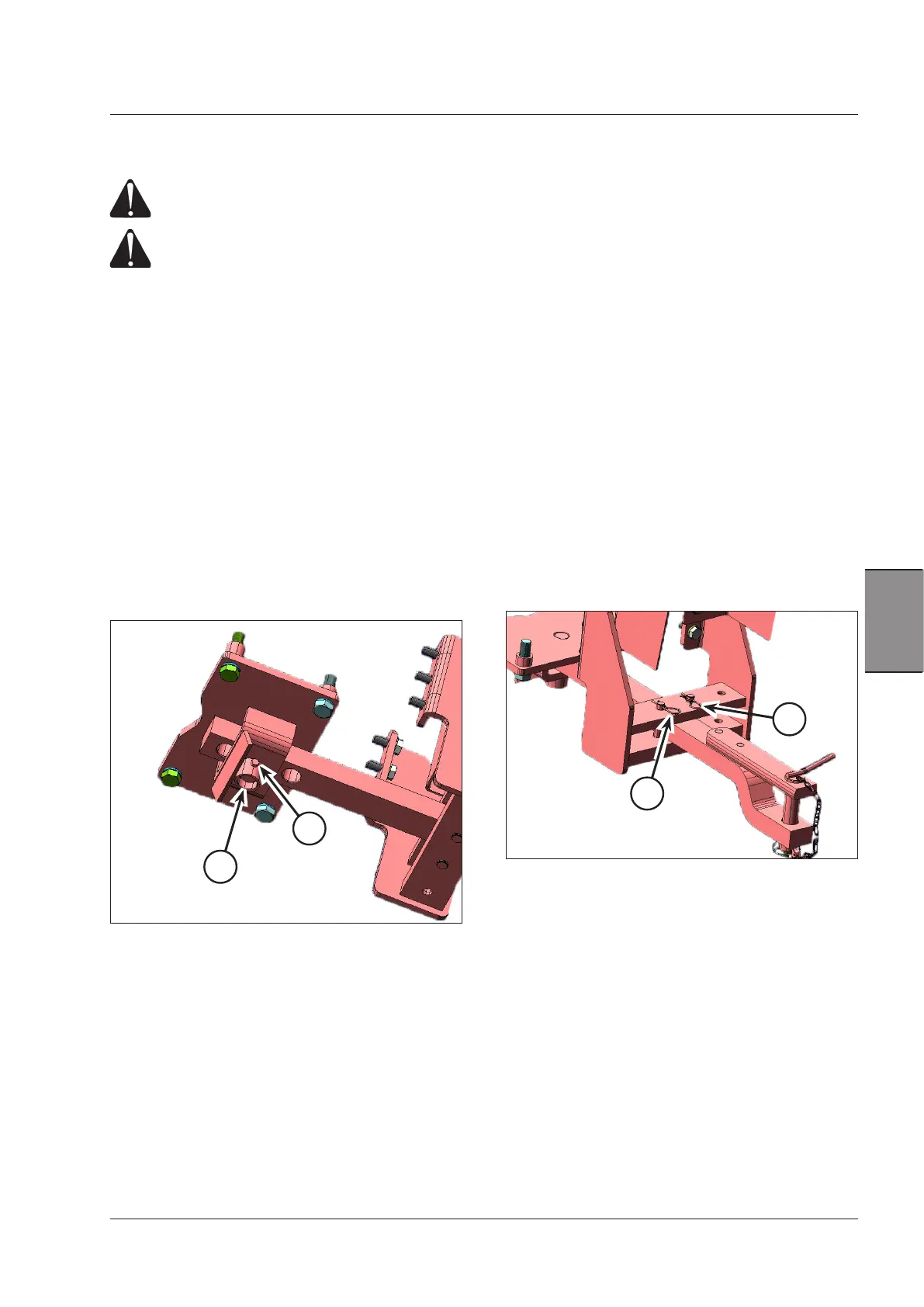

1
2
Remove the fixing bolt (1) of the pin and draw out the
pin (2).
Slide the drawbar backward or forward to the required
drawbar position as indicated on the implement or in the
implement operator's manual.
When the correct position of the drawbar has been set,
fit the pin (2) and the retainer bolt (1) back again.
DRAWBAR
WARNING: Rear upset can result if pulling from wrong location on tractor. The three point hitch must
only be used with the implements designed for its use, not as a drawbar.
WARNING: Try to balance the load primarily on the implement wheels as in loading a machine with harvest
crops. Avoid overloading the drawbar. Add front end weights for improved stability. Engage the clutch
smoothly, avoid jerking and use the brakes cautiously to avoid jack- knifing.
In certain markets pulling trailers on public roads is not permitted unless a special approval note has
been supplied with the machine documents. Always make sure you have the relevant approval before
pulling trailers on public roads.
The drawbar can be set in various positions, see following pages for greater details on preparation and operation.
WARNING: Use exclusively the provided hooks to tow the machine.
WARNING: Refer to licensing documents issued by the Ministry of Transport to know data relating to max. verti-
cal and horizontal loads on tow hooks and max. trailer weights.
