7-36
Maintenance
X6 - P/N 6525032M1
STEP 19A
Parking brake
WARNING:handle all parts with the utmost care. Do
not reach with your hands or fingers between parts.
Wear approved safety garments such as eye protection,
gloves and safety footwear.

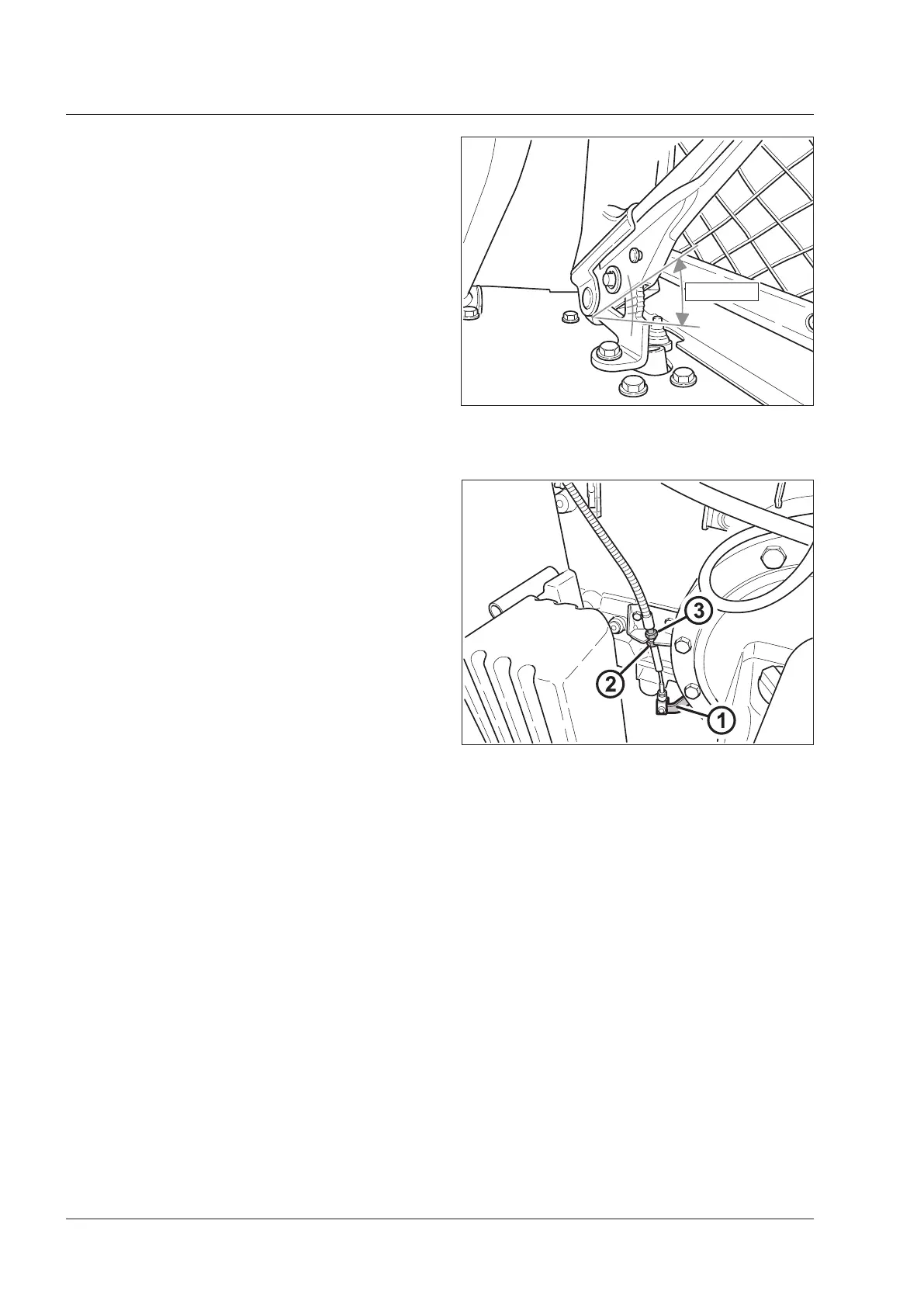

The travel of the parking brake control lever should be
adjusted when the lever has a too long idle travel. Proceed
in the following way (Fig.5-8B):
1. Pull the parking brake lever up to the fourth mark on
the sector.
2. Apply a force of 80 – 100 N to the bottom lever (1).
3. Loosen the check nut (2) and tighten the adjuster nut
(3) up to the position of the bottom lever.
4. Tighten the check nut (2) and check if the brake oper-
ates correctly.
WARNING: Always use the specific PPE for the opera-
tion concerned. Beware of burns caused by hot tractor
and engine parts. [4.1.n]
Fig.7-8B
Fig.7-8A
4 marks
