Cab ventilation [4.1.b]
(Fig. 3-55)
The cab ventilation is controlled by means of 8 adjustable
air vents (A). 6 are in the cab roof and 2 in the bottom of
the left and right consoles.
Direct the air flow as required direction by turning the
vents.
Internal air recycling in the cab (Fig. 3-55)
1. Press the switch in the ECC console to enable the
dedicated function (see “Electronic Climate Control” in
the following pages).
2. The vanes within the two re-circulation grilles (B) are
self-regulated for optimal air intake from the cab.
Front windscreen demisting/defrosting
(Fig. 3-56)
In the front part of the cab roof there are 3 vents to defrost
and demist the windscreen (C).
On each vent, turn the little wheel (2) on the left to adjust
the position of the fins, and on the little wheel (3) on the
right to open or close the vent.
To defrost the windscreen:
1. Press the switch in the ECC console to enable the
dedicated function (see “Electronic Climate Control” in
the following pages).
2. Open the air vents (C) and direct their air flows toward
windscreen and windows.

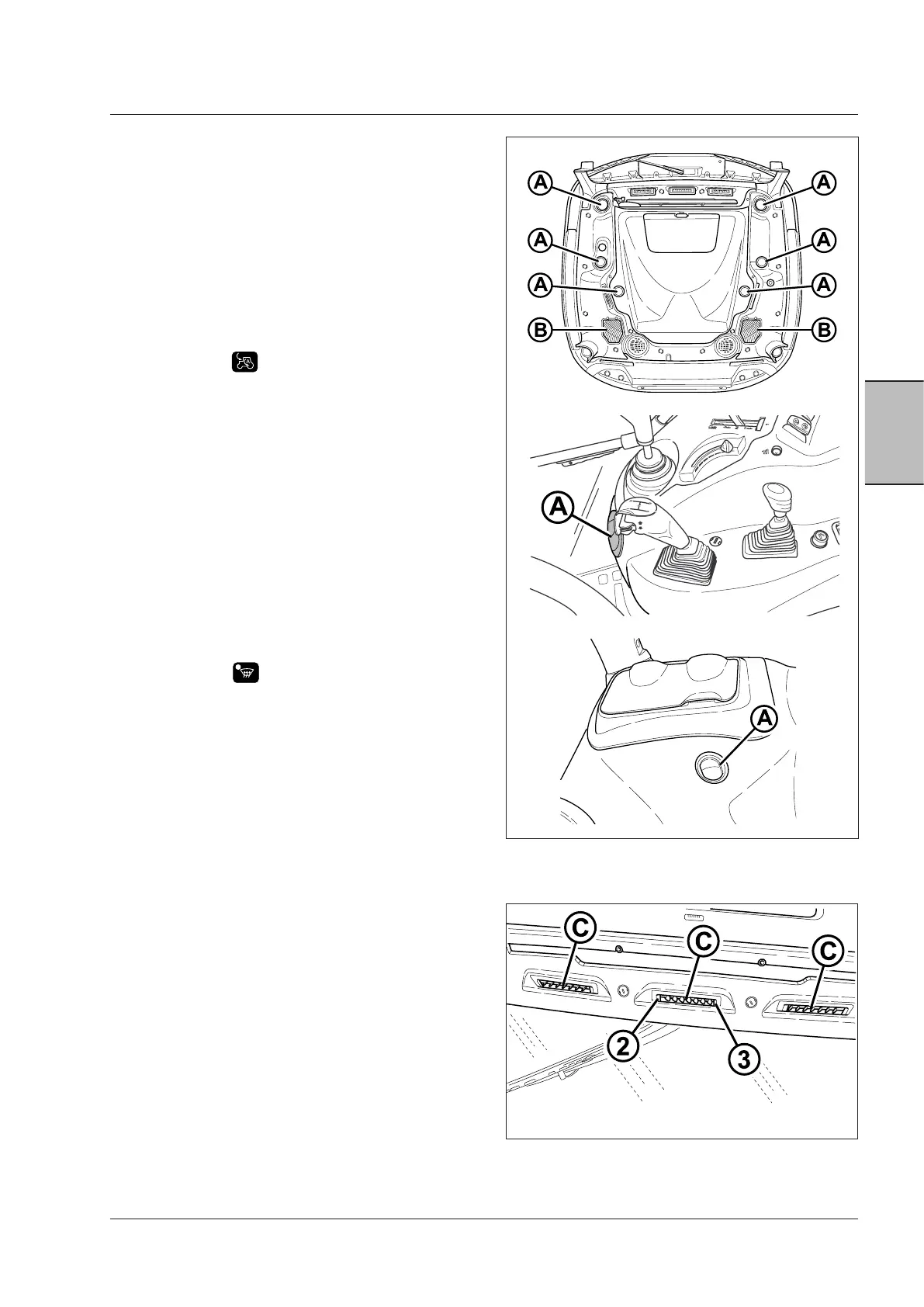

Fig. 3-55
