Argo McCORMICK X6.430 STD/LS - Main Instruments and Controls

Controls - Cab
3-21
3
P/N 6525032M1 - X6
1. Powershift ranges switch (only available for forward
speed ranges)
1A Declutch button
2. Speed control lever
3. Joystick to control hydraulic valves
4. Hand throttle
5. Rear hydraulic valve lever
6. Rear hydraulic valve lever
7. Rear hydraulic valve lever
8. Retainer block for auxiliary control valve lever
9. Rear PTO engagement/disengagement switch
10. Rear hitch up/down switch
11. Differential lock button
12. 4WD engaging button
13. Constant engine revolutions (if equipped)
14. Front PTO engagement button
14A Front PTO engagement safety button
15. Transmission reactivity adjustment potentiometer
16. Auto PTO engagement button (if equipped)
17. Button to engage the rear hitch damping function
18. Button to engage the rear hitch slip control function
19. Button to engage the stationary function
20. Front axle Up/Down button (if equipped)
21. Front suspended axle AUTO mode button (if equipped)
22. Cab ceiling light switch button
Main instruments and controls
23. Knob to control work depth/height of rear hitch
24. Knob to select Position-Draft-Intermix mode of rear
hitch
25. PTO speed selector lever (rpm)
26. PTO type selector lever (standard - eco)
27. Auxiliary electric socket
28. ISO 11786 socket
29. Knob to adjust lower speed of rear hitch
30. Knob to adjust max. height of rear hitch
31. Ashtray
32. Cigarette lighter
33. Range shift lever (and creeper if equipped)
34. Quick soil engagement switch

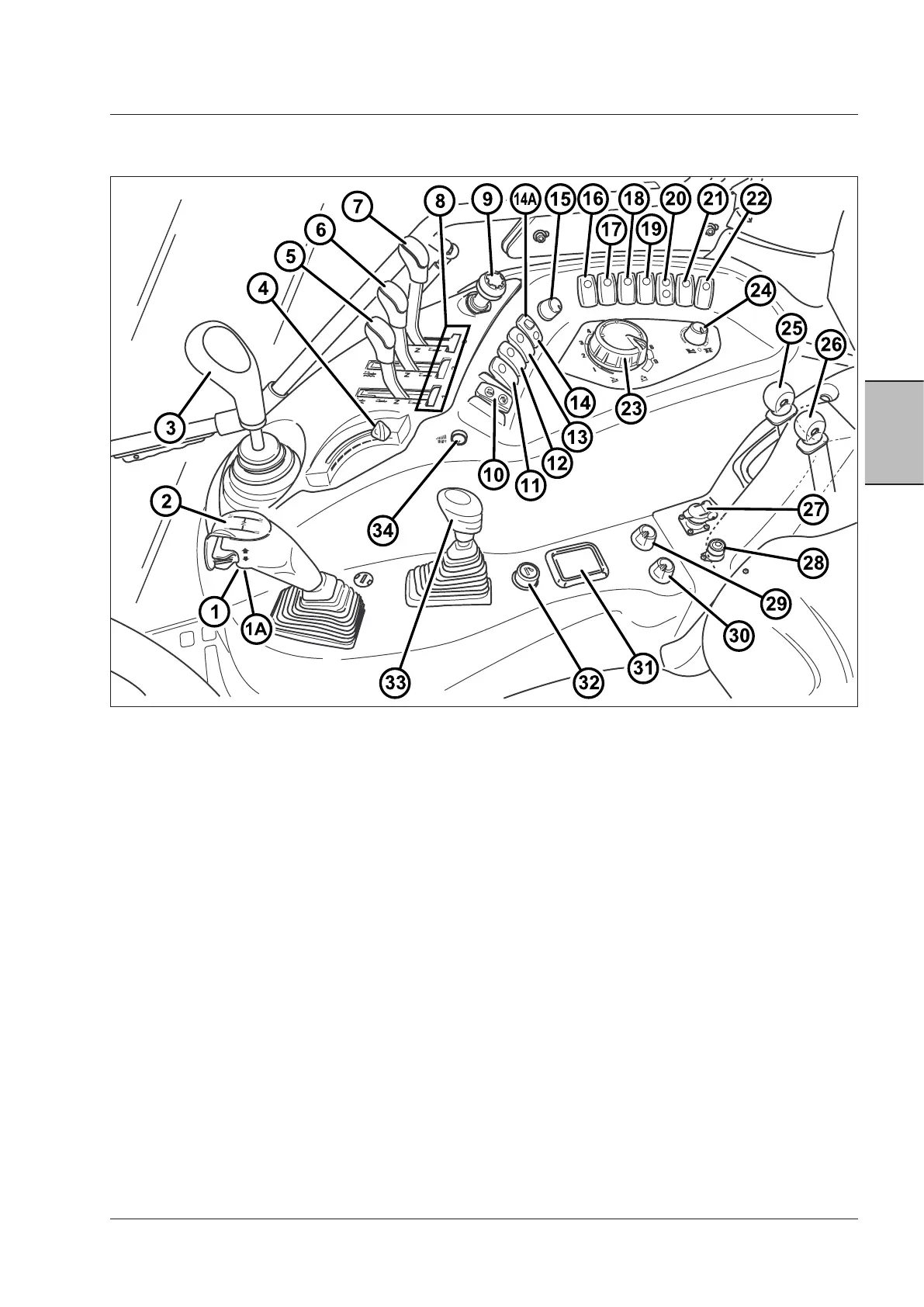

Fig. 3-40
