5-8
Operation
X6 - P/N 6525032M1

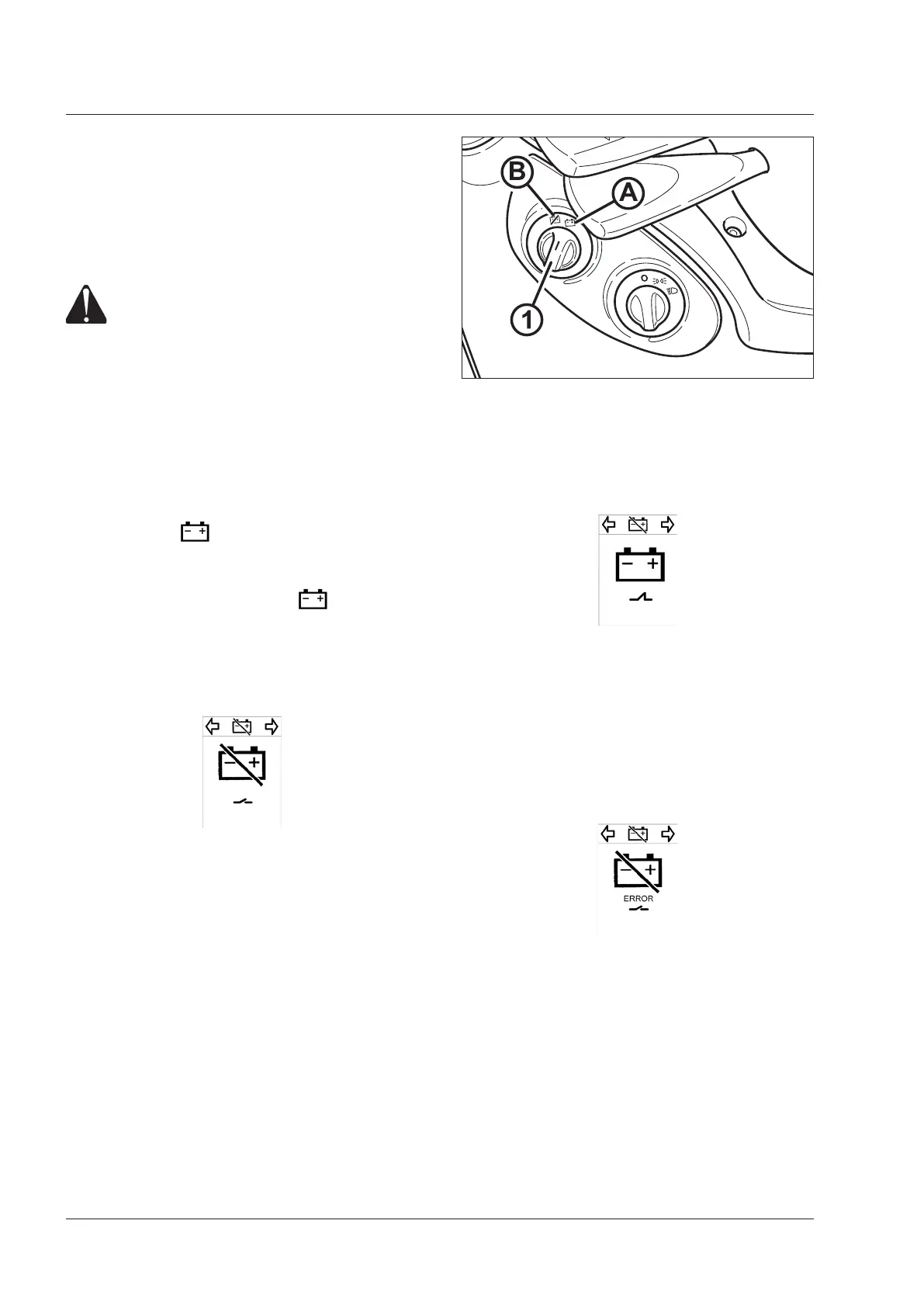

Fig.5-1
Battery master disconnect switch
(1-Fig. 5-1)
The master disconnect switch (3) disconnects the battery
from the tractor electric system.
The master disconnect switch (1) can only be activated
with the ignition key in the OFF position.
WARNING: Before any maintenance opera-
tions, always disconnect the battery by means
of the master disconnect switch and remove
the terminals from the battery.
If the tractor is not used for a long time, it is
advisable to disconnect the battery.
WARNING: When the engine is running, the battery
cannot be disconnected in any way.
This switch has two positions:
● Position A: battery connected, all systems are pow-
ered. The icon is lit up.
● Position B: battery disconnected, only the instrument
cluster, the courtesy light in the cab and the radio
memories are powered. The icon is off.
Disconnect procedure
● Put key switch in the OFF position.
● Put the switch (1) in the (B) position to disconnect the
battery. The LCD shows the following icon:
Position B: battery disconnected
NOTE: The battery is really disconnected only when the
symbol disappears from LCD.
Restart procedure
1. Put the switch (1) in the (A) position to connect the
battery. The LCD shows the following icon when the key
is on ON:
Position A: battery connected
Error display
Any errors concerning the master disconnect switch
circuit may be shown on the LCD display by the icon
hereunder after turning the ignition key to OFF.
When this icon is displayed, the master disconnect switch
could not be in the required position due to a malfunction.
Contact your Argo Tractors Dealer.
