Operation
X6 - P/N 6525032M1
Brakes
The front and rear brakes are the mechanically control-
led type with oil-cooled discs. Brake action is hydraulic,
controlled by pumps operated by the pedals.
A brake fluid reservoir keeps the brake circuit constantly
supplied with fluid.
WARNING: To replace and refill oil in the
brakes reservoir, use a mineral base oil. Refer
to Lubricants and fuel charts in section 9 of
this manual for type and quality. Never mix
or exchange these two types of brake fluid as
this could rapidly bring about brake failure.
Main brakes
(Fig.5-22)
The main brakes are operated by means of two pedals
(1) one for each rear wheel. Braking with only one pedal
assists steering in tight manoeuvres. By locking the rear
wheel on the inside of a curve, you can virtually turn the
tractor around on its own axis. For simultaneous braking
during normal use and for on-road use, simply lock the
two pedals together with the special brake coupling (2).
This latter rule becomes very stringent if the tractor is also
provided with front brakes, as a device on the hydraulic
control circuit lets the front brakes be activated only if
both pedals are operated at the same time.
WARNING: always keep the brake pedals
coupled for on-road driving to ensure simul-
taneous braking on all four wheels. NEVER
use the brakes independently when driving
on public roads.
WARNING: If you ever notice the brakes
becoming less effective, identify the cause
immediately and repair. Always contact your
Argo Tractors Dealer. When working on slopes,
avoid using the brakes as much as possible
and select a lower gear in order to use engine
braking.
WARNING: when working on slopes, avoid
using the front brakes as much as possible
and select a lower gear in order to use engine
braking.

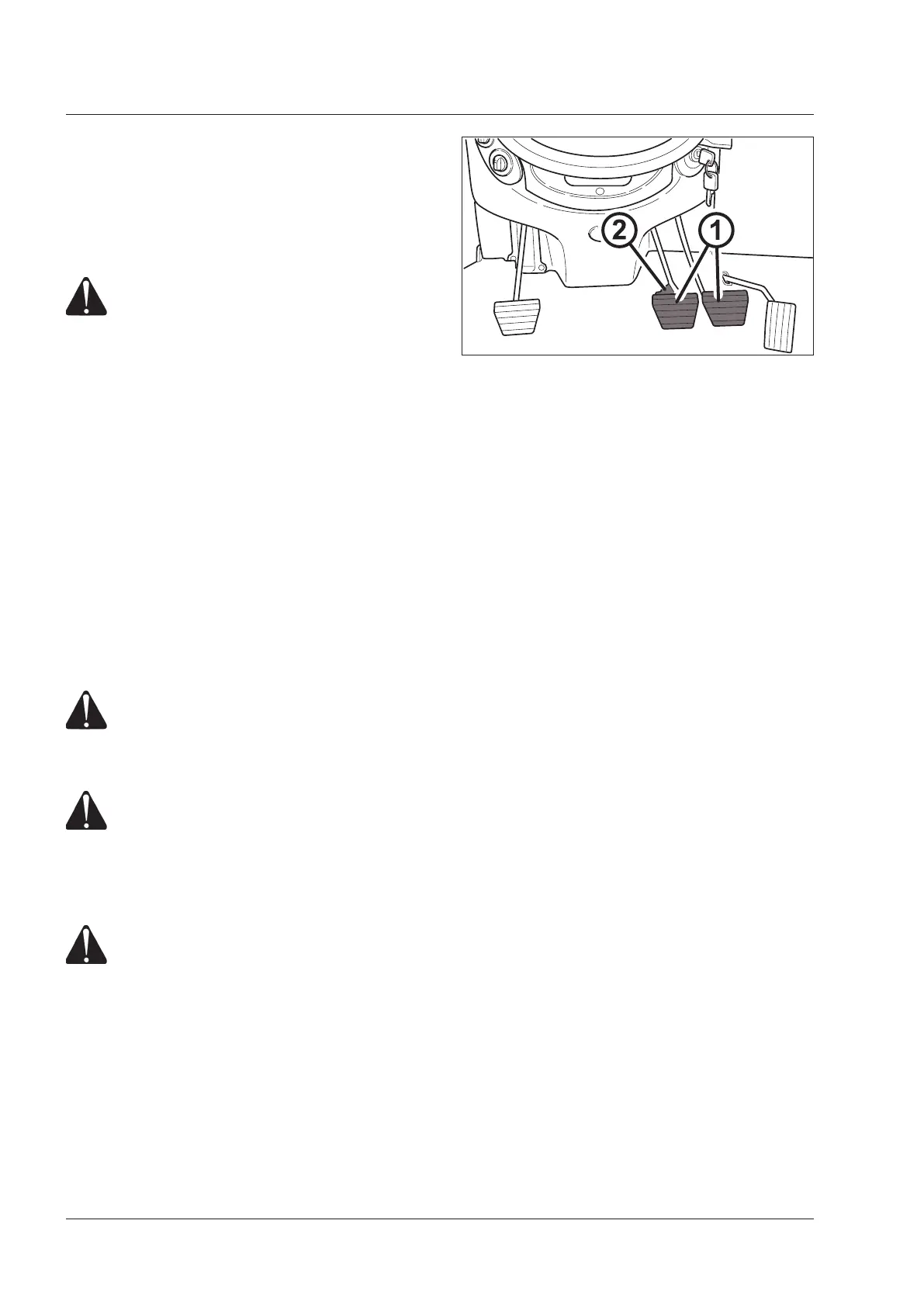

Fig.5-22 - (1) Brake pedals.
(2) Brake coupling.
