AdBlue™ or DEF level

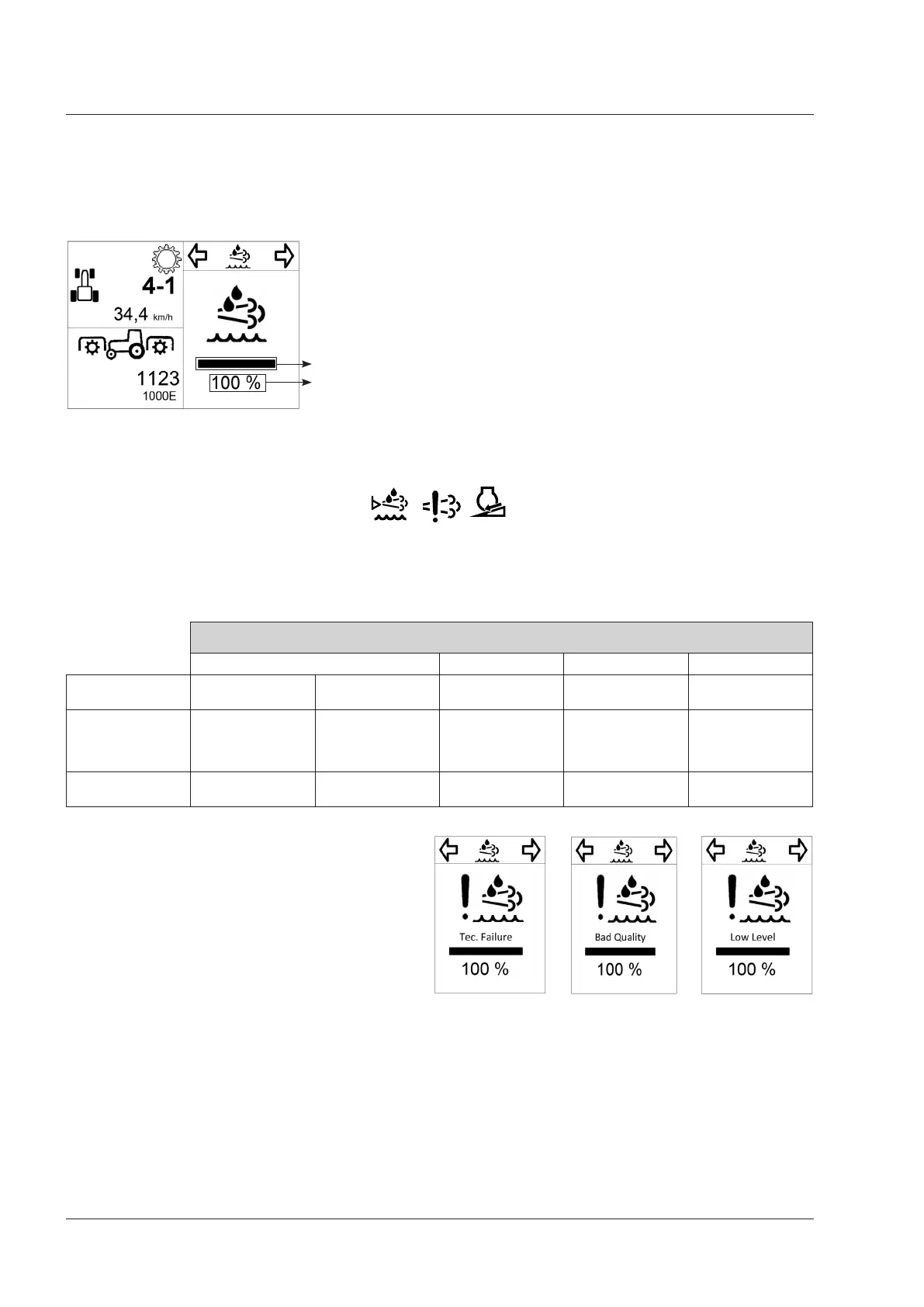

The AdBlue™ or DEF level in the reservoir is displayed as in the following image, where:
• the size of the black rectangle (A) depend on the present amount of AdBlue™ or DEF
• the percentage (B) refers to the amount of AdBlue™ or DEF in the reservoir
The images besides are displayed when the relative alarm
occurs.
In case of contemporary messages of “Tec. Failure” and/
or “Bad Quality” and/or “Low Level” the highest priority
pop-up will be displayed.
If 2 or 3 indications have the same level, “Tec. Failure” is
displayed first, followed by “Bad Quality” and then “Low
Level”.
If during the use of the tractor the instrument cluster no longer receives information on AdBlue™ or DEF level or received
an error message, the above pop-up window is shown with the flashing “- - -%” symbol and the bar (A) replaced by flash-
ing dashes. At the same time the following indicators may come up:
Contact the Service of your Argo Tractors Dealer.
A
B
SYSTEM STATUS
Standard Minor reduction Major reduction Very heavy reduction
AdBlue™ or DEF level higher than 15% up to 15% less than 10% less than 5% 0%
Display mode of the
percentage (B)
Fixed Fixed Flashing Flashing Flashing
Alarm priority No pop-up Low priority pop-up Low priority pop-up High priority pop-up High priority pop-up
Tec. Failure
System malfunction
Poor Quality
Poor quality of AdB-
lue™ or DEF
Low Level
Low AdBlue™ or
DEF level
