Engine operating modes
See below the description of the indications of the instrument cluster and of the limitations to engine operation imposed
by the control unit.

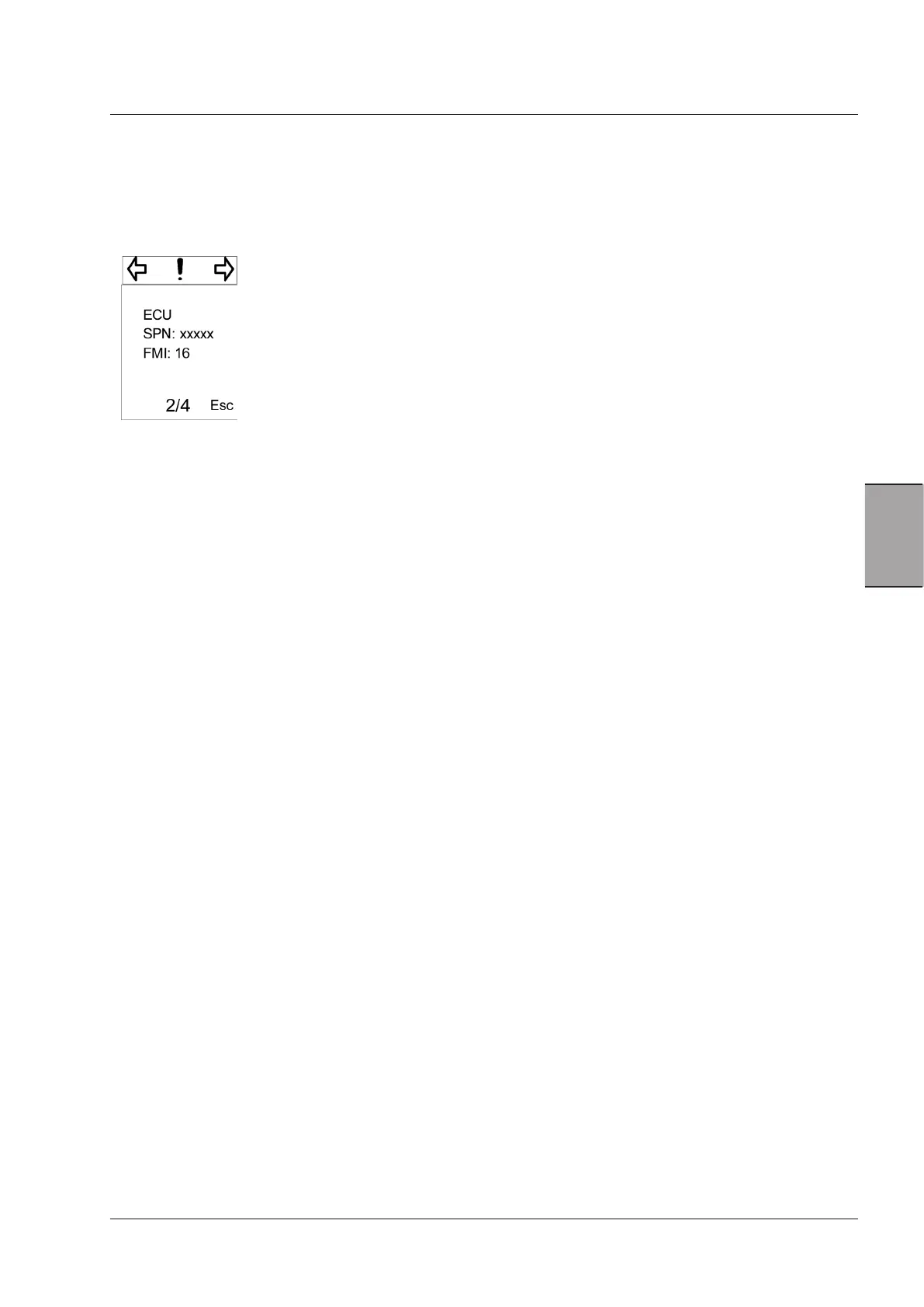

ECU - Control unit that detects the error
SPN and FMI are the values that must be communicated to the service centre to identify the
problem.
2/4 indicates: number of displayed alarm/total number of displayed alarms.
AdBlue™ or DEF level below 10% - Medium limitation
No reduction in engine power.
1. The indicator light of AdBlue™ or DEF level flashes.
2. The LCD level indicator is enabled.
3. The following error is displayed: SCR - 00EB
AdBlue™ or DEF level below 5% - Heavy limitation
Reduction of torque by 65% - Reduction of engine speed by 60% - Reduction rate 1% every minute
1. The indicator light of AdBlue™ or DEF level is steadily lit up.
2. The LCD level indicator is enabled.
3. The engine fault indicator light flashes.
4. The following error is displayed:
SCR: 00EB + 00EC
ENG: 1004F + 1009D
Level of AdBlue™ or DEF at 0% - Very heavy limitation
Immediate reduction to 20% of engine torque.
1. The indicator light of AdBlue™ or DEF level is steadily lit up.
2. The LCD level indicator is enabled.
3. The engine fault indicator light flashes.
4. The indicator light of engine stop is steadily lit up. Stop the engine and fill up the AdBlue™ or DEF reservoir.
5. The following error is displayed:
SCR: 00EB + 00EC + 0095
ENG: 1004F + 1009D +1009E
