Controls - Cab
X6 - P/N 6525032M1
Front right controls

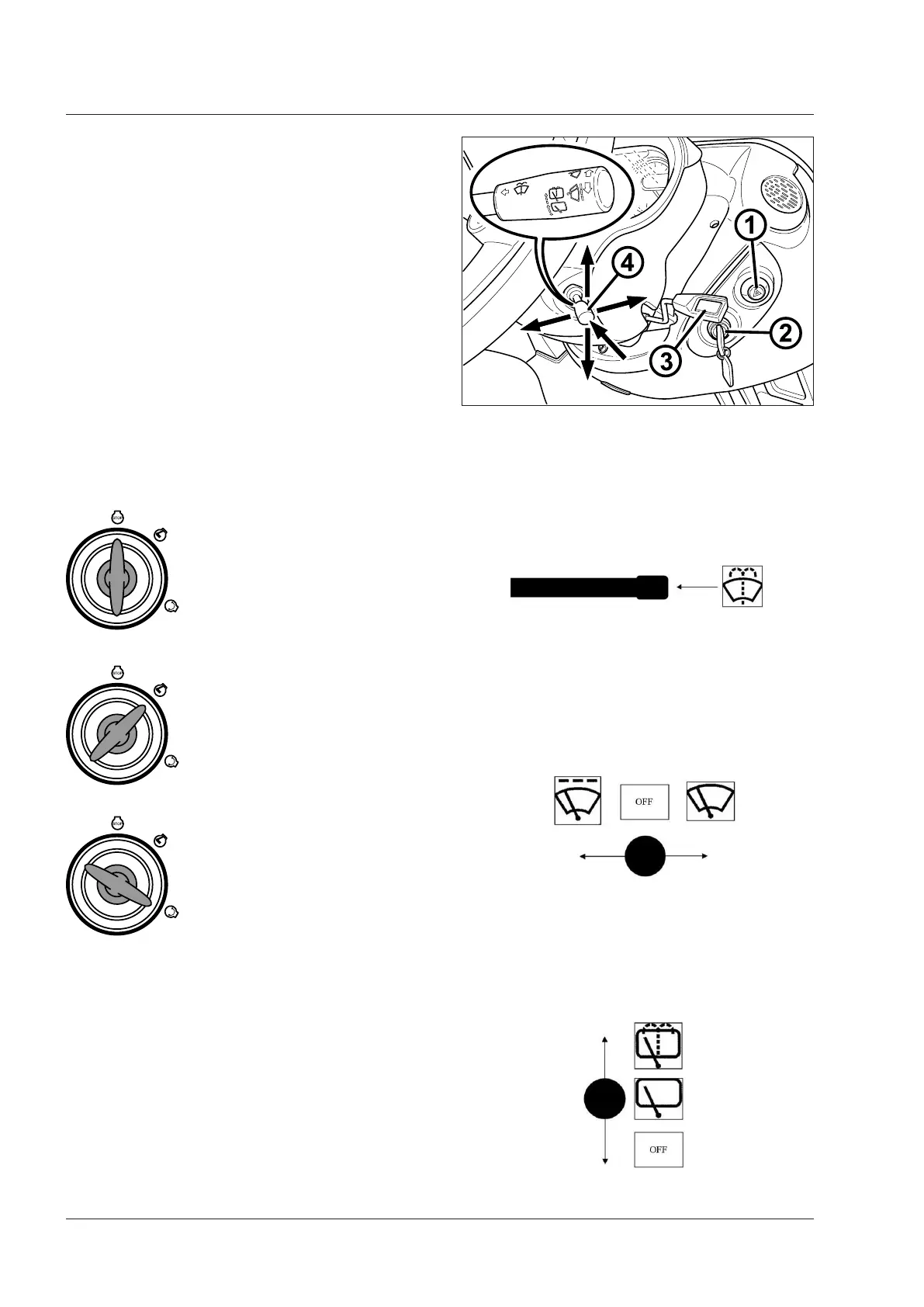

1. Hazard light switch
(Fig. 3-39)
When it is activated, the built-in lamp in the button is
flashing intermittently.
In North American versions, when the button (1) is acti-
vated, the lamp in the button remains continuously lit.
NOTE:
When driving on roads, it may be required that the
hazard lights button remains activated. Refer to the laws
in force in your Country.
2. Ignition switch
(Fig. 3-39)
The key switch has four positions as follows:
Start Position - Turning the key fully
clockwise against spring pressure
the starter motor is energised in addi-
tion to the circuits already mentioned
above.
Accessory Position - The radio can
be operated in this position and
some of the cluster displays, also
used for programming the digital
instrument cluster.
OFF Position - Turn from On/Run posi-
tion anticlockwise to stop the tractor.
The key can only be removed when it
is in this position.
3. Steering column adjustment lever
(Fig. 3-39)
See page 3-30.
4. Windscreen wiper switch
(Fig. CC5)
Press the end of the switch (4) to operate.
Front windscreen wiper
Lever (4):
A. pulled toward the operator; INTERMITTENT ON
B. in middle position: OFF
C. pushed toward the windscreen: CONTINUOUS ON
A CB
Rear windscreen wiper
Lever (4):
D. pushed down: OFF
E. in middle position: ON
F. pushed up: rear window washer ON
E
F
D
