2-27
Safety notes
2
P/N 6525032M1 - X6

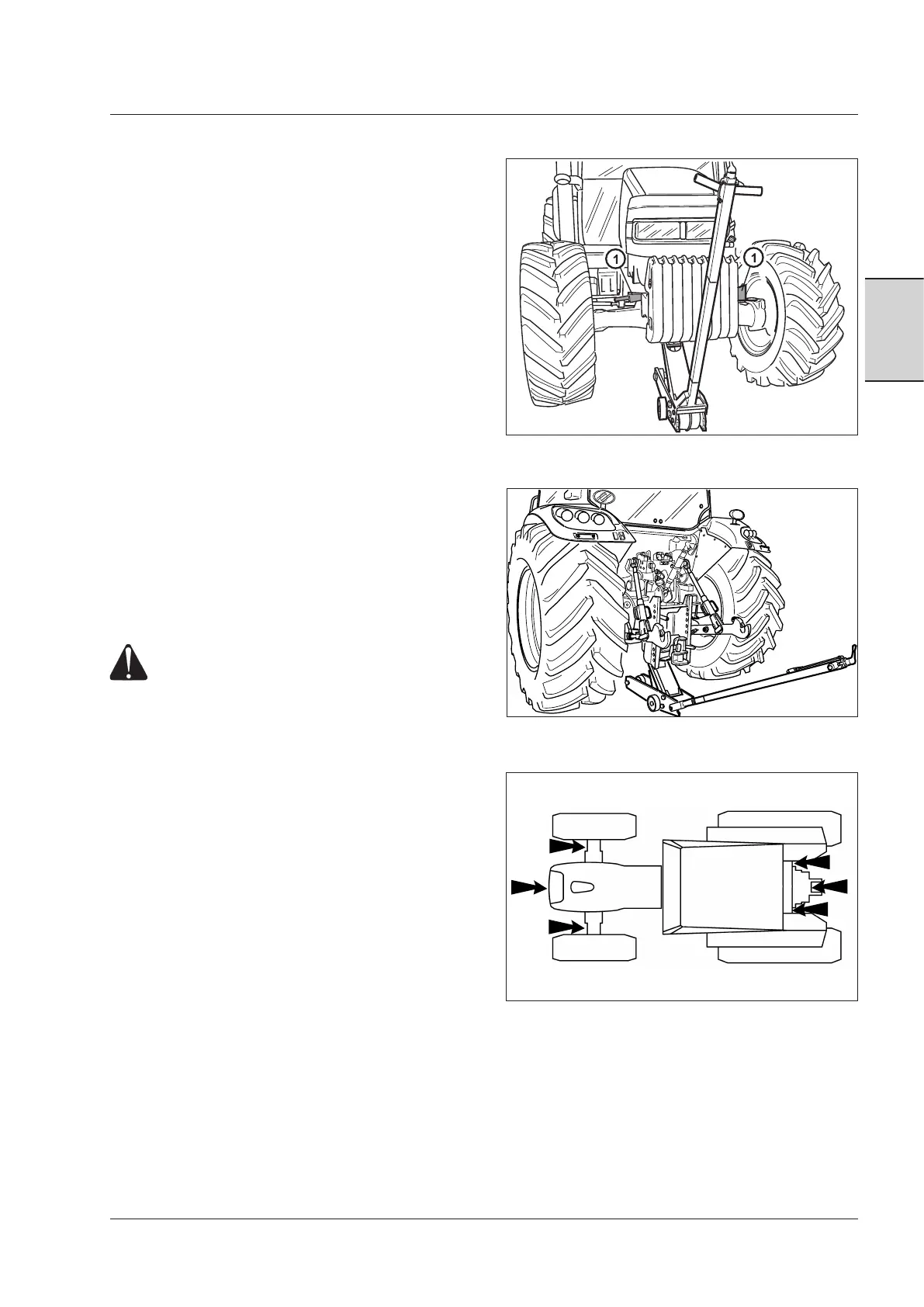

Tractor's lifting points
If the tractor is to be lifted for service or repair, this opera-
tions must be performed in a properly equipped work-
shop. NEVER try to lift it in an unsuitable environments
and with unsuitable equipment.
Always lift only the rear or front end, NEVER both ends
at the same time.
Carry out the following operations before any operation
about the tractor: engage the four-wheel drive, the first
gear and the parking brake and put chocks to the wheels
touching the ground.
Before lifting the tractor, avoid its swinging by means of
wooden wedges applied to the front axle (1 Fig.2-42): the
chocks must avoid any swinging of the tractor.
Use jack lifts of suitable capacity and apply them at the
centre of the front and rear axles (Fig.2-42 and Fig.2-43)
paying due attention to weight distribution. [4.1.k]
No decals for the lifting point are applied on the tractor, as
they would be too difficult to apply in the available spaces
and would be all too easily removed or effaced during
normal operation of the tractor. Apply the jack lift to the
lifting points (Fig.2-43) according to the type of operation
and following the safety procedures given before.
WARNING: DO NOT raise the tractor using the tow
hook.
WARNING: Never work under a vehicle only
supported by rams.
Fig.2-44
Fig.2-42
Fig.2-43
