Instruments and Programming
4-5
4
P/N 6525032M1 - X6

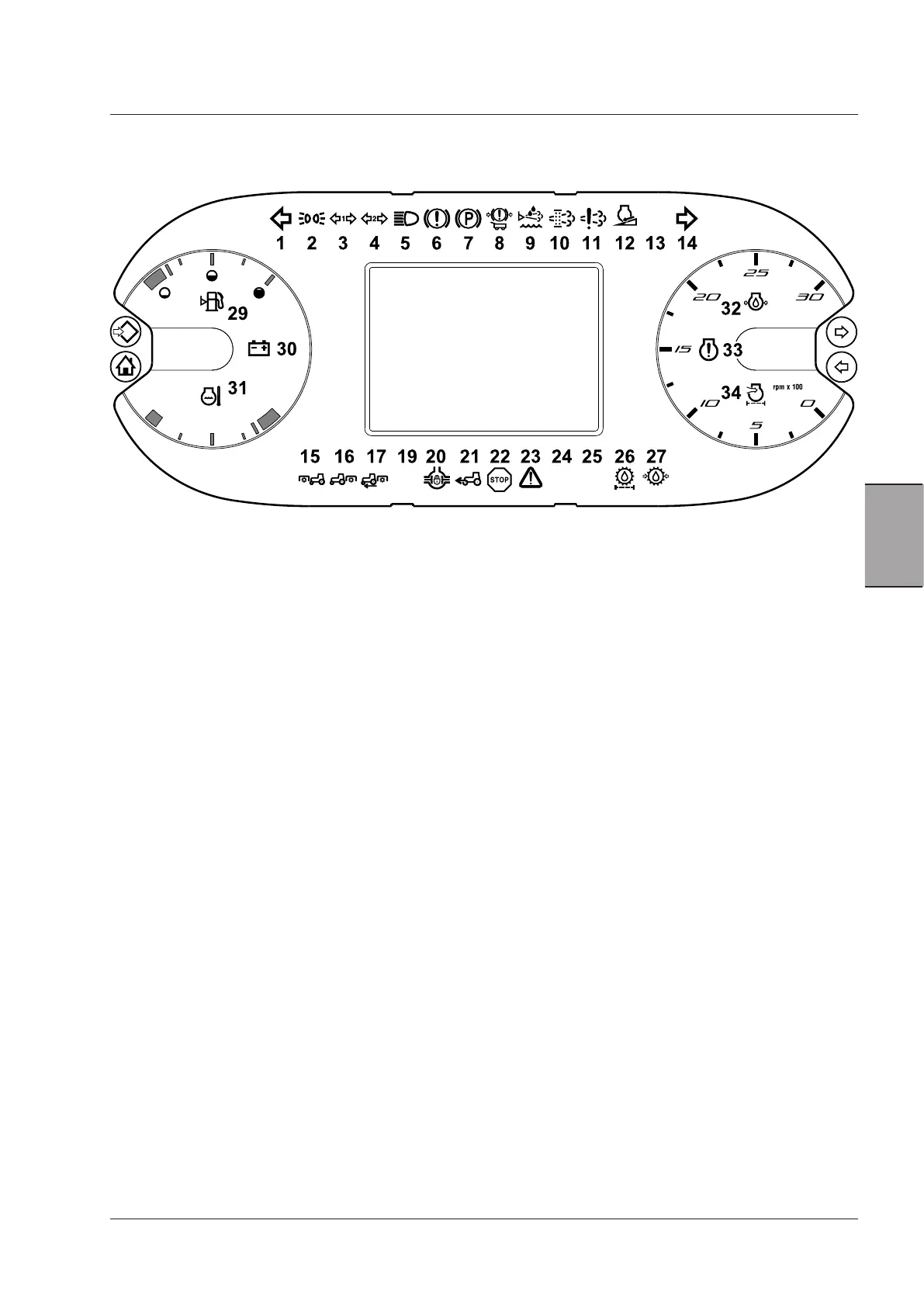

Indicator lights
Indicator lights
1 Left turn indicator, green
2 Side lights on, green
3 1st trailer indicator, green
4 2nd trailer indicator, green
5 Headlight high beam on, blue
6 Braking system fault (level, pressure), red.
7 Parking brake engaged, red.
8 Trailer braking system fault (hydraulic/air system),
red.
9 Low AdBlue™ or DEF level, yellow.
10 Not used
11 Fault in the anti-polluting system, yellow.
12 Derating enabled, yellow.
13 Empty
14 Right turn indicator, green
15 Front PTO engaged, yellow
16 Rear PTO engaged, yellow
17 Not used
18 Empty
19 Empty
20 Differential lock engaged, yellow.
21 4WD engaged, yellow.
22 Major warning, red. Stop the engine and ask your
Dealer's specialised workshop for help.
23 General warning, yellow. Faulty tractor operation. An
error has been detected by the vehicle's diagnostic
system and an error code has been generated.
24 Empty
25 Empty
26 Hydraulic filter clogging, yellow.
27 Warning light for low pressure in transmission hy-
draulic system, red.
28 Unavailable
29 Low fuel level, yellow
30 Battery charge, red.
31 High coolant temperature, red
32 Low engine oil pressure, red.
33 Engine fault warning, yellow. Ask your Dealer's work-
shop for help.
34 Engine air filter clogging, red
