Electrical system
8-9
8
P/N 6525032M1 - X6
FUSES AND RELAYS
The tractor's electrical system is protected by fuses
against short circuits and excessive power draw. The
number of the fuses in the electrical system depends on
the tractor model.
NOTE: Before replacing a blown fuse with a new,
equivalent one, the cause that led to the fault should be
ascertained and removed.
WARNING: To carry out this operation, engage the first
gear, turn off the engine, engage the parking brake,
remove the ignition key and disconnect the battery.
WARNING: If you need to open the bonnet, follow the
procedure indicated under "How to open the bonnet".
WARNING: Always use the specific PPE for the opera-
tion concerned.
WARNING: Beware of burns caused by hot tractor and
engine parts. [4.1.n]

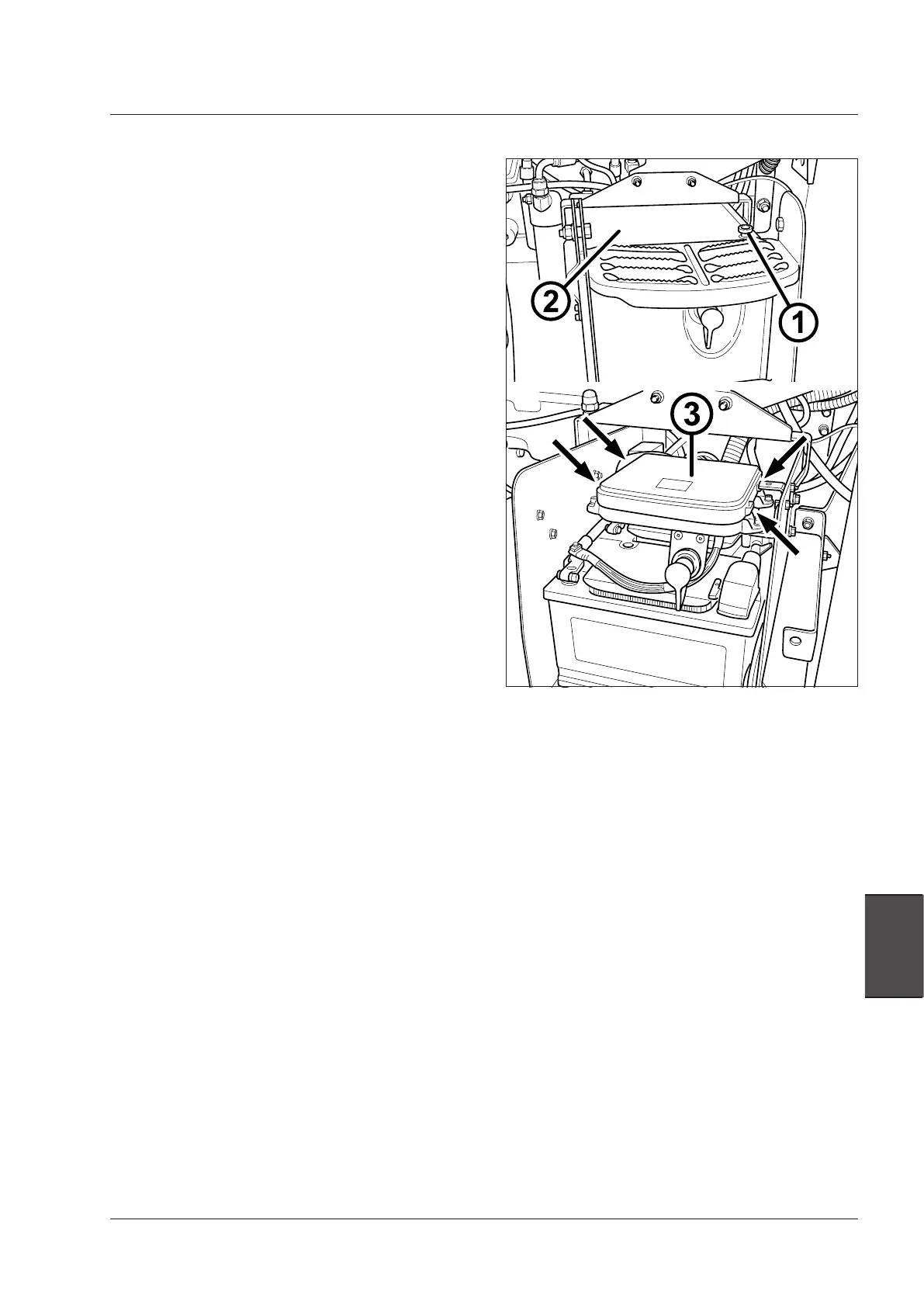

PDU box fuses (Fig. 8-10)
The PDU box is installed into the battery compartment.
Access the PDU fuses as follows:
A. Remove the clip (1) and the guard (2).
B. Push on the tabs and remove the cover (3) from the
PDU box.
Fig. 8-10
