8-10
Electrical system
X6 - P/N 6525032M1
NOTE: Before replacing a blown fuse with a new,
equivalent one, the cause that led to the fault should be
ascertained and removed.
WARNING: To carry out this operation, engage the first
gear, turn off the engine, engage the parking brake
and remove the ignition key.

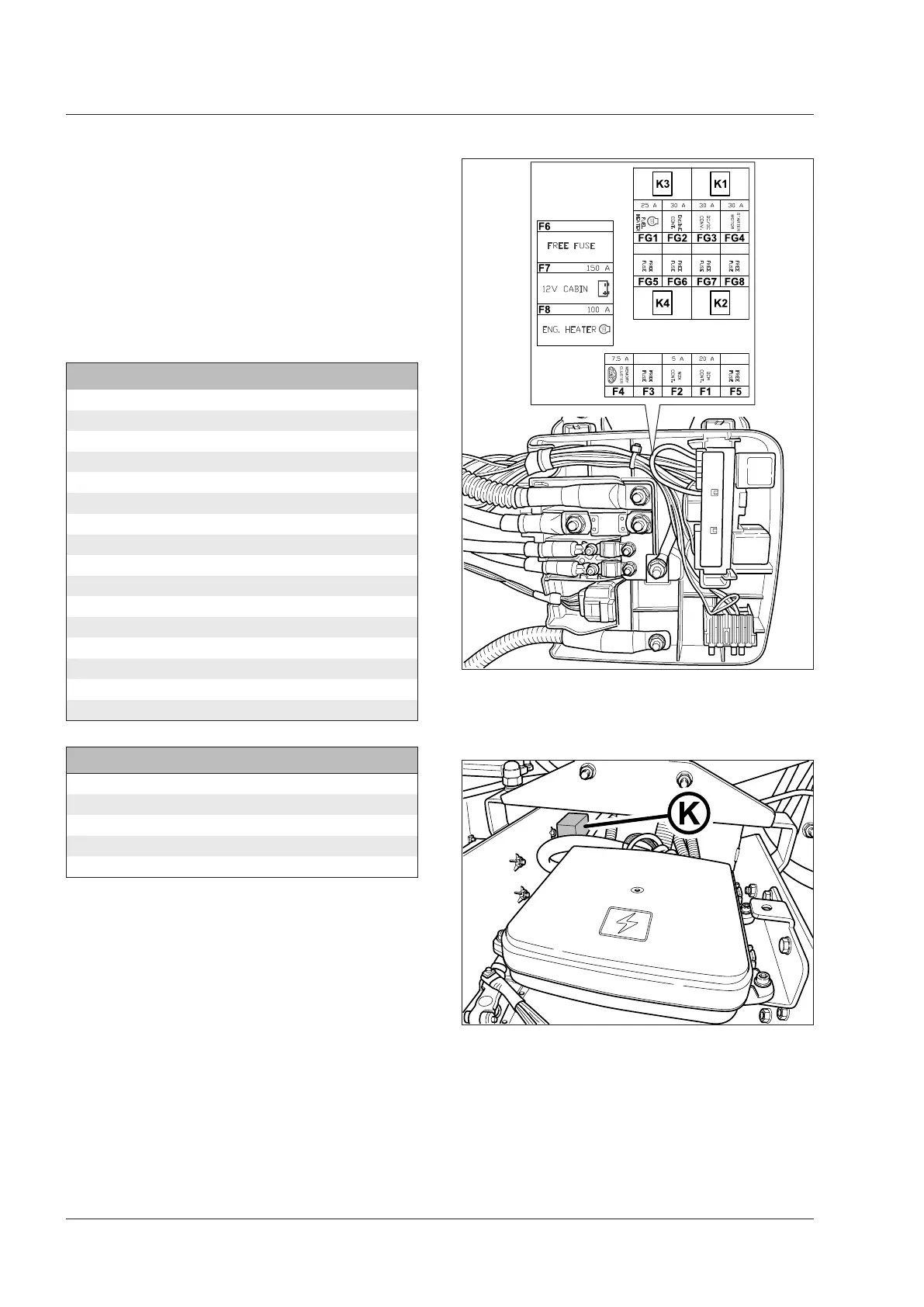

Fuse
User - Fig.8-11 Amp.
FG1 Fuel heater 25
FG2 Engine control unit 30
FG3 DC / DC converter 30
FG4 Starting 30
FG5 Empty -
FG6 Empty -
FG7 Empty -
FG8 Empty -
F1 DCM controller 20
F2 NOx controller 5
F3 Empty -
F4 S16 power 7.5
F5 Empty -
F6 Empty -
F7 Cab power 150
F8 Glow plugs 100
Relays Function - Fig. 8-11
K Grid Heater \(Fig. 8-12)
K1 Starter motor
K2 Start safeties
K3 Fuel heater
K4 NOx controller
Fig. 8-11
Fig. 8-12
