Fuses and relays in the cab
Fuses and relays are housed in the console behind the
driver's seat. To access the fuses or relays, just lift the
cover (1) or (2) as required.
NOTE: Before replacing a blown fuse with a new,
equivalent one, the cause that led to the fault should be
ascertained and removed.
WARNING: To carry out this operation, engage the first
gear, turn off the engine, engage the parking brake
and remove the ignition key.
Relays Function - Fig. 8-13 box 1
KB1 Auxiliary
KB2 Empty
KB3 Inner front field lights
KB4 Outer rear field lights
KB5 Inner rear field lights
KB6 Field lights on handgrips and bonnet
KD1 Park lock management.
KD2 A/C compressor
KD3 Air braking system
KD4 Revolving beacons
KD5 Field lights on mudguards and 7-pin socket
KD6 Brake lights feed line
Fuse User - Fig. 8-13 box 1 Amp.
FB1 A/C compressor 7,5
FB2 Ignition key 5
FB3 Outer front field lights 15
FB4 Empty -
FB5 Outer rear field lights 15
FB6 Inner rear and bottom field lights 20
FB7 High beams 15
FB8 Revolving beacons 15
FB9 Empty -
FB10 Suspended axle control unit 7.5
FB11 Front PTO 3
FB12
Key operated power unit, suspended axle
7.5
FB13 Key-operated hitch controller 5
FB14 Transmission controller, key-operated 7,5
FB15 Key-operated instrument cluster 7.5
FB16 A/C controller power, key-operated 5
FB17 Key-operated engine control unit 7.5
FB18 Diagnostics 5
FB19 Hitch controller 10
FB20 Transmission controller 15

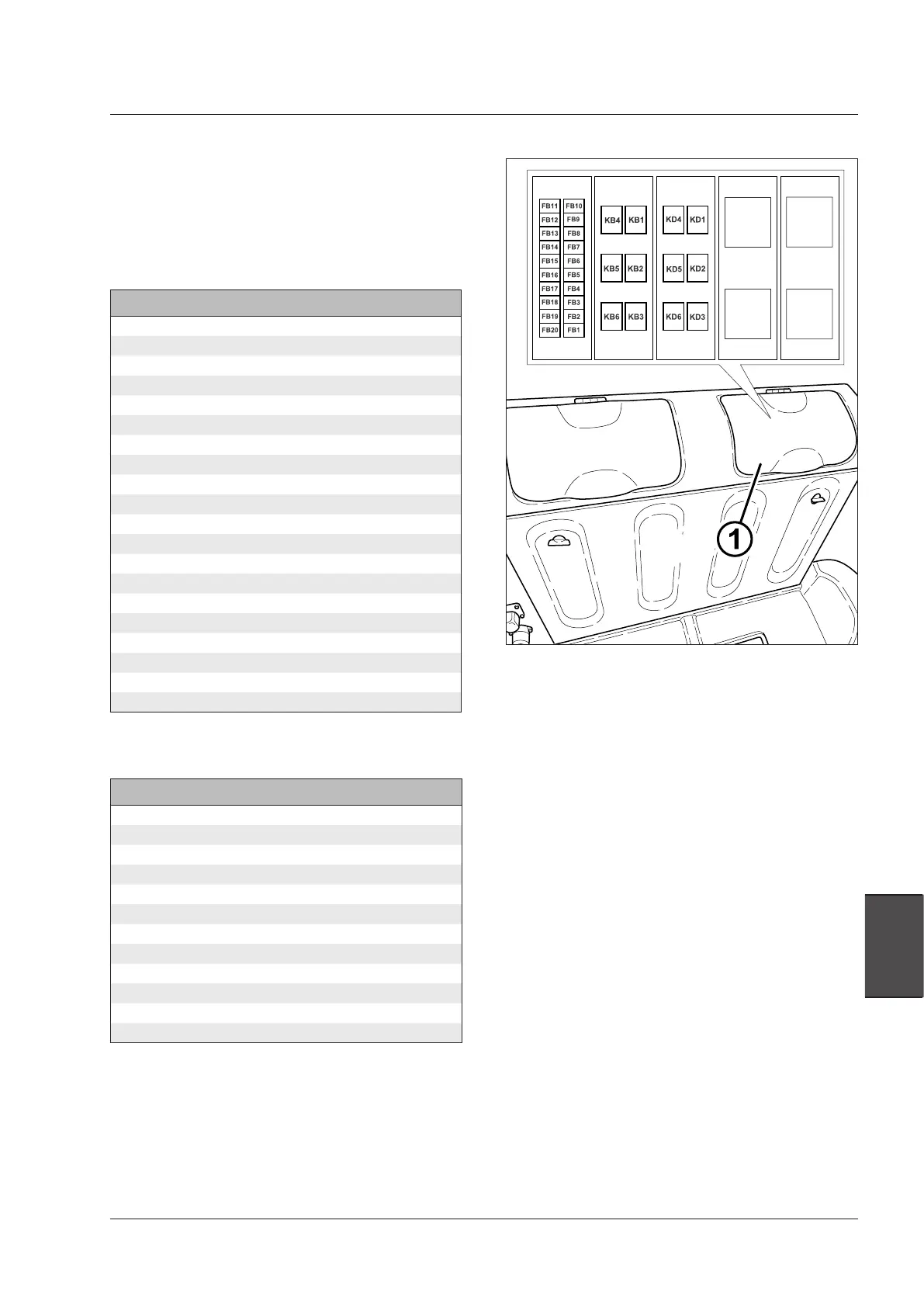

Fig. 8-13
