Argo McCORMICK X6.430 STD/LS - Replace Oil Filter on the Delivery of the Steering Circuit

7-56
Maintenance
X6 - P/N 6525032M1
STEP 35A
Replace oil filter on the delivery of
the steering circuit
WARNING: If you need to open the bonnet, follow the
procedure indicated under "How to open the bonnet".
WARNING: Always use the specific PPE for the opera-
tion concerned.
WARNING: Beware of burns caused by hot tractor and
engine parts. [4.1.n]
WARNING: Change the paper filter on the delivery
after the first 50 hours service and then after every
250 hours.
An indicator light on the instrument cluster comes on
when the filter should be replaced.
Change the element of the filter on the delivery of the
steering circuit:
1 - Unscrew the holder (1), remove and discard the filter
element (3).
2 - Fit the new filter element (3) into the cover of the
filter (2).
To prevent the filter element from being dirtied (with
mud, etc.) only completely remove the plastic protection
after fitting.
3 - Mount the holder (1) after having oiled its threaded
part, the washer (4) and seal (5) with clean new oil.
Take great care to fit the individual parts in the right
directions.
Change the seal (5) and the washer (4) every 1000
hours service or whenever necessary.
4 - Fully screw on the holder (1) by hand.
NOTE:After you have changed the filter, allow the engine
to run and make sure that there are no leaks. Check the
oil level at regular and top up if required.
NOTE: Use the oil prescribed in the Lubricants and Fuels
chart in the section 9 of this manual.
NOTE: Make sure that the hydraulic equipment con-
nected to the tractor's hydraulic circuit uses the same
type of oil. Use of different types of oil could damage the
hydraulic circuit.
IMPORTANT:Dispose of oil and filters in accordance with
local regulations. DO NOT drain the oil on the ground, into
a drain or put in a container that can leak. Be responsible
for the environment.

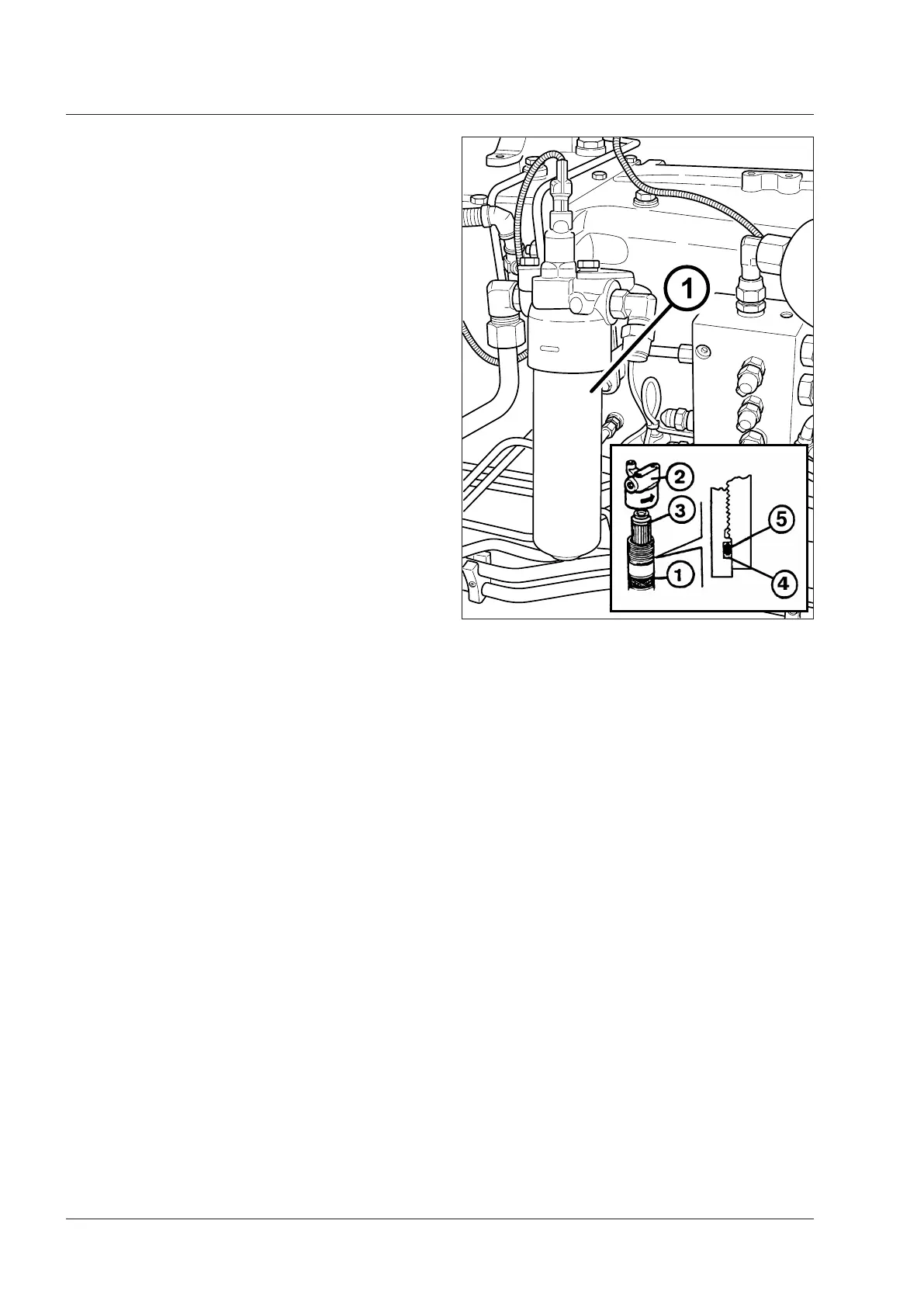

1 - Vessel
2 - Cover
3 - Filter element
4 - Washer
5 - Seal ring
