Argo McCORMICK X6.430 STD/LS - Controls on the Left-Hand Side of the Instrument Turret

Controls - Cab
3-17
3
P/N 6525032M1 - X6
CONTROLS
Controls on the left-hand side of the
instrument turret
1. Shuttle control lever
(Fig. 3-34)
A: Forward direction
N: Neutral selected.
R: Reverse direction.
P - Parking: Park Lock engaged *
* only in setups with Park Lock.
NOTE: For information about operation of the transmis-
sion, refer to the description of the instrument cluster in
"Instruments and controls".
2. Light switch.
(Fig. 3-34, 3-35)
A. All lights are OFF
The high beams can be operated in Flash mode.
B. Front parking lights, rear parking lights, license plate
lights and the blue "ambient" lamp on the cab ceiling
will illuminate. The backlighting also will come on to
illuminate the instrument cluster and all switches in
the cab.
C. Front parking lights, rear parking lights, license plate
lights and the "ambient" lamp on the cab ceiling will
illuminate. The backlighting also will come on to illu-
minate the instrument cluster and all switches in the
cab. The headlights will also come up.
NOTE: in both B and C positions the switch operates the
backlighting of all switches in the cab.

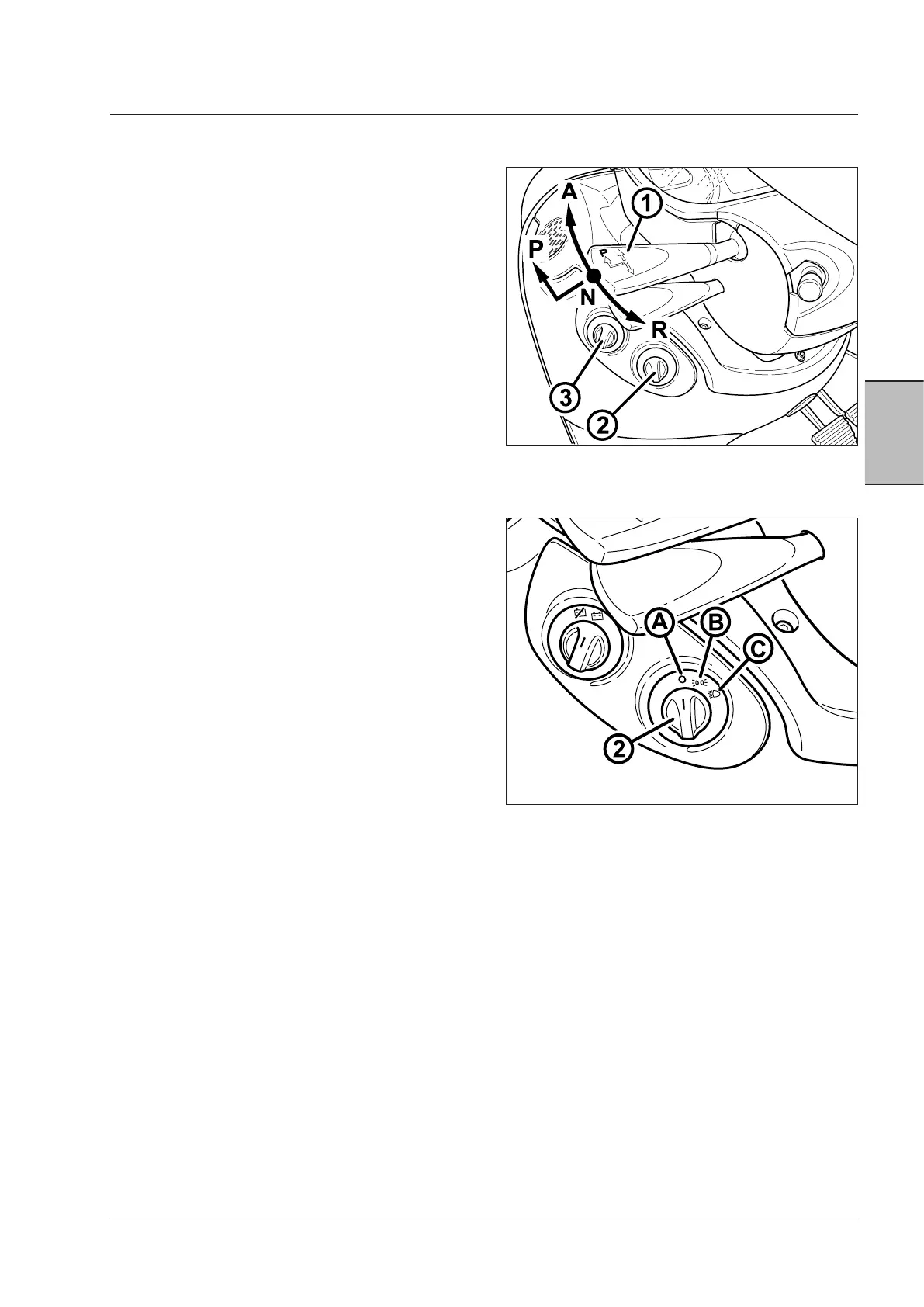

Fig. 3-34
Fig. 3-35
