Electrical system
X6 - P/N 6525032M1

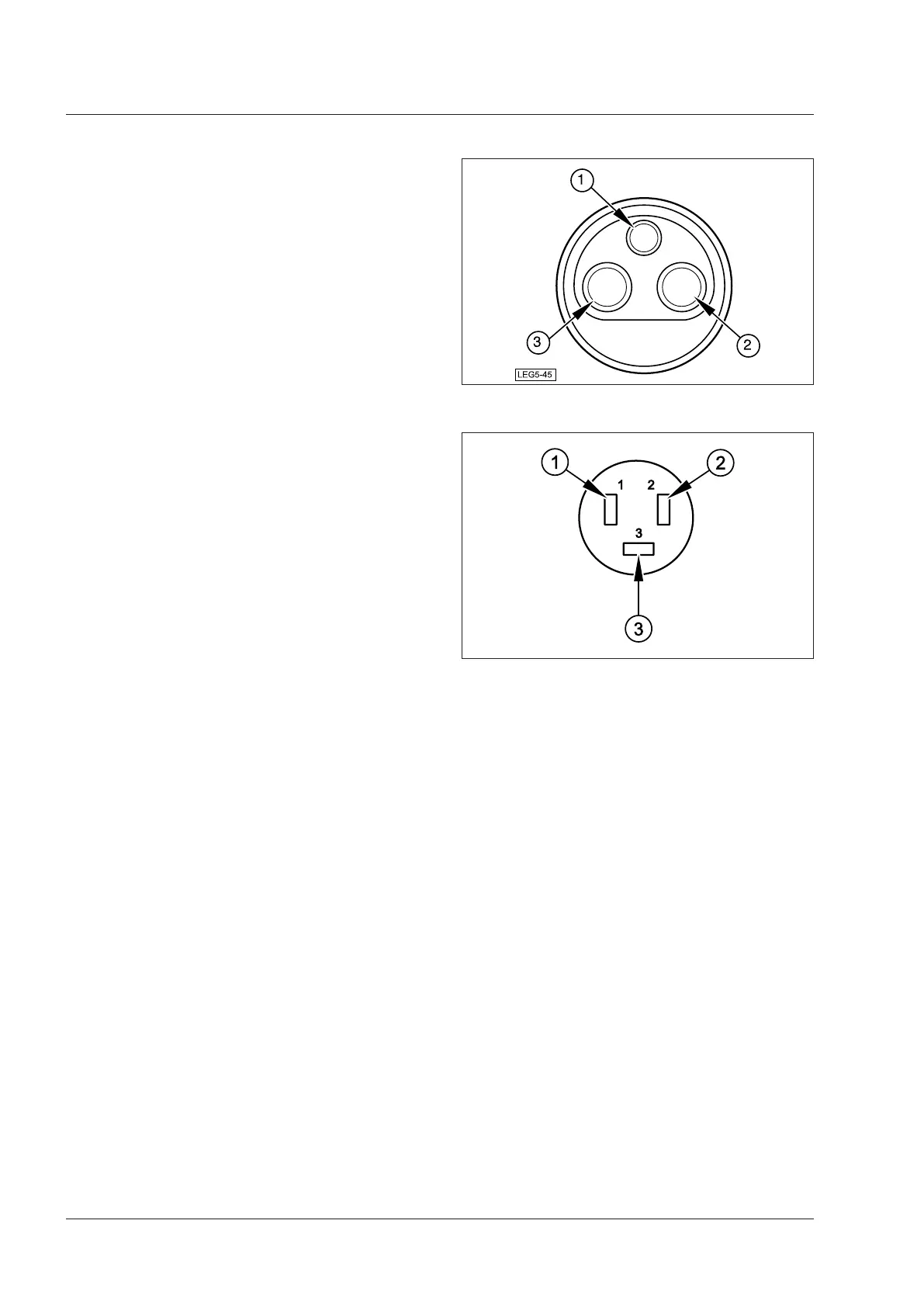

Electrical connections (Fig.8-18)
1- Positive, key operated - Max. load 5A
2- Negative
3- Positive direct to battery - Max. load 25A
WARNING: Always use the specific PPE for the opera-
tion concerned.
Fig. 8-18
Connections in versions for North America
(Fig.8-19)
1- Positive, key operated - Max. load 5A
2- Positive direct to battery - Max. load 25A
3- Negative
WARNING: Always use the specific PPE for the opera-
tion concerned.
Fig. 8-19
