Controls - Cab
3-23
3
P/N 6525032M1 - X6

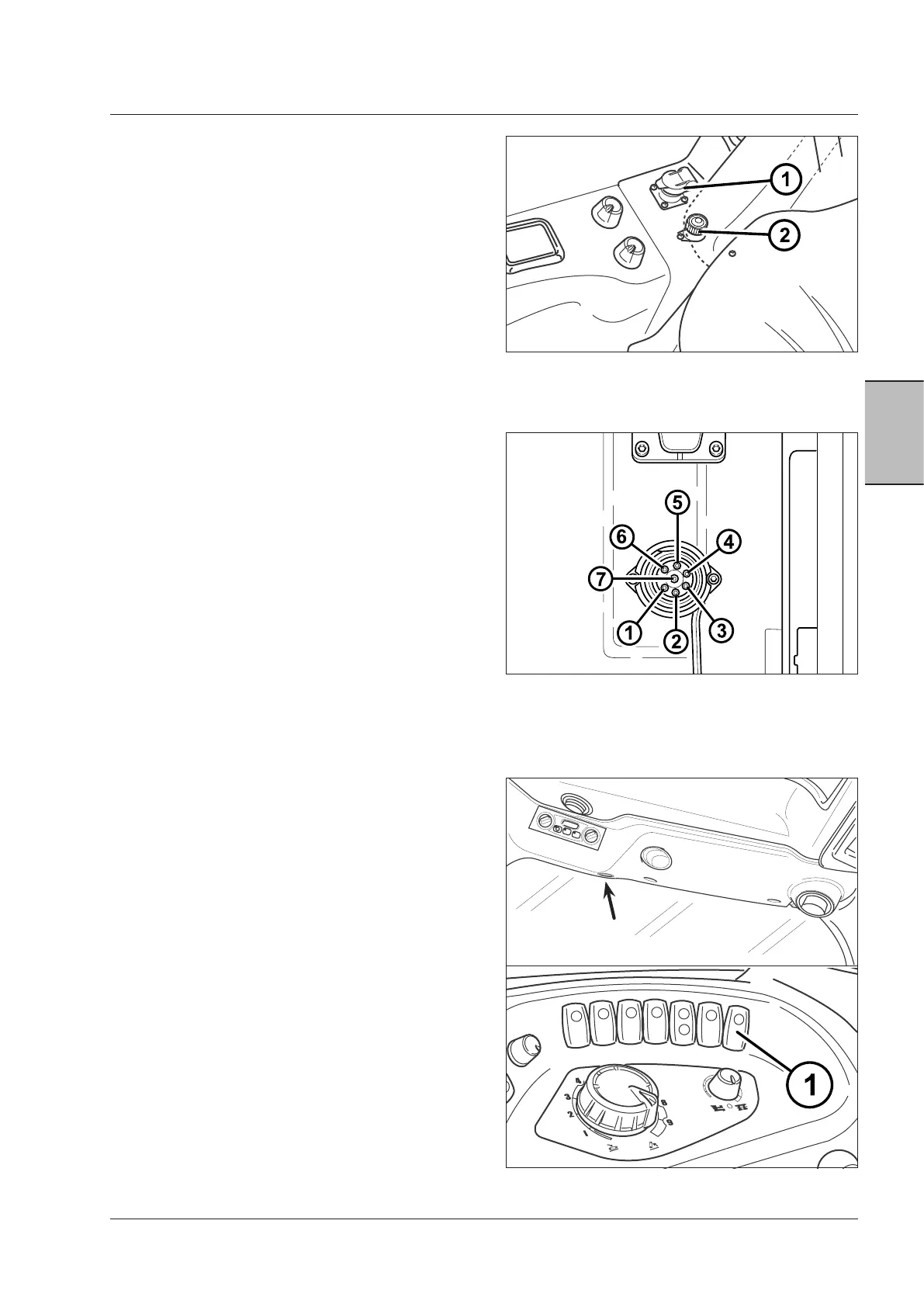

1. Auxiliary power socket (12 V) (Fig. 3-42)
2. ISO socket (to standard ISO 11786) (Fig. 3-42)
The socket (2) is mounted in the rear of the cab on the
right-hand side. The socket (2) allows for exchange of
information between an implement (e.g. a controller) and
the tractor according to international standard ISO 11786.
Signals on pins of the ISO 11786 socket (2 - Fig.
3-42)
Fig. 3-43
1. Real ground speed (detected by radar)
2. Nominal ground speed (detected on wheels)
3. PTO shaft speed
4. Engagement/disengagement of rear 3-point linkage
(hitch)
5. Rear three-point hitch position (hitch)
6. 5a supply
7. Common connection to ground
Fig. 3-43
Fig. 3-43B
Fig. 3-42 In cab, on the right side
Cab ceiling light
The button (1) on the right side control panel lights up the
cab ceiling light in the roof of the cab.
