TD 93021US
17 July 2017 / Ver
. PF3
102
Installation Guide
teleCARE IP

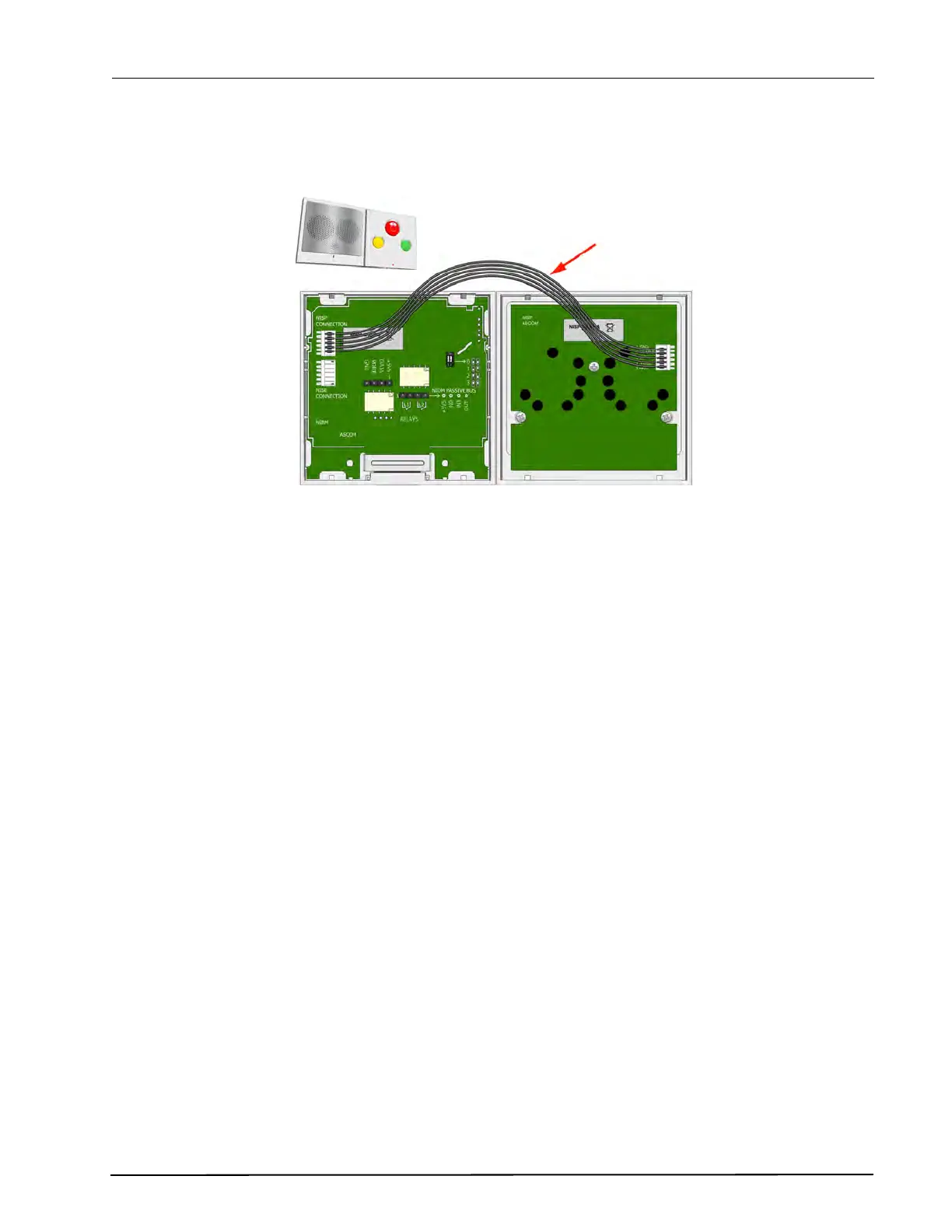

For a two-module combination w
ith the speech module mounted to the left side of the switch module
(viewed fr
om the front) the R190193 cable 8.0in (
200mm) is required.
Figure
137. Speech module to the left of the switch module
For a thr
ee-module combination the R190192 cabl
e (length 7.0in (170mm) and the R19019
3 cable
length 8.0in (200mm)
are both requ
ired
Cable R190193
Length 8.0 in.
(200mm)
106
108
Table of Contents
Default Chapter
4
Table of Contents
4
1 Introduction
6
General
6
Installation and Commissioning
6
Telecare IP with Speech
7
Compatible Ascom IM Handsets
7
System Overview Telecare IP with Speech
7
ESPA and TAP Paging System Interface
7
Innovaphone Voip Gateway
8
2 Practical Engineering Parameters
9
General Limitations
9
Network Expectations
9
Voip Requirements (Supplementary)
10
Telecare IP Compatible Ascom Handsets (Supplementary)
10
3 System LAN Cabling
11
Ethernet Switch
11
Ethernet Switch Installation – Seismic
11
Ethernet Switch Power
11
Ethernet Switch Operation
12
Ethernet LAN and Room Bus Cables
12
Ethernet LAN Cable
13
Room Bus Cable
13
Recommended Ethernet LAN Cable
13
Room Bus Cable Considerations
13
4 System Power
15
24Vdc / 3 Amp Power Supply (Standard)
15
Power Supply (Standard) Installation
15
Power Supply (Standard) Operation and Maintenance
16
Adjust the Voltage to 26.4 VDC
16
24Vdc / 8 Amp Power Supply (Seismic)
17
Power Supply Board LED Diagnostics (Red DC / Green AC
17
Power Supply Board LED Diagnostics (Red BAT)
17
Power Supply (Seismic) Installation
18
Power Supply (Seismic) Operation and Maintenance
19
Control Circuit Board LED Diagnostics
20
Secondary Power
21
Telecare IP Power Supply Wiring
21
Total Secondary Power at 24Vdc
21
Telecare IP 24Vdc Power Supply Wiring
21
Power Supply Unit (24Vdc) with Multiple Power Buses
22
Power Supply Basic Installation
22
Multiple Power Buses
22
LAN and Room Bus Cables with Power Supply (24Vdc)
22
Power Supply for Systems with Slave Corridor Lamps
23
Maintenance and Service
23
5 Control Equipment
24
Preparation
24
Room Controller (NIRC3)
24
The Telecare IP Room Controller with Corridor Lamp
24
Room Bus Addresses
25
Room Bus Addresses and Applications
25
NIRC3 Parts
26
Blank Front Cover for the Room Controller
26
NIRC3 Room Controller with Blank Front Cover
26
Installing the Room Controller
27
Removing the Room Controller Printed Circuit Board
27
Separating the Top Section from the Housing
27
Removing the Circuit Board from the Housing
27
Room Controller Housing
28
Mounting the Housing over a Back Box
28
Positioning the Screws
28
Mounting the Housing Without a Back Box
29
Fixing the Housing
29
Mounting the NIRC3 Housing Without a Back Box
29
Preparing the Room Bus and Power Cables
30
Stripping the Outer Jacket of the Cables
30
Stripping and Positioning the Cables for the NIRC3
30
Room Controller (NIRC3) Connections
31
Room Controller (NIRC3) PCB Electrical Connections
31
Room Controller (NIRC3) Printed Circuit Board Back View
32
NIRC3 Status Information
32
System Faults
33
Fault Indications on the NIRC3 Yellow Lamp
33
Voice Piggy Back (NIVP)
34
Connecting the Voice Piggy Back Module to the NIRC3
34
Mounting the Voice Piggy Back Module on the NIRC3
34
Voice Piggy Back Module Mounted on the NIRC3
35
Connection Terminals
36
4-Pole Connector Terminal (NICT-4AA)
36
4-Pole Connector Terminal with the Room Bus
36
Preparing the Wires for the 4-Pole Connector Terminal
36
Inserting a Wire in the Connection Point
37
Connector Terminal Complete with Four Wires
37
Disconnecting a Wire from the Connector Terminal
37
Removing a Wire from a Connection Point
37
2-Pole Connector Terminal (NICT-2BA)
38
Preparing the Wires for the 2-Pole Connector Terminal
38
Stripping the Wires for Insertion in the Connection Point
38
Pole Connector Terminal Wiring
38
Connector Terminal with Looped Wiring
39
Connecting the IP Room Controller Printed Circuit Board
40
Connecting the 24Vdc Power Supply
40
Connecting the Room Bus
40
Connecting the 24Vdc Power Supply to the NIRC3
40
Connecting Multiple Room Buses
41
Connecting a Room Bus to the NIRC3
41
Connecting Multiple Room Buses to the NIRC3
41
Connecting LAN Cable
42
Fully Wired IP Room Controller
42
Connecting the LAN Cable to the NIRC3
42
Fully Wired Room Controller - NIRC3
42
LED Lamp Boards (NILD2)
43
NILD2 - LED Lamp Board Front and Back View
43
NILD2 - LED Lamp Boards: White, Red, Green, Yellow and Blue
43
Auxiliary Lamp Connection - NILD2
44
Disabling the Leds
44
Disabling the Leds of the NILD2-GAA
44
Connecting the Wires to the NILD2-GAA
45
Connecting the Wires of an External Lamp
45
Installing the LED Lamp Boards on the IP Room Controller Board
46
LED Through-Board Connectors and Guide Marks
46
Plugging LED Lamp Board into the Room Controller PCB
46
Auxilliary Lamp Connection
47
NIRC3- Room Controller PCB with 4 LED Lamp Boards
47
External Corridor Lamp Connections through the NILD2-GAA
47
Corridor Lamp (NICL2)
48
The Telecare IP Corridor Lamp
48
Corridor Lamp (NICL2) Parts
48
Installing the Corridor Lamp
49
Removing the Corridor Lamp Printed Circuit Board
49
Corridor Lamp Housing
50
NICL2 - Corridor Lamp Electrical Connections
50
IP Room Controller Housing
50
NICL2 - Corridor Lamp PCB Component Side Electrical Connections
50
4-Pole Connector Terminal
51
Connecting the Corridor Lamp Printed Circuit Board
51
Pole Connector Terminal with the Room Bus
51
Connecting the NICL2 - Corridor Lamp
51
LED Lamp Boards for the Corridor Lamp
52
Connecting the LED Lamp Boards
53
Plugging LED Lamp Board into the Corridor Lamp PCB
53
Corridor Lamp PCB with 4 LED Lamp Boards
53
External Corridor Lamp Inputs
54
External LED Inputs to the NICL2 - Corridor Lamp
54
Disabling the Room Bus Section of the NICL2
54
Cut Conductor “S1”
54
Restoring the Room Bus Section on the NICL2
55
Restoring to the Default NICL2 Configuration
55
System Manager (NISM2)
56
NISM2 Electrical Connections
57
Connecting the Ethernet LAN Cable
57
NISM2 Power Supply
58
Setting the Type of Power Supply in the NISM Advanced Settings
58
NISM Power Supply Connection Settings
58
NISM Power Indicator LED
59
Connecting a Paging System to a COM Port
59
Paging System Selection
60
6 Peripherals
61
Installation Instructions
61
Preparation
61
Backplates and Surface Mounting Spacer
62
Mounting the Backplate on a Back Box
62
Plastic Back Box Manufacturer/Model/Part Number
62
Mounting the Backplate (or Spacer) on the Back Box
63
Securing the Backplate (or Spacer) to the Back Box
63
Surface Mounting Spacer
64
Mounting the Spacer on a Back Box
64
Switch Module Electrical Connections
65
Connecting the Switch Module
65
Connecting the Wire in the 4-Pole Connector Terminal
66
Stripping the Wires for Insertion in the Connection Terminal
66
4-Pole Connector Terminal with Looped Wiring
67
Mounting the Switch Module to the Backplate
68
Mounting the Switch Module to the Surface Mounting Spacer
69
Dismantling the Switch Modules
70
Suitable Screwdriver for Dismantling Switch Modules
70
Inserting the Screwdriver
70
Removing the Switch Module from the Back Plate
70
Dismantling a Switch Module from a Spacer
71
Removing the Switch Module from the Backplate
71
Dip Switch Settings
72
Active Switch Module DIP Switch Location
72
Bedside Module (NIBM2)
73
NIBM2 Electrical Connections and DIP Switch Settings
73
Bedside Module NIBM2: Front and Back View
73
Bedside Module NIMB2 Electrical Connections and Address Setting
74
Light Switching Relay Maximum Load and Surge Damping Diode
75
Light Switching Relay with Surge Damping Diode
75
External Call Contact with Call Lamp Output
76
External Call Contact with Call LED
76
Medical Rail Socket (NIMS2)
77
Medical Rail Module NIMS2 (Top, Front, Bottom)
77
NIMS2 Electrical Connections and DIP Switch Settings
78
Medical Rail Socket NIMS2 Electrical Connections and Address Setting
78
NIMS2 Room Bus Address Setting
79
External Call Contact with Call LED Output
80
Mounting the Medical Rail Socket
81
Medical Rail Socket Mounting and Cut-Out Dimensions
81
Door Side Module (NIDM)
82
Door Side Module Electrical Connections and DIP Switch Settings
82
Pull Cord Module - Active (NIPC-W3A)
83
Pull Cord Module Electrical Connections and DIP Switch Settings
83
Assembling and Attaching the Pull Cord
84
Pull Cord Module Electrical Connections and Address Setting
84
Toilet Cancel Module - Active (NITC-XXA)
85
Toilet Cancel Module (Active) Electrical Connections
85
Pull Cord Module - Passive (NIPC-XXP)
86
Passive Pull Cord Module 3 Buttons
86
Pull Cord Module (Passive) Electrical Connections
86
Toilet Cancel Module - Passive (NITC-XXP)
87
Passive Pull Cord Module Electrical Connections
87
Passive Toilet Cancel Module
87
Passive Toilet Cancel Module Electrical Connections
88
NIPC2 Pull Cord Module (Exploded/Assembled)
88
6.12 Pull Cord Module (NIPC2) Active and Passive
88
Mounting the NIPC2 Pull Cord Module
90
Examples of Suitable Locations for Mounting the NIPC2
90
Positioning the Back Box for the Pull Cord Module
91
NIPC2 Back Plate
91
Positioning the Back Box on a Tiled Wall
91
Mounting the NIPC2 Backplate
92
Drilling the Backplate Mounting Holes
92
Mounting the Backplate on the Wall
92
Fixing the Backplate to the Wall
92
Preparing the Cable for the Pull Cord Module
93
Room Bus Electrical Connections
94
Room Bus Address DIP Switch Settings
94
Room Bus Connector and DIP Switch Location
94
Passive Bus Connector Location
95
Mounting the NIPC2 Pull Cord Module to the Backplate
96
Cable of the Pull Cord Module with the 4-Pole Connector
96
Connecting the Room Bus to the Switch Module
96
Mounting the Switch Module on the Backplate
97
Tightening the Pull Cord Fixing Screws
97
Duty Selector (NIDS)
99
Duty Selector Front and Back View
99
Duty Selector Electrical Connections
100
Auxiliary Inputs
101
Card Reader (NICR)
102
Card Reader Front and Back View
102
Card Reader Electrical Connections
103
NICR Room Bus Address
103
Card Reader Auxiliary Connections
104
Relay Connections
104
Monitoring Connections
104
Typical Installation with Card Reader
104
NICR Auxiliary Connections
105
Speech Module (NISP)
106
Speech Module (NISP) Front and Back View
106
Connecting the Speech Module
106
Speech Module to the Right of the Switch Module
106
Speech Module to the Left of the Switch Module
107
Room Display (NIRD)
108
Room Bus with Passive Peripheral Bus Electrical Connections
109
Room Display Backplate (Short)
110
Mounting the Room Display Backplate
110
Room Display Combined with the Speech Module
111
Room Display Backplate (Long)
112
Mounting the Backplate and Installing the NIRD and NISP
112
Inserting the Connection Cable through the Backplate
112
Mounting the Room Display Long Backplate
113
Connecting the NISP and Mounting It on the Backplate
113
Connecting the NIRD to the NISP and Connecting the Room Bus
114
Mounting the NIRD on the Backplate
114
Television Interface Module: Front and Back View
115
Television Audio Connections
115
General Considerations
115
6.17 Television Interface Module
115
Television Interface Module Electrical Connections
116
Sunblind Control Module Electrical Connections
117
6.18 Sunblind Control Module
117
7 External Inputs
119
Switch Modules Compatible with NICB
119
Other Switch Modules with External Inputs
119
Connection Board (NICB)
119
Preparation
119
NICB-Kit
120
Connection Board Kit NICB-AAA
120
Product Label on the Connection Board
120
Product Label on the NICB-AAA
120
Connection Board
121
External Contacts
121
NICB Connected to External Contacts
122
Bed Module (NIBM2) and Pull Cord Module - Active (NIPC-XXA)
123
Door Side Module (NIDM) and Toilet Cancel Module - Active (NITC-XXA)
124
Connecting to the NICB
124
Room Display (NIRD)
127
8 Wireless Functionality
130
General
130
Wireless Telecare IP and Hard-Wired Telecare IP Example
130
Principle of the Telecare IP with Wireless Functionality
131
Compatible with the NU Style Wireless Module
132
Principle of the Telecare IP with Wireless Functionality
132
Location Based - Using LF Beacons
133
Location Based Wireless Functionality
133
Telecare Wireless with Speech
133
Telecare Wireless with Speech
134
Wireless Nurse Call Example with Speech - Static Mode
134
“Static” and “Dynamic” Modes
134
Active Location Beacon
135
Dynamic Mode
135
NILF Beacon Modes
135
Passive Location Beacon
135
Speech Handling Overview
136
NIRC3 Base Station Vertical Coverage
137
RF Planning Considerations
137
Telecare IP Wireless Planning
137
NIRC3 Base Station Horizontal Coverage
138
Testing the NIRC3 Base Station Coverage Area
138
Coverage Test Procedure
139
NIRC3 with USB Stick for RF Coverage Testing
139
LF Planning Considerations
140
Reduced LF Coverage Minimizing Disturbance
140
Wall Mounted NILF Vertical Coverage
140
Master and Slave NILF Coverage
141
Wall Mounted NILF Horizontal Coverage
141
NILF Range Test
142
Telecare IP Wireless Components
142
Full Wireless Infrastructure Example
143
Wireless Infrastructure
143
IEEE 802.15.4 Versus 802.11 (Wi-Fi)
144
Principle of the Wireless Infrastructure
145
Wireless Infrastructure Principle
145
Wireless Infrastructure RF Planning Considerations
145
NUREP Wireless Repeater
147
Telecare IP Wireless Components
147
Wireless Repeater - NUREP
147
NUREP Electrical Connections
148
Status LED Colors
148
Connect the External Power Supply
149
Insert the Batteries
149
NUREP Battery Placement (Optional)
149
NUREP External Power Supply Connection
149
Example of an Outdoor Box with Repeater
150
Outdoor Box
150
Wireless Gateway
151
Wireless Repeater Consisting of an NIRC3 and a NUREP
151
Wireless Repeater Electrical Connections for Wireless Gateway Usage
152
Example of the USB Connection from NIRC3 to NUREP
153
NUREP - NIRC3 Interconnection
153
USB Connection between NIRC3 and NUREP
153
NUWBM3 Electrical Connections
154
NUWBM3 Wireless Active Bedside Module
154
Batteries Inserted into Battery Holder
155
NUWBM3 Battery Connections
155
Assemble the NUWBM3
156
Mount the NUWBM3 Onto the Spacer
156
External 5 VDC Connection
157
NUWBM3 Assembled
157
NUWBM3 External Power Supply Connection (Optional)
157
NUHS1B Handset Connected to the NUWBM3
158
NUHS1B Handset Connection
158
Remove the NUWBM3 from the Spacer
158
Connecting the Transceiver Module
159
NIRX Telecare IP Transceiver
159
Piggyback Mounting of the Transceiver Module on the NIRC3 and NIFX
159
Transceiver Piggyback Module (NIRX)
159
Connecting the NIVP Module
160
NIVP Voice Piggyback Module
160
Voice Piggyback (NIVP) Extension Connectors
160
Connecting an External Alarm
161
Connecting an External Alarm Contact to the NIFX
161
NIFX Fixed Transceiver
161
Handset Connection
162
NIPH2-A1A Handset Connected to the NIFX-1BB
162
Replacing the Batteries
162
NITX Mobile Transceiver
163
Using the NITX-AAB Transceiver
163
Using the NITX-BAB Transceiver
163
Removing the Rear Cover
164
Replacing the Battery
164
Using the NITX-BBB Transceiver
164
9 Installation Examples
164
Remove the Circuit Board
165
Removing the Old and Placing the New Battery
165
Transceiver Accessories
166
NUUTX Components
167
NUUTX Universal Transceiver
167
NUUTX Universal Transceiver Exploded View
167
NUUTX Window - Door Alarm Monitoring
168
Window - Door Alarm Monitoring
168
NUUTX Inputs
170
NUWIR Components
171
NUWIR Exploded View
171
NUWIR Wireless PIR Module
171
Fresnel Lens (Default) Orientation for Vertical Mount
172
NUWIR Orientation
172
Changing the NUWIR Sensitivity
173
Fresnel Lens Orientation for Horizontal Mount
173
NUWIR Sensitivity
173
IR Range Test
174
NUUTX NUWIR Battery Placement
174
To Place the Batteries in the NUUTX NUWIR
174
Mark the Location of the Mounting Holes
175
Align the NUUTX or NUWIR to the Top of the Bracket
176
Orientation of the Bracket
176
Snap Fit the NUUTX or NUWIR Onto the Bracket
177
NILF Installation
178
NILF Low Frequency Beacon
178
NILF Installation Example
179
Removing the Front Cover of the NILF
179
Drill the Two Holes with the Proper Drill
180
Mark the Holes for Drilling
180
Placing the NILF on the Door Post
181
Tightening the Two Screws
181
Correct Sequence for Placing an NIRX Onto the NILF Circuit Board
182
Mounting an NILF with NIRX
182
Low Frequency Beacon NILF Electrical Connections
183
NILF Electrical Connections
183
NIRX Placement
183
Placing the NIRX on the NILF Board
183
Antenna Connection
184
External Connections
184
External Connections - J2
184
NILF Internal Antenna Connected
184
NILF 12 Bit ID - DIP Switch Settings
185
NILF DIP Switch Settings
185
Output Power and Transmission Rate DIP Switch Settings
186
Master / Slave Beacon Interconnection
187
Master / Slave Mode DIP Switch Settings
187
NILF Master / Slave Interconnection
187
Beacon Mode
188
Beacon Mode DIP Switch Settings
188
Galvanically Separated Normally Closed Tamper Alarm Output
189
Tamper Alarm
189
NILF Power Supply
190
Placing the Batteries
190
Placing the Three 1.5V “C” (R14) Alkaline Batteries
190
External 24Vdc Power Supply Connection
191
External Power Supply Connection
191
2-Bed Room with Active Toilet Cancel and Active Pull Cord Peripherals
192
Installation Examples
192
Typical 2-Bed Room with Active Toilet and Shower Peripherals
192
Wiring for 2-Bed Room with Active Toilet and Shower Peripherals
193
2-Bed Room with Passive Toilet Cancel and Passive Pull Cord Peripherals
194
2-Bed Room with a Medical Rail Socket at each Bed
196
Bed Room with Medical Rail Sockets
196
Wiring for a 2-Bed Room with Medical Rail Sockets
197
Room Controller with Corridor Lamps (Master/Slave)
198
4-Bed Room with Speech
200
Duty Selector at a Staff Station
202
Staff Station with Duty Selector and Door Side Module
202
Wiring for Staff Station with Duty Selector and Door Side Module
203
Positioning of the Telecare IP Peripherals
204
Toilet Cancel Module and Pull Cord Module:
204
Bedside Module
205
Document History
206
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the ASCOM teleCARE IP and is the answer not in the manual?
Ask a question
ASCOM teleCARE IP Specifications
General
Brand
ASCOM
Model
teleCARE IP
Category
Emergency Phone
Language
English
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
