TD 93021US
17 July 2017 / Ver. PF3 154
Installation Guide
teleCARE IP
8.7.5 NIRX teleCARE IP Transceiver
The NIRX transceiver is a printed circuit module which is piggy back mounted on the NIRC3 room
controller and the NIFX fixed transceiver. The NIRX will adds wireless call functionality to the NIRC3 room
controller and the fixed transceiver. Optionally the NIRX can also be mounted on the NILF location beacon
for actively monitoring the state of the NILF, such as tamper and low battery alarm conditions.

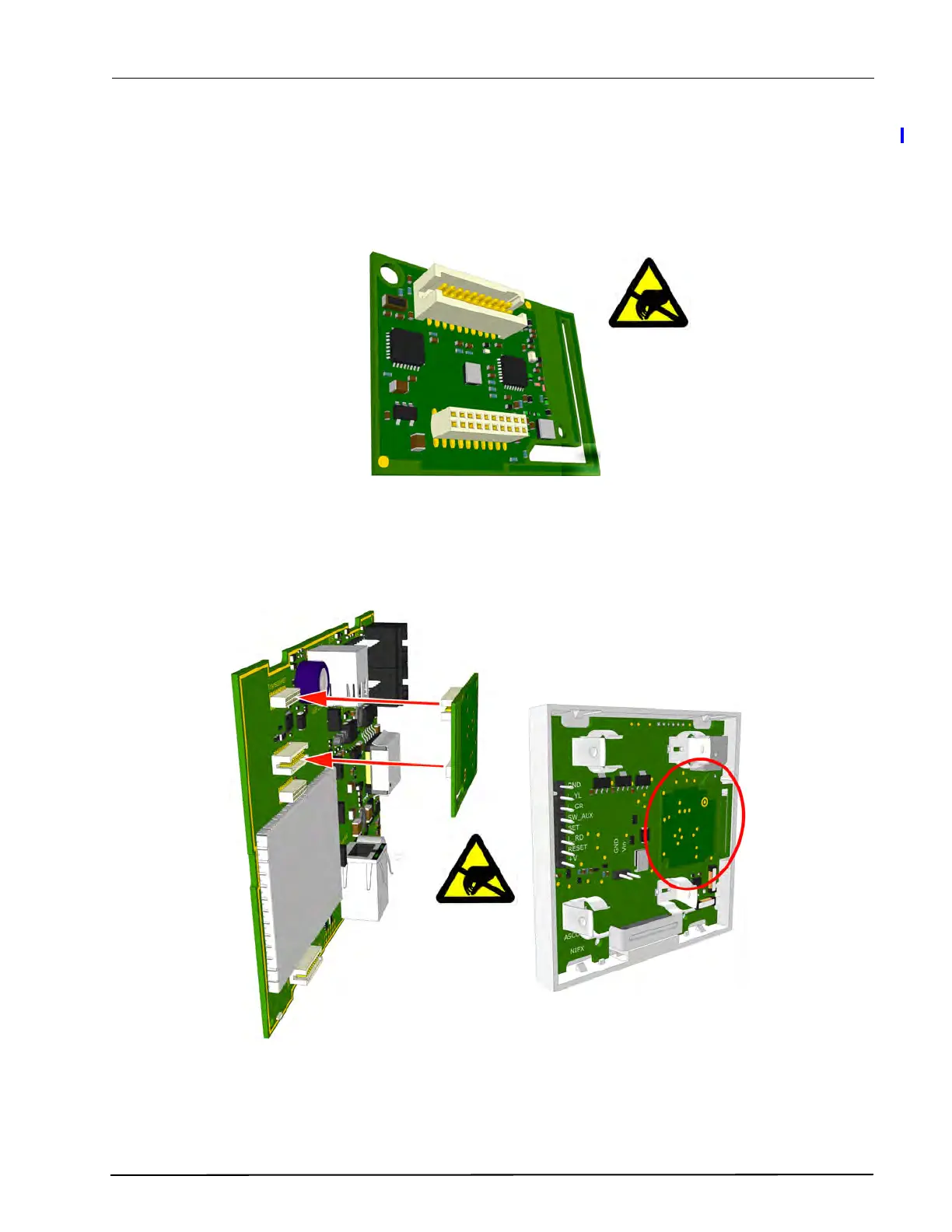

Figure 200. Transceiver piggyback module (NIRX)
8.7.6 Connecting the Transceiver Module
The NIRX is piggyback mounted on the NIRC3 room controller, on the NIFX fixed transceiver and on the
NILF low frequency beacon printed circuit boards:
Figure 201. Piggyback mounting of the transceiver module on the NIRC3 and NIFX
Note: The NIFX is delivered with an NIRX mounted from the factory.
NIRC3
NIFX
Factory
mounted
Optional
