ASCOM teleCARE IP User Manual

TD 93021US
17 July 2017 / Ver. PF3 36
Installation Guide
teleCARE IP

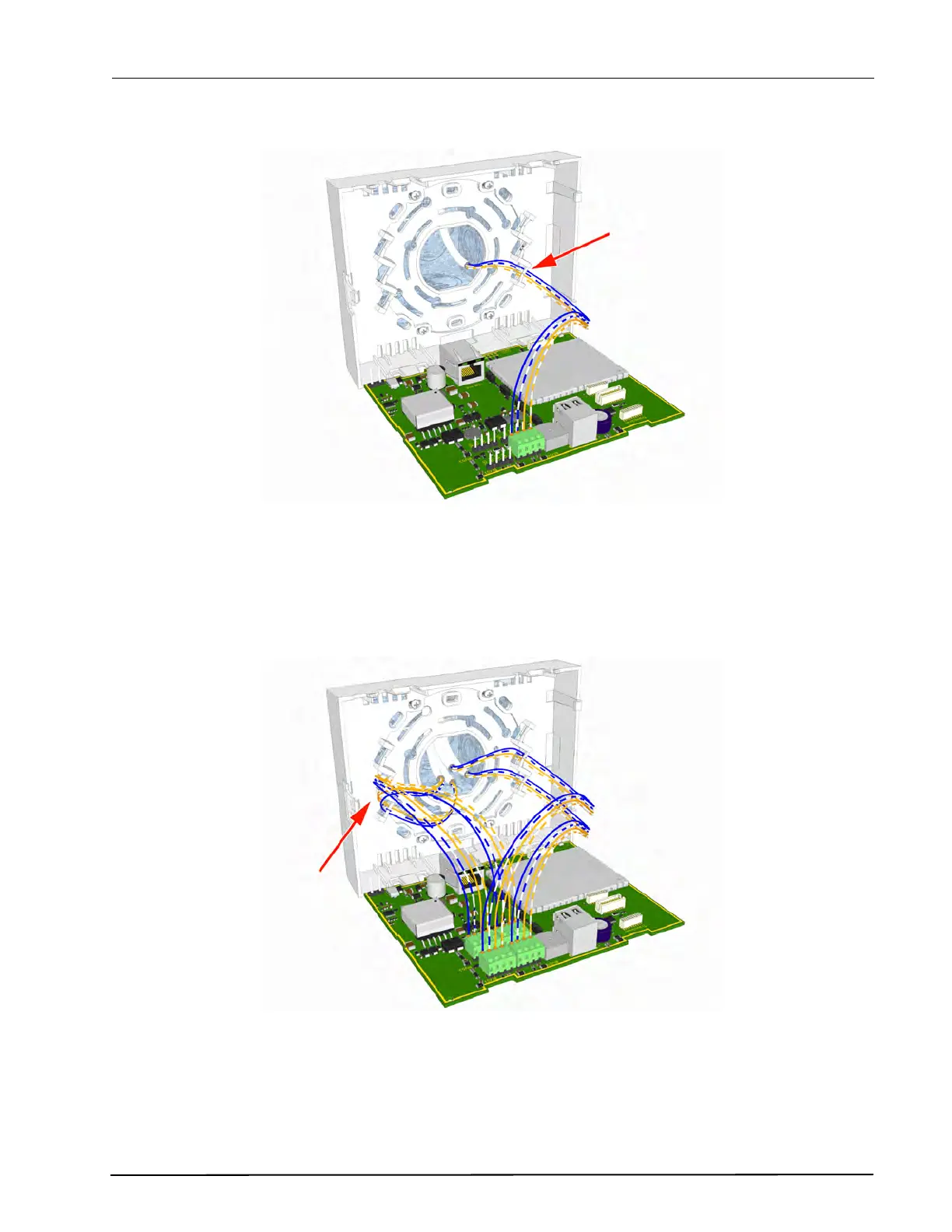

Figure 39. Connecting a room bus to the NIRC3
5.6.3 Connecting Multiple Room Buses
The IP room controller supports four room buses and each has a 4-pole connection terminal which is
wired as described in section 5.5.1 on page 31. The connection points on the room controller PCB for
the room buses are shown in section 5.3.2 on page 26.
Figure 40. Connecting multiple room buses to the NIRC3
Use the Wire
Holding Clip
Use the Wire
Holding Clips
