TD 93021US
17 July 2017 / Ver. PF3 166
Installation Guide
teleCARE IP
8.7.11 NUWIR Wireless PIR Module
The motion sensor or PIR (passive infrared) sensor (NUWIR) is used to detect resident movement. For
example the NUWIR can be used in the toilet, to indicate that a resident is in the toilet. Software will
determine when to alert the caregivers. The NUWIR is battery operated with a battery lifetime of > 3
years.

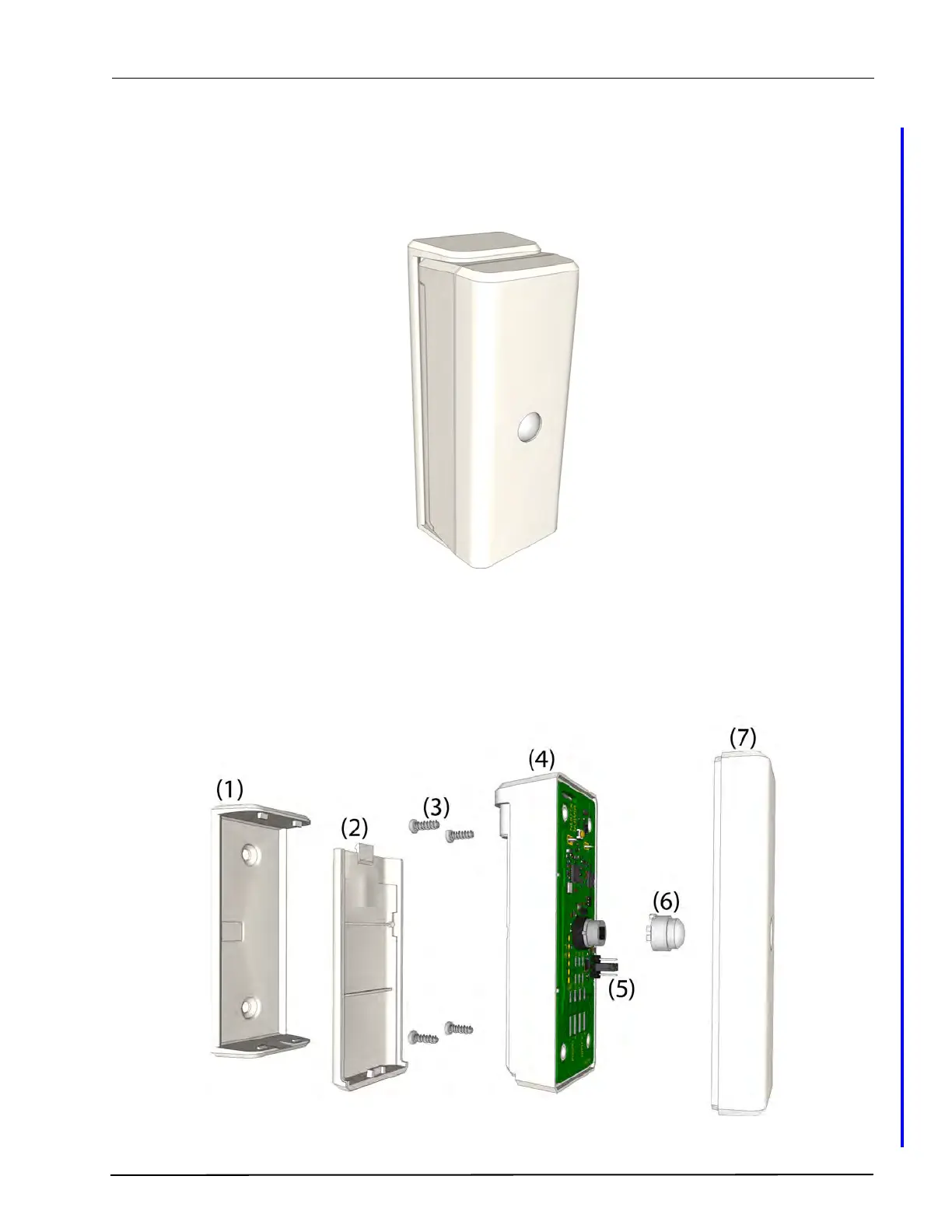

Figure 217. NUWIR PIR (Passive Infra-Red) sensor
The NUWIR can be used with the automated check-in functionality to automatically perform a resident
check-in based on the residents movement.
NUWIR Components
Figure 218. NUWIR exploded view
