TD 93021US
17 July 2017 / Ver. PF3 86
Installation Guide
teleCARE IP
6.12.2 Positioning the Back box for the Pull Cord Module
The NIPC2 pull cord module must be mounted on a smooth flat surface in order to ensure that it is splash
water proof in accordance with IP44. The ideal surface is a ceramic tiled wall with the back box for the
NIPC2 situated in the center of a tile so that the pull cord module backplate does not sit over a gap
between tiles, as shown in the following illustration:

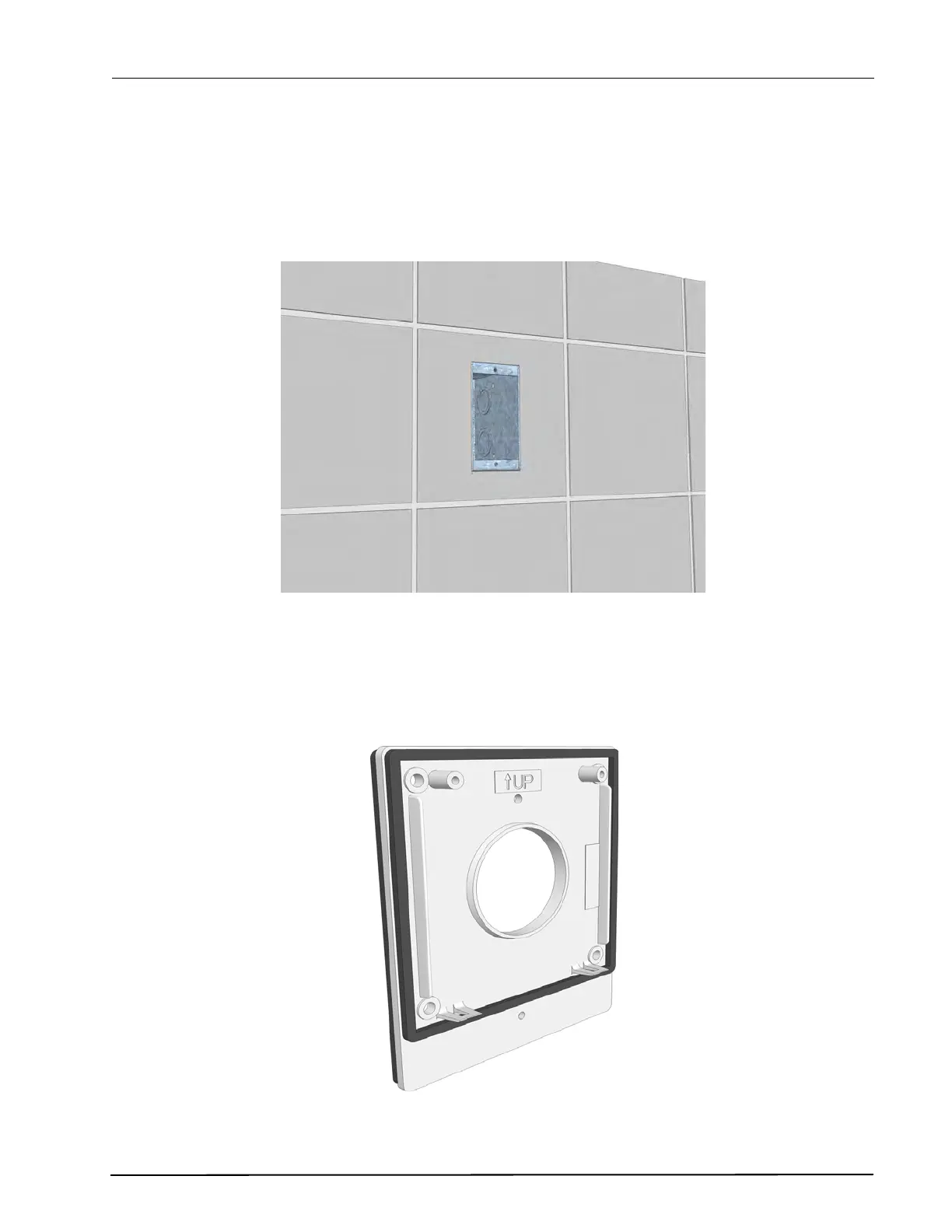

Figure 113. Positioning the back box on a tiled wall
6.12.3 NIPC2 Back plate
The NIPC2 back plate has a urethane foam gasket on both sides to prevent water entering the pull cord
module. With the NIPC2 switch module mounted correctly on the back plate the switch module
conforms to the ingress protection rating of IP44.
Figure 114. NIPC2 backplate
