TD 93021US
17 July 2017 / Ver. PF3 23
Installation Guide
teleCARE IP
5.2.6 Room Controller Housing
The room controller housing is designed to be surface mounted. It can be mounted over a back box or
fixed directly on to a wall surface. The same housing is used for the IP room controller with LED lamps
and with blank cover and for the corridor lamp.

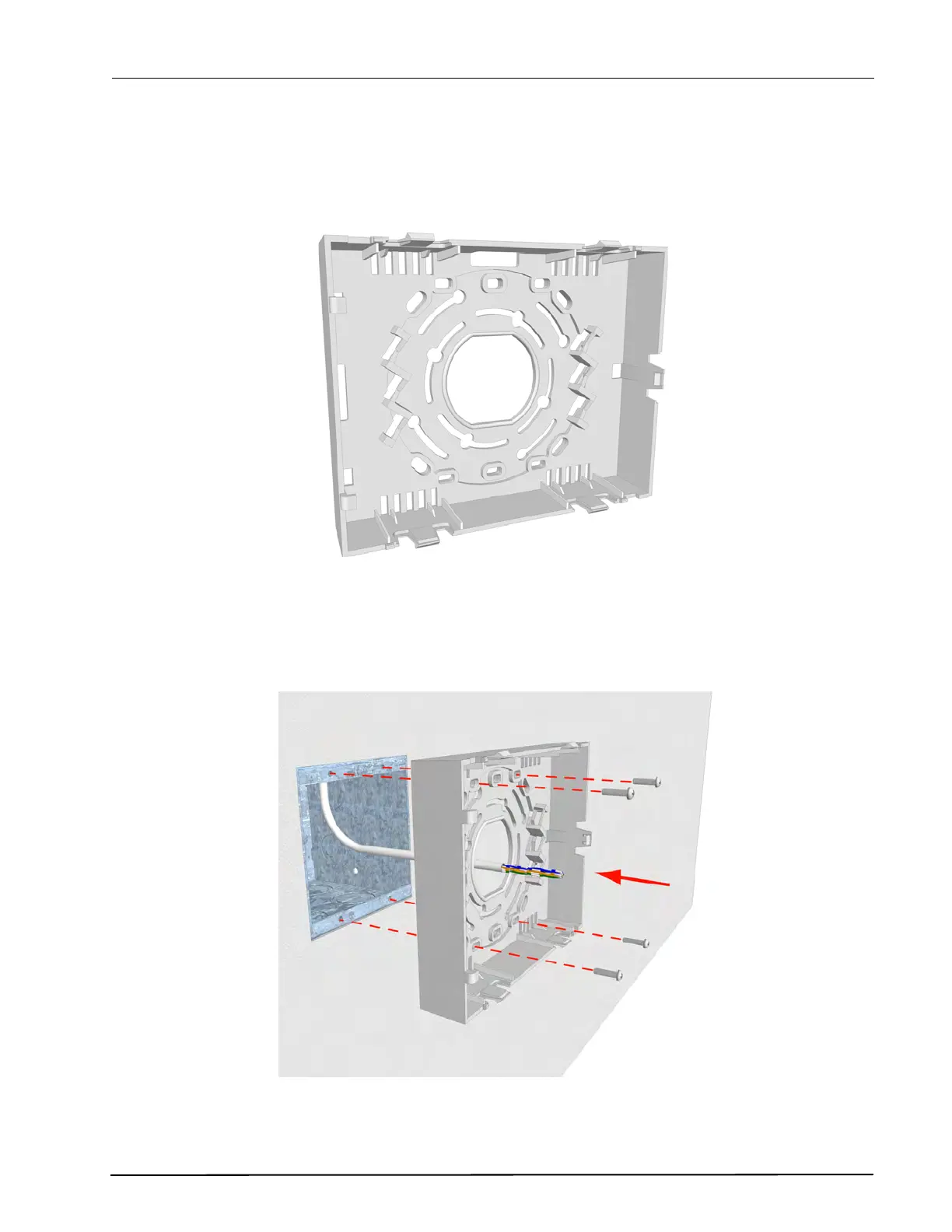

Figure 16. Room controller housing
5.2.7 Mounting the Housing over a Back Box
Place the housing over the back box so that the long sides are at the top and bottom. Pass the four
screws through the appropriate holes in the base of the housing, as shown in the following illustration:
Figure 17. Positioning the screws
