TD 93021US
17 July 2017 / Ver
. PF3
163
Installation Guide
teleCARE IP
9.3
2-Bed Room with a Medical Rail Socket at each Be
d

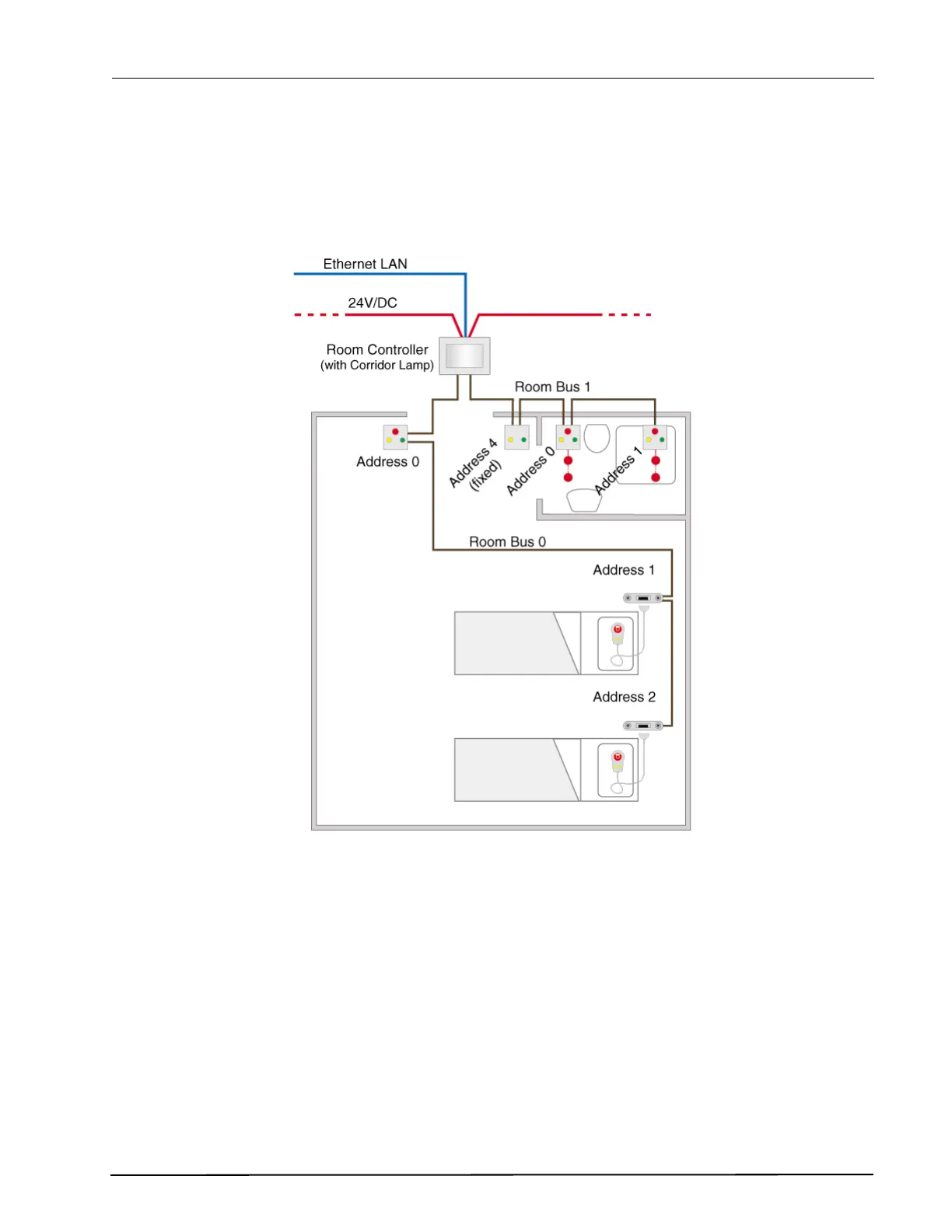

The example shown in the Illustration below is a 2-be
d room with peripherals
for the toilet and shower
.
Each bed is equipped with a medical ra
il socket (which
is usually installed in
the medical rail above
the
bed) and a handset.
Figure
177. 2-Bed Room with medi
cal rail sockets
195
197
