The multi color status LED on the NIRC3 will indicate the following:
System Faults
System faults like LAN failure, disconnected module will be visible through the yellow lamp on the NIRC3.

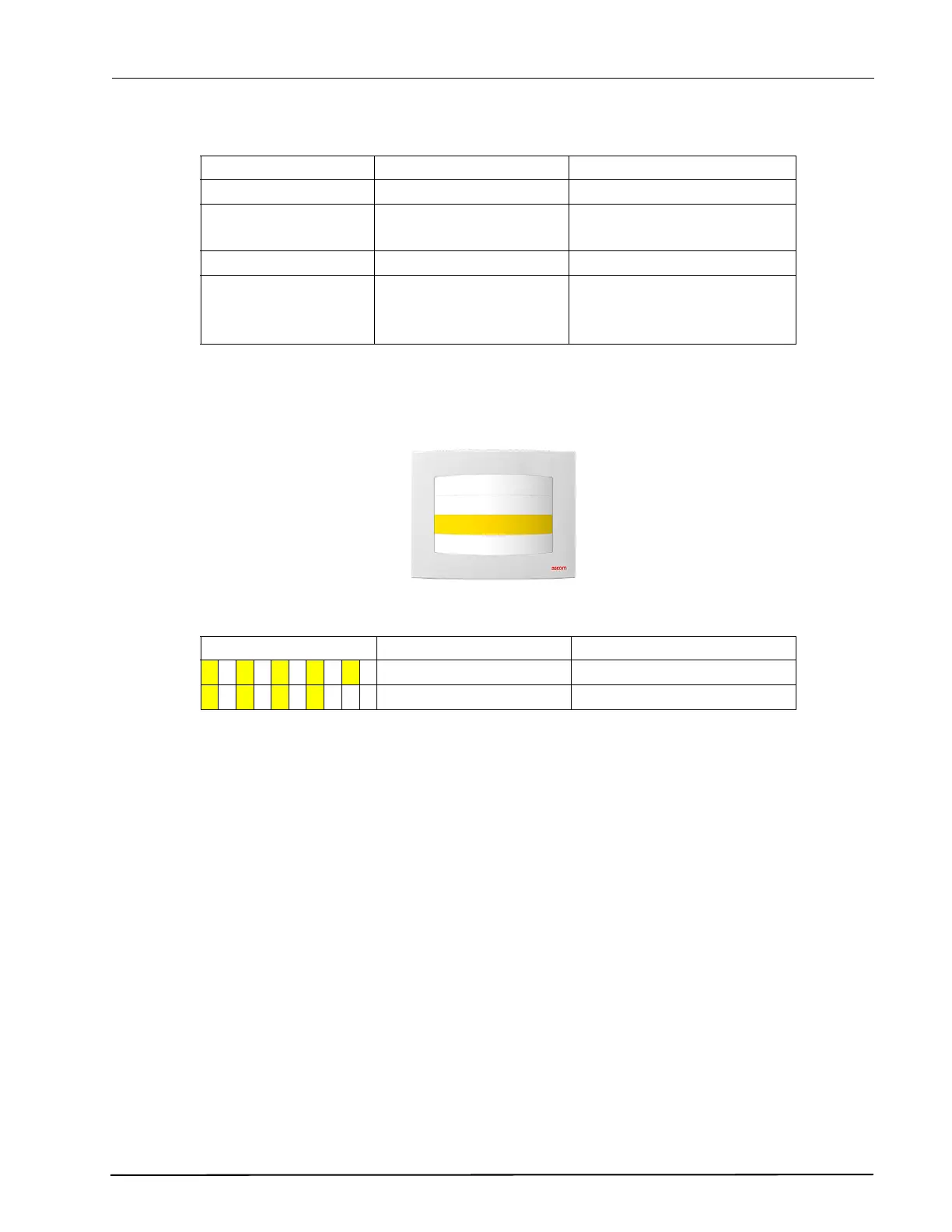

Figure 24. Fault indications on the NIRC3 yellow lamp
NIRC3 - Status color Status Remarks
Steady blue Normal operation
Steady orange Starting-up
for about 22 seconds after
power on or reboot.
Fast blue flashing Application start-up
Steady orange Image installation mode
The NIRC3 will end up in image
installation mode after 4
unsuccessful boot attempts
Fault - yellow LED Status Remarks
LAN failure
Peripheral lost
