Installation Guide
teleCARE IP
Remove the NUWBM3 from the Spacer

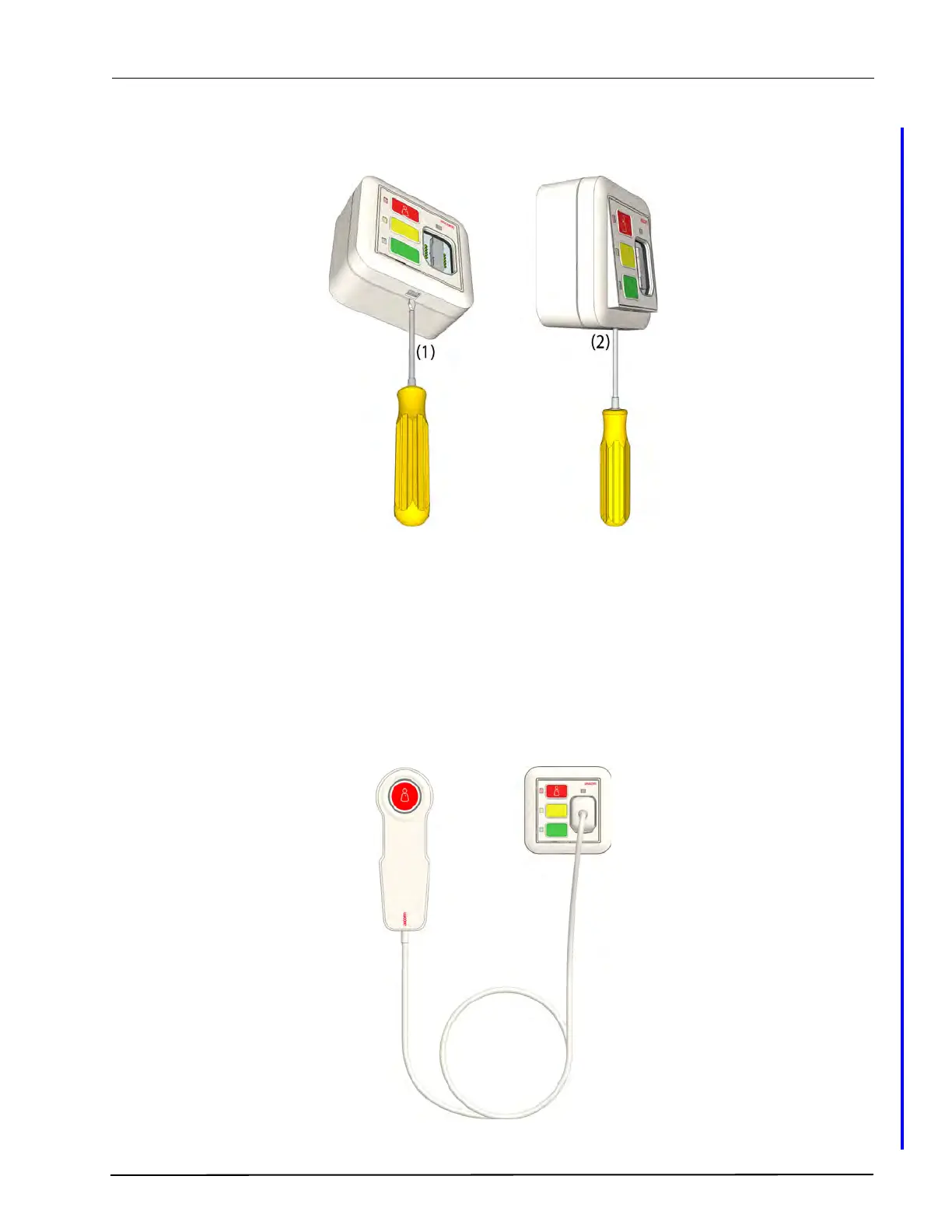

Figure 198. Remove the NUWBM3 from the spacer
To remove the NUWBM3 from a spacer, for example to change the batteries:
(1) Insert a flat blade screwdriver into the bottom of the frame
(2) Gently push the screwdriver upwards until the NUWBM3 is released from the metal
adapter.
NUHS1B Handset Connection
The Ascom SafeConnect socket is used for connecting the NUHS1B 1-button handset with handset
disconnect alarm functionality. 3, 7 and 14 button handsets are not supported.
Figure 199. NUHS1B handset connected to the NUWBM3
