The four screws should be tightened carefully so that just enough pressure is applied on the gasket to
compress it evenly all around between the backplate and the wall surface.

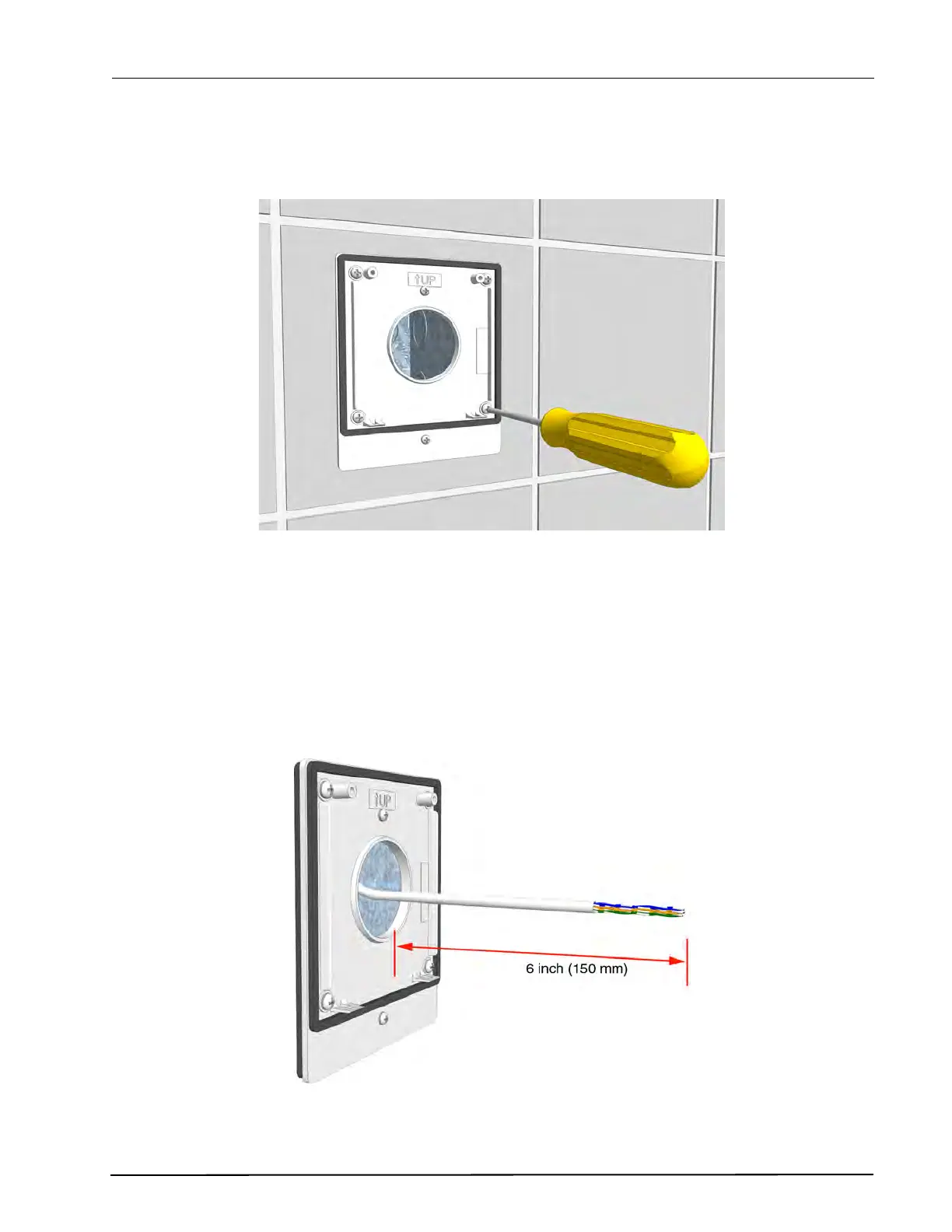

Figure 117. Fixing the backplate to the wall
Caution: Do not excessively tighten the fixing screws as this will distort the backplate and the
foam gasket resulting in an ineffective waterproof seal.
6.12.7 Preparing the Cable for the Pull Cord Module
After fixing the backplate to the back box, pull the cable through. It is important to ensure that a
minimum of 6in (15cm) of free cable is pulled out of the back box where teleCARE pull cord switch
module is to be installed.
Figure 118. Preparing the cable for the pull cord module
