TD 93021US
17 July 2017 / Ver. PF3 43
Installation Guide
teleCARE IP
5.8 Corridor Lamp (NICL2)
The room controller (NIRC3) can support four corridor lamps. Each Corridor Lamp is connected to one of
the room buses of the Room Controller and it always has the fixed address 5.

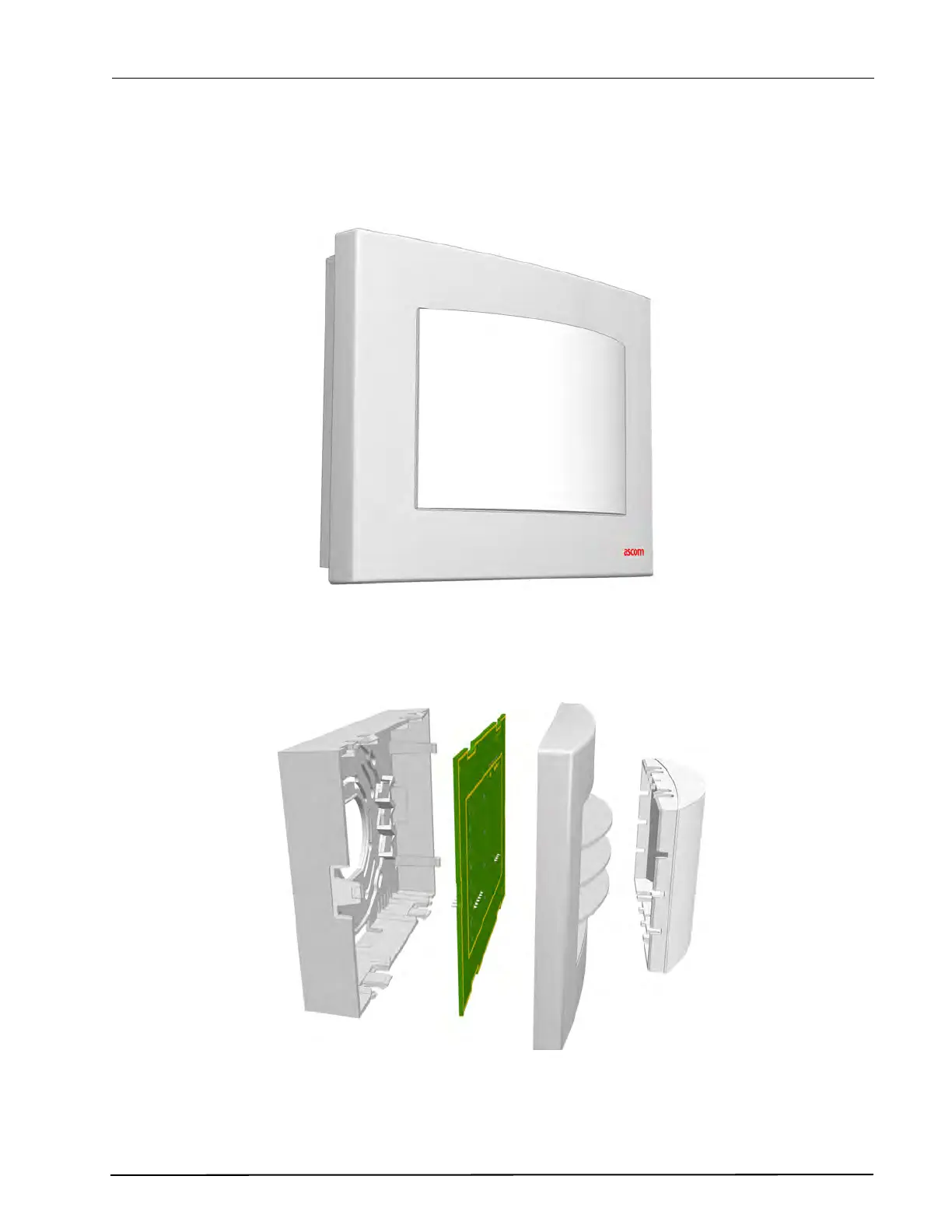

Figure 52. The teleCARE IP corridor lamp
The Corridor Lamp consists of a back box, a printed circuit module, a cover plate, and translucent dome
cover that can accept up to four LED boards, as shown in the following illustration:
Figure 53. Corridor lamp (NICL2) parts
