TD 93021US
17 July 2017 / Ver. PF3 161
Installation Guide
teleCARE IP
9.2 2-Bed Room with Passive Toilet Cancel and Passive Pull Cord Peripherals
The following installation of a teleCARE IP system consists of one room controller with integrated corridor
lamp (NIRC3) to which the peripherals are connected. The room controller offers four room buses which
connect the peripherals to the room controller
The example shown in the Illustration below is a 3-bed room with a toilet and shower. Each bed is
equipped with a bedside module, and a handset.
Passive peripherals are used for the toilet and shower. These peripherals are connected to a passive bus
from the door side module.

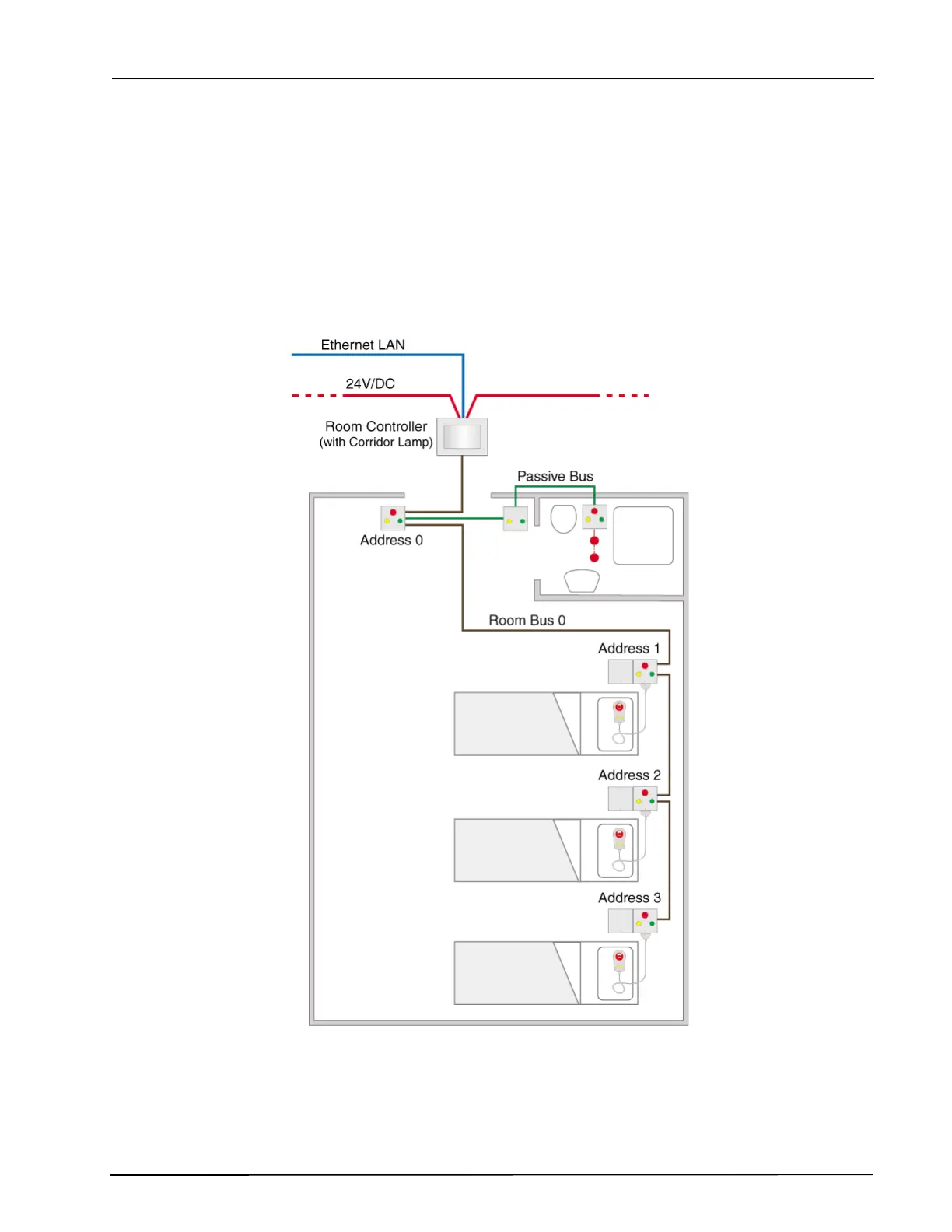

Figure 175. Typical 2-bed room with passive toilet and shower peripherals
