DRAFT
TD 93021US
17 July 2017 / Ver. PF3 165
Installation Guide
teleCARE IP
NUUTX Inputs
The NUUTX has two inputs that can be used to interface external alerts coming from a wide variety of
detectors. For example:
Fire detectors
Window/door open detector
Low pressure switches to generate an alert from a resident
•Bed exit sensor
Chair sensor
Alerts from the building management system

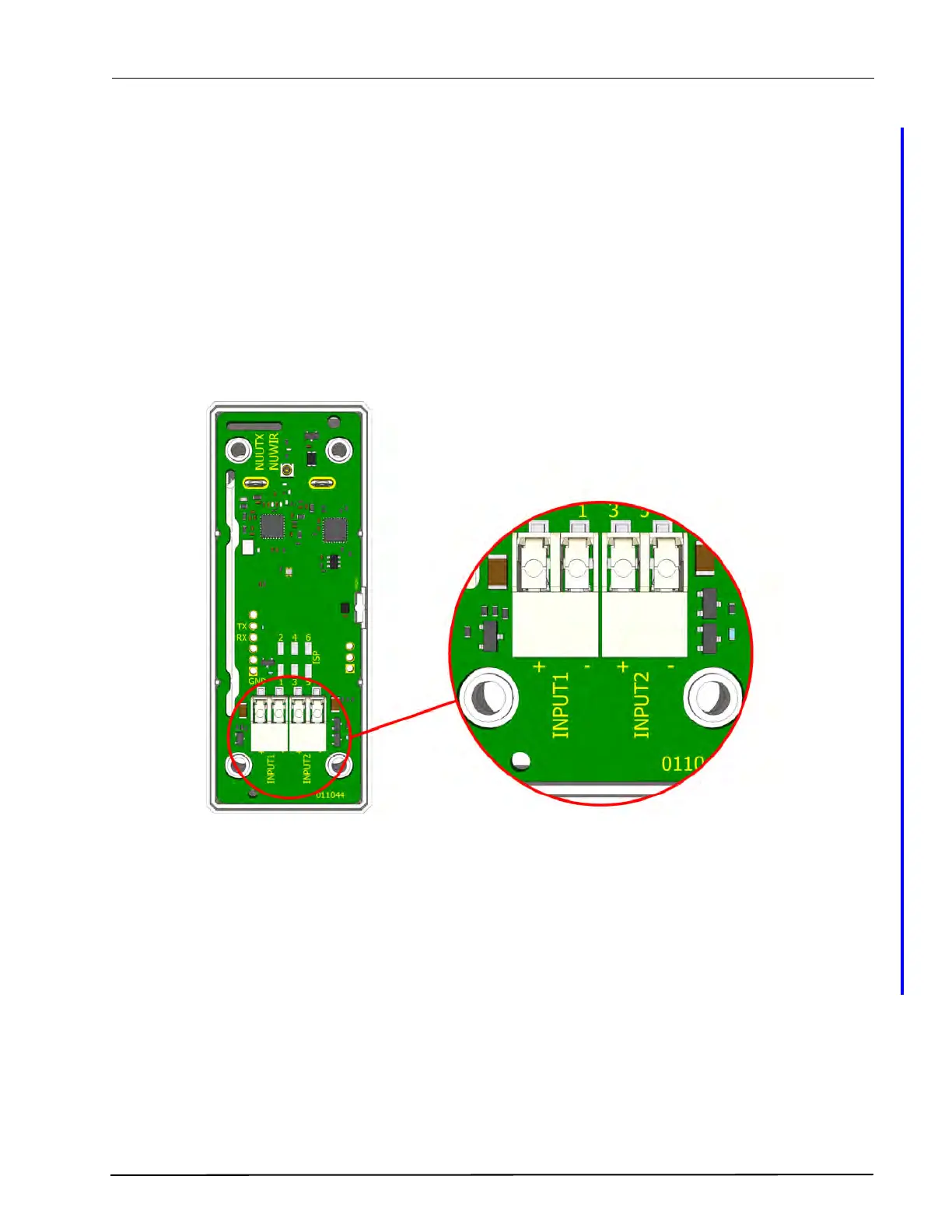

Figure 216. NUUTX inputs
The NUUTX features two independent inputs, supporting:
Normally open (with line monitoring) and normally closed contacts
Flashing contacts from 1 Hz
A DC voltage from 10VDC to 30VDC
