TD 93021US
17 July 2017 / Ver. PF3 83
Installation Guide
teleCARE IP
on page 60).

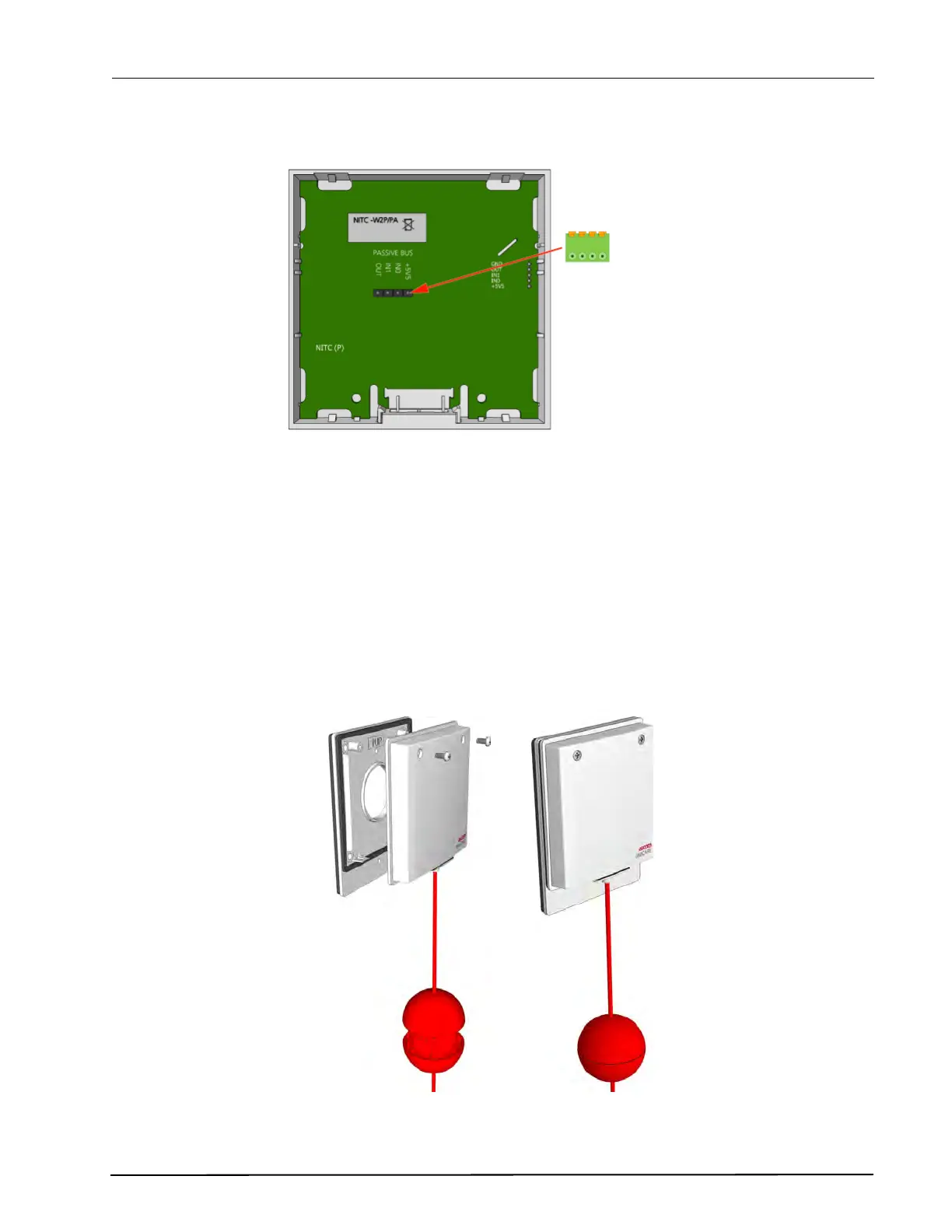

Figure 110. Passive toilet cancel module electrical connections
Note: The 4-pole connector terminal for the passive bus is not supplied with the switch
module. It is available as an accessory and must be ordered separately.
6.12 Pull Cord Module (NIPC2) Active and Passive
The NIPC2 Pull Cord Modules are designed for use in the teleCARE IP system. They are IP44 splash proof
and therefore suitable for use in rooms with showers, baths and in similar wet areas. They are available as
an “active” module and a “passive” module.
The NIPC2 has a pull cord of length 79 in. (2 m) with two plastic balls. The top ball acts as a safety break
by splitting in half when the cord is pulled with excessive force.
Figure 111. NIPC2 Pull cord module (exploded/assembled)
4-Pole
Connector
for the
Passive Bus
