TD 93021US
17 July 2017 / Ver. PF3 148
Installation Guide
teleCARE IP
NUREP - NIRC3 Interconnection
Wireless gateway NUREP - NIRC3 Interconnection using a USB to micro USB cable (Article number
660464).

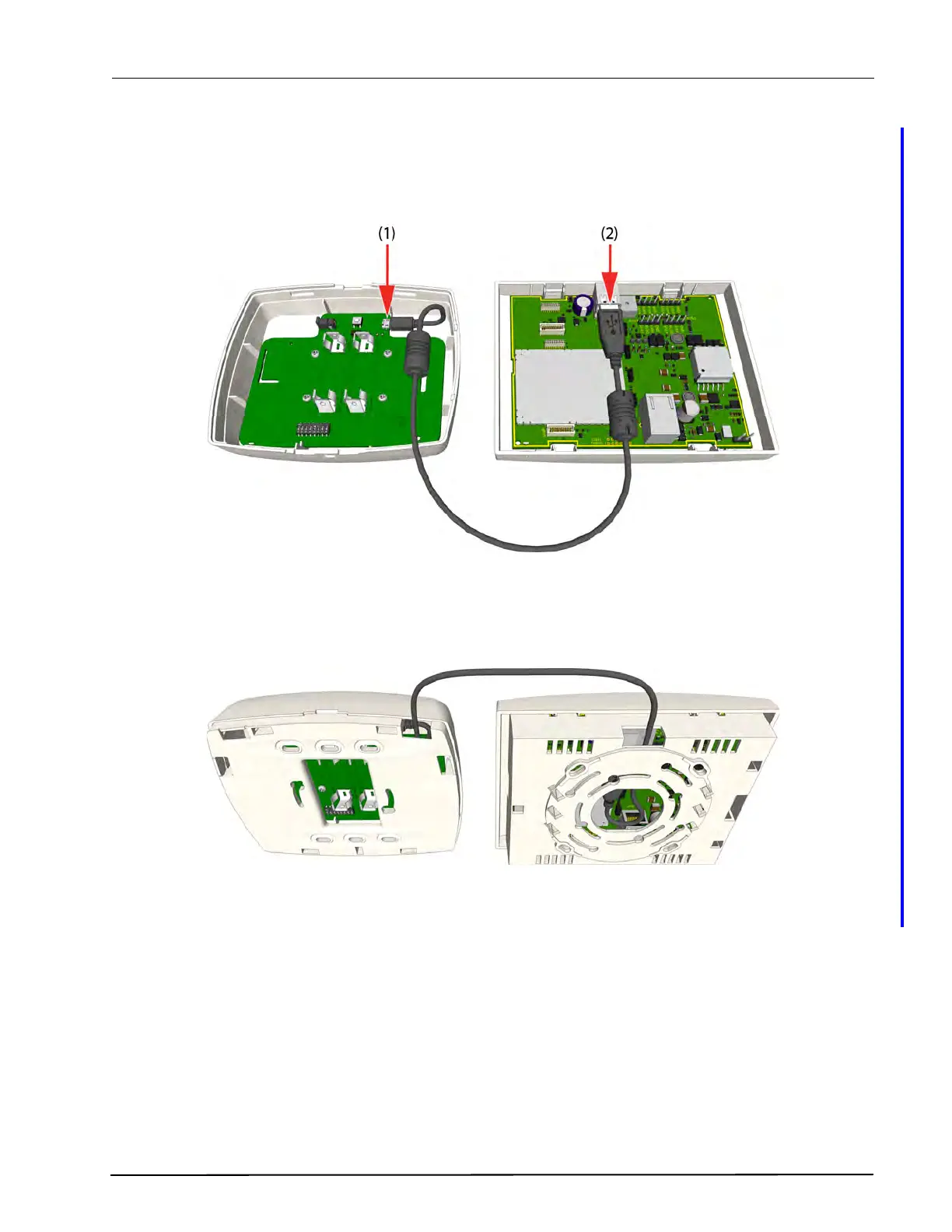

Figure 189. USB connection between NIRC3 and NUREP
(1) Plug the micro USB connector into the socket on the wireless repeater NUREP.
(2) plug the USB connector into the top slot of the USB 2.0 socket on the NIRC3
Figure 190. Example of the USB connection from NIRC3 to NUREP
Use the cutouts on top of both spacers to guide the USB cable from the NIRC3 to the NUREP.
