TD 93021US
17 July 2017 / Ver
. PF3
64
Installation Guide
teleCARE IP
6.4.7
Mounting the Switch Module to the Surface Mou
nting Spacer
T
o mount the switch module onto the spacer
, place the
lower edge of the switch module on the two
lower snap
fasteners of the s
pacer (1). Next place t
he switch module on t
o the two top fasten
ers (2) and
press the switch module
so that
it snaps closed
on the spacer
.

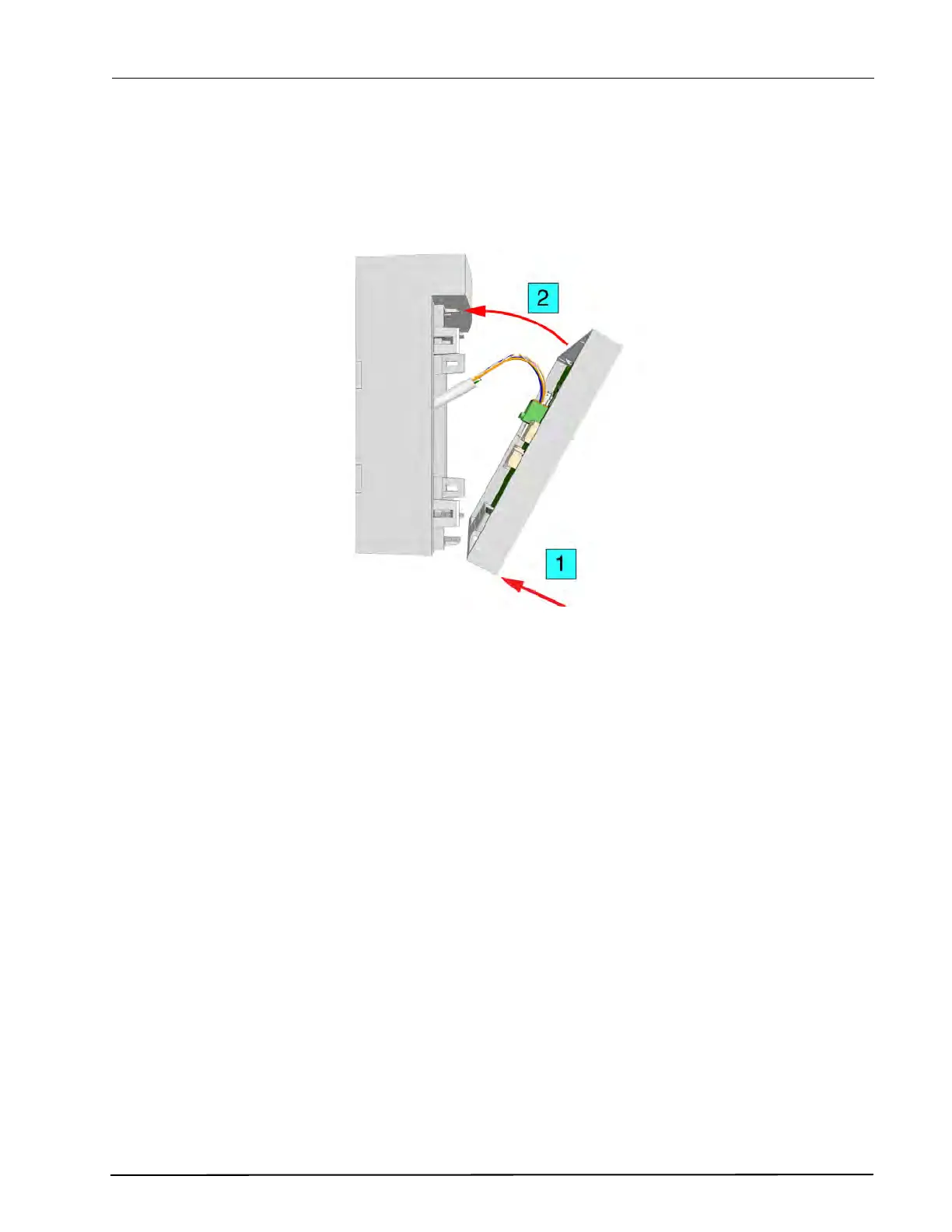

Figure
83. Mounting the switch module on the spacer
68
