TD 93021US
17 July 2017 / Ver. PF3 63
Installation Guide
teleCARE IP

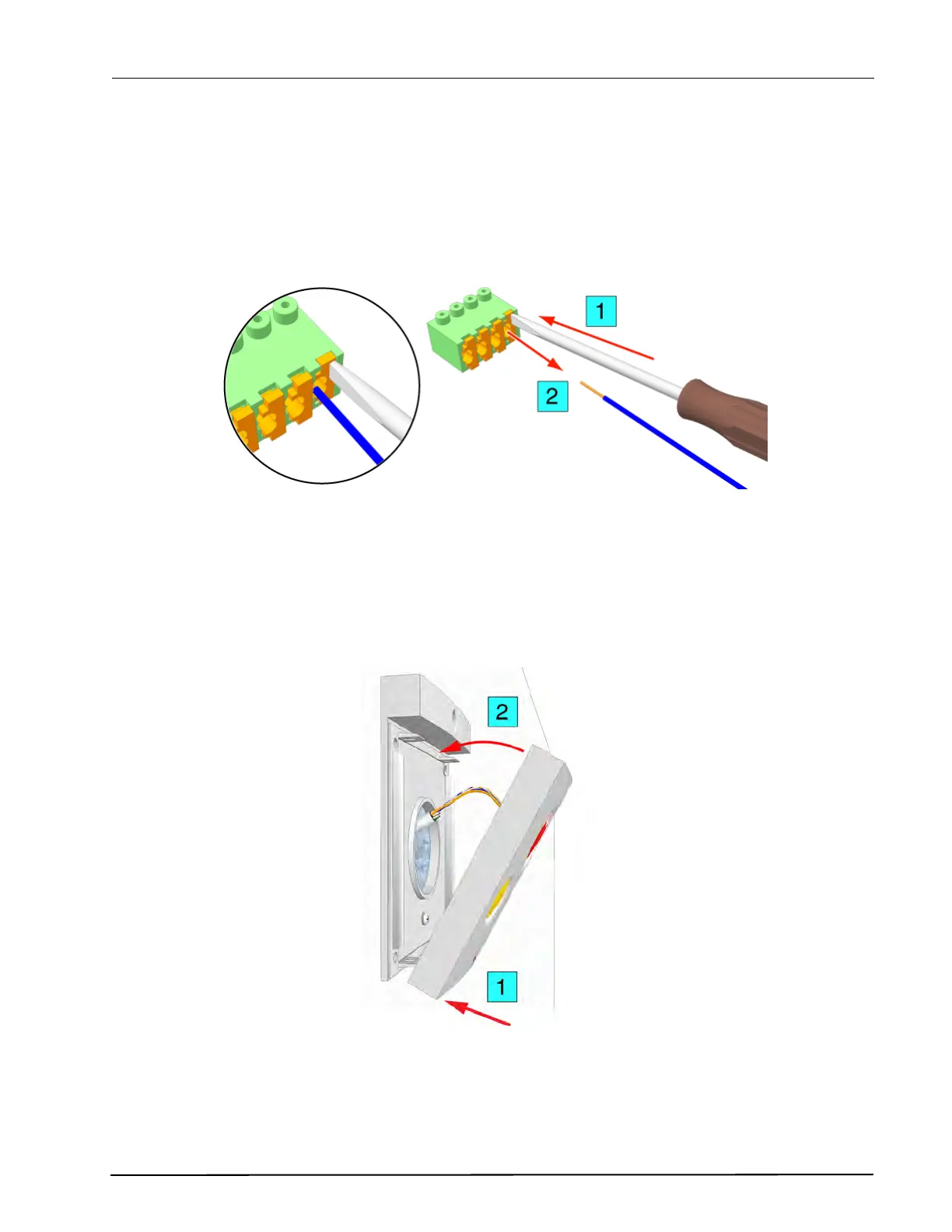

6.4.5 Disconnecting a Wire from the Connector Terminal
First carefully place the point of a small screw driver (point approximately 0.10in (2.5mm) wide on the
relevant orange colored release key of the connection terminals and press the key in firmly to open the
spring-cage connector (1). With the release key pressed in pull the wire from the terminal (2) then remove
the screw driver.
Figure 81. Removing a wire from a connection point
6.4.6 Mounting the Switch Module to the Backplate
To mount the switch module onto the backplate or spacer, after connecting the switch module place the
lower edge of the switch module on the two lower snap fasteners of the backplate (1). Next place the
switch module on to the two top fasteners (2) and press the switch module firmly so that it snaps closed
on the backplate.
Figure 82. Mounting the switch module on the back plate
