DRAFT
TD 93021US
17 July 2017 / Ver
. PF3
145
Installation Guide
teleCARE IP
8.7.2
Outdoor Box
Wireless Repeaters can be mounted outd
oors using a suitable weatherproof en
closure that meets local
electrical code.
An outdoor box protects the
repeater
from the outdoo
r elements, fo
r ex
ample at a campus style
facility
or when outdoor co
verage is requir
ed to capture calls fr
om resident
s when outside.

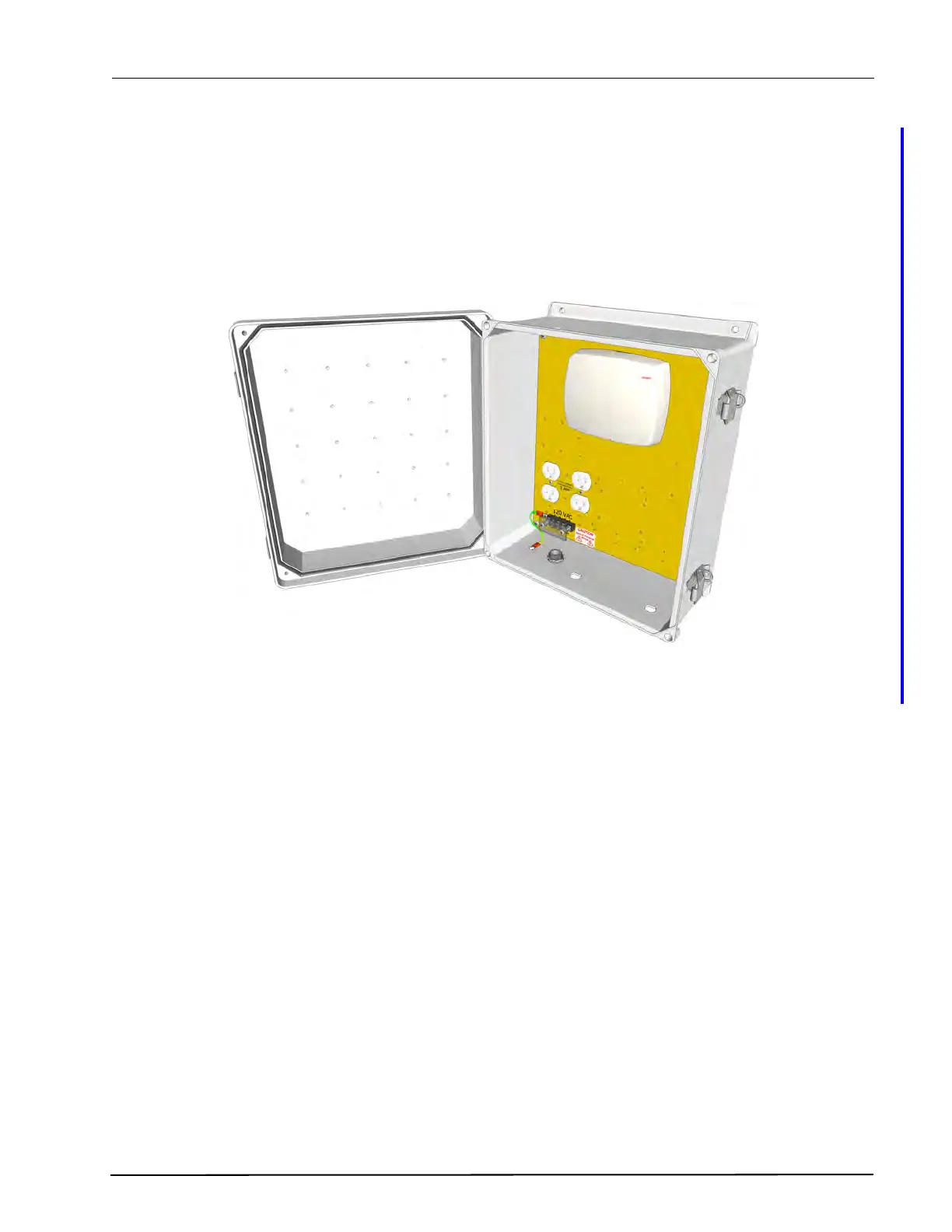

An example of an o
utdoor box is shown below
.
Figure 186. Example
of an outdoo
r box with repeate
r
.
149
151
